Trend IQ5 Advanced Controller is the latest in a line of integrated controllers that enables digital transformation of legacy buildings to smart spaces, easily and quickly.
Trend IQ5 Advanced Controller are able to integrate any existing building hardware and also accommodating future upgrades. With the Trend IQ5, the series now enables highly cybersecure demand-led energy management, that upgrades any building to smart operations.
Trend IQ5 adds to the resilience of your critical infrastructure with a prioritized deterministic control engine and upgrades existing Trend IQ™1’s, IQ™2’s, IQ™3’s or IQ™4’s systems without the need to replace I/O modules. In addition the IQ5 delivers advanced cyber security and tier-3 architecture with cost effective long distance T1L communication, for unprecedented scalability.

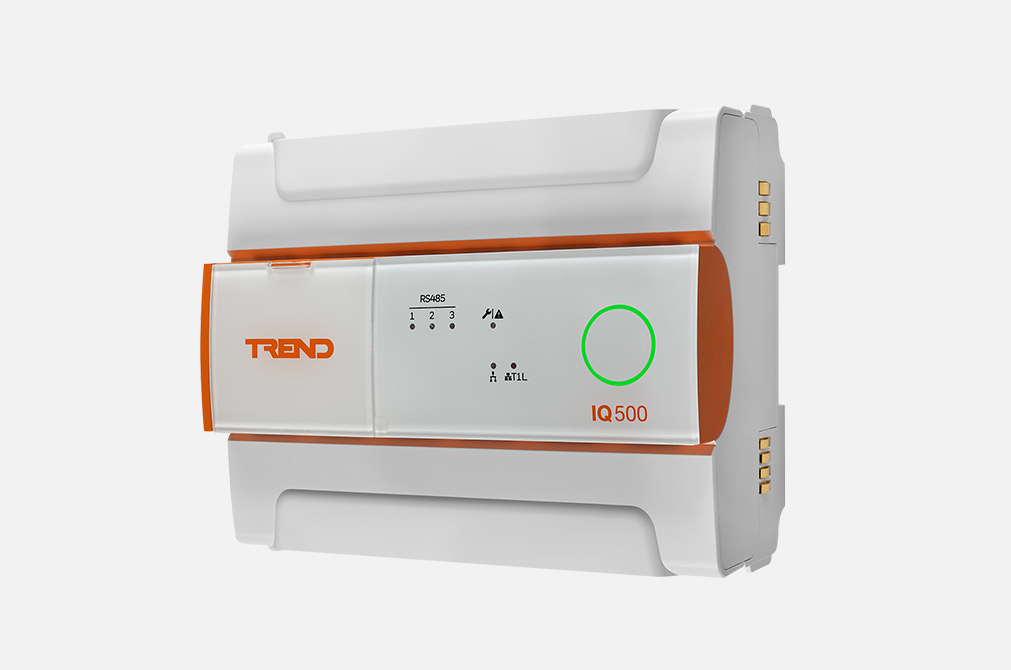

The IQ500 Plant & Integration Controller provides a secure and versatile control platform for building and energy management systems. With four onboard Ethernet ports and three RS-485 ports, the IQ500 Plant & Integration Controller not only enables the creation of a powerful Trend network but provides the ability to interface with a wide range of third party devices using BACnet, Modbus, M-Bus, MSTP and much more.
The IQ500 Plant & Integration Controller integrates with the latest IQ5-IO input/output modules over a high-speed T1L bus. A separate bus is also provided for use with IO modules from the IQ4 and XCITE ranges. Flexible licensing options allow the IQ500 Plant & Integration Controller's functionality and number of IO channels to be easily configured for your required application.

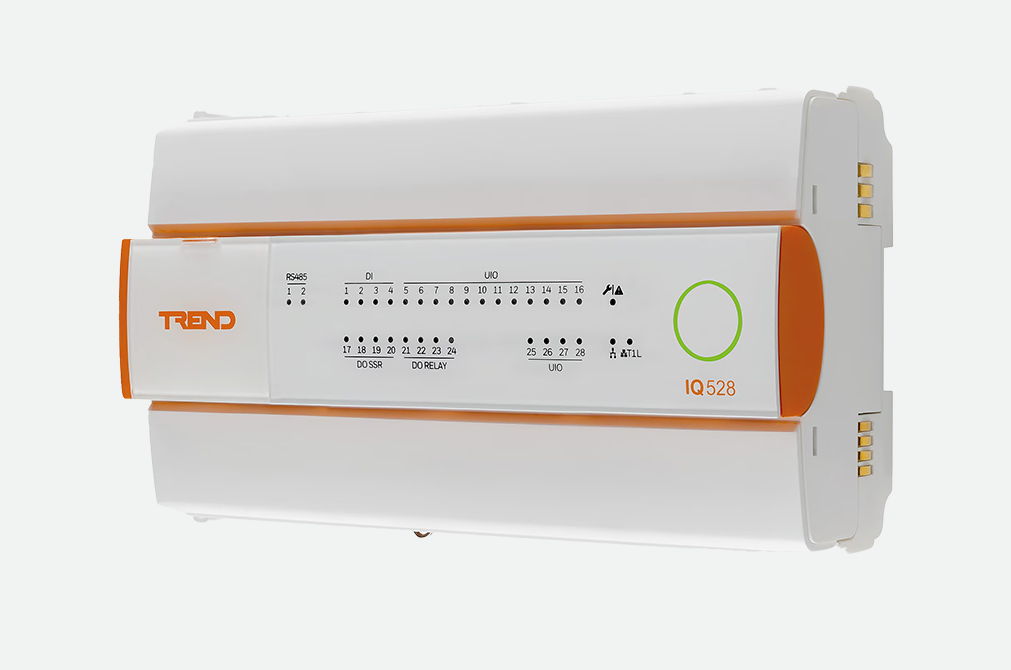

The IQ528 Equipment Controller provides a secure and versatile control platform for building and energy management systems. With two onboard Ethernet ports and two RS-485 ports, the IQ528 Equipment Controller not only enables the creation of a powerful Trend network but provides the ability to interface with a wide range of third party devices using BACnet, Modbus, M-Bus, MSTP and much more.
The IQ528 Equipment Controller integrates with the latest IQ5-IO input/output modules over a high-speed T1L bus. Flexible licensing options allow the IQ528 Equipment Controller's functionality and number of IO channels to be easily configured for your required application.

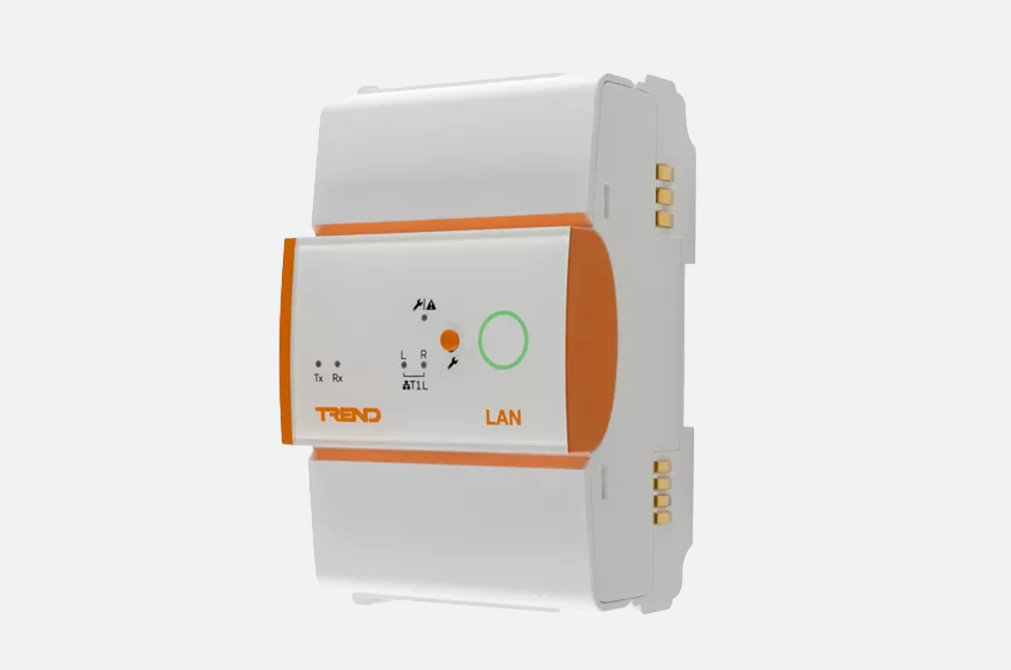

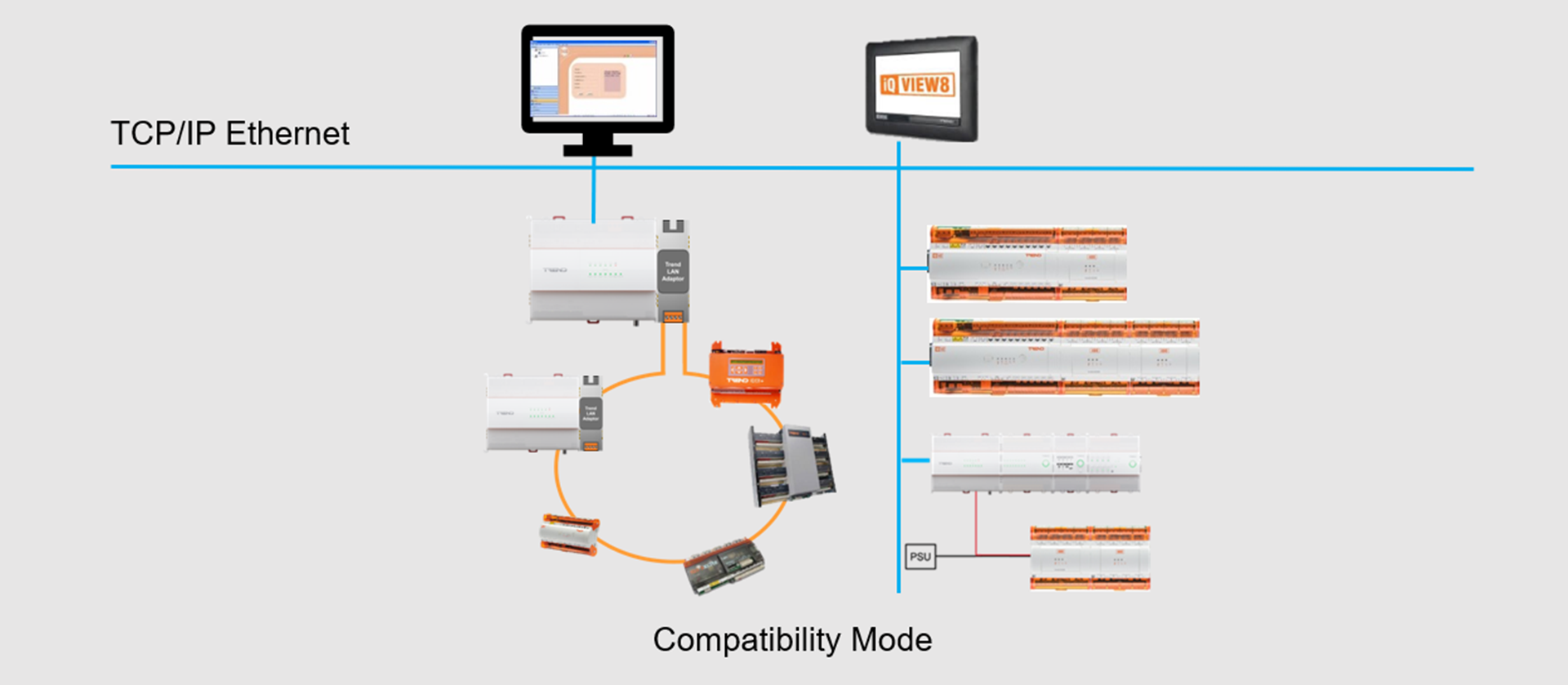

The IQ5 LAN Adaptor allows an IQ5 controller (configured for compatibility mode) to communicate in Trend current loop LAN or internetwork. The adapter connects to the controller via the T1L bus, enabling it to be conveniently installed alongside or remote from the controller or other T1L devices such as IQ5-IO modules. Pluggable screw terminal connectors are provided to suit either 2-wire or 4-wire current loop wiring configurations.
It features a secure high-speed T1L bus connection to the controller and comes in a DIN rail–mountable, DIN 19 size 2 enclosure for easy integration. The adaptor is powered directly from the controller’s T1L bus or a separate PSU, ensuring reliable operation.

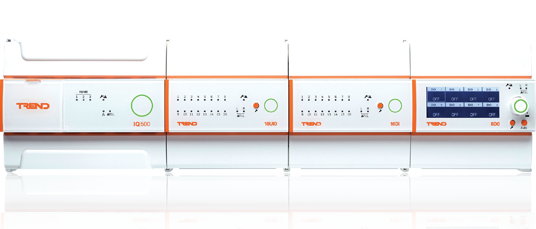

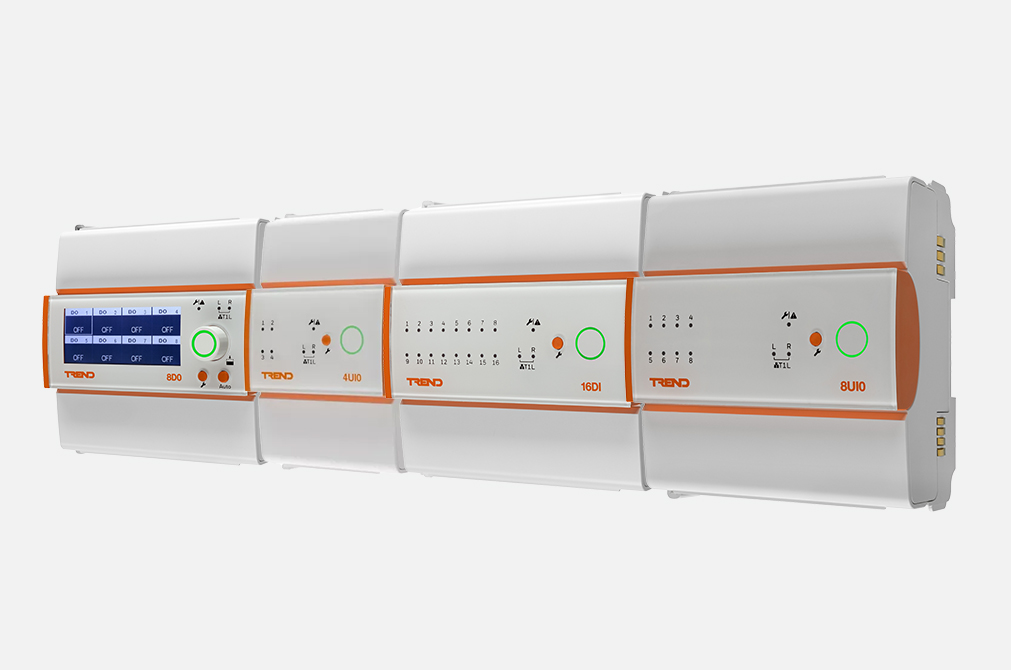

The IQ®5-IO range of I/O expansion modules are designed for use with the IQ500 and IQ528 controllers, to provide input and output channel connection points.
A comprehensive choice of I/O types is available including universal inputs/outputs (UIO), digital inputs (DI), digital/relay outputs (DO). ‘Hand-off -auto’ variants (8DO-HOA, 8UIO-HOA) are also available, offering manual override of module outputs.
Integral I/O bus connectors allow easy and convenient ‘side-by-side’ module installation or, by using cable adapters, modules can be installed up to 300
meters apart.
IQ5 protects previous infrastructure investment, by seamlessly integrating with existing systems. Its flexible architecture enables easy integration of future innovations and new generations of controls.
The flexibility to adapt to existing and upcoming building automation A seamless upgrade to smart control for both new and legacy buildings that future-proofs them for years to come.
Integrated building automation that enables cybersecure data-driven decision making and demand-led energy management.
