Hi-res reliable
recording
High-quality recording performance and user-friendly operation – perfect for small-medium scale applications

ANALOGUE AHD DVRs

Honeywell’s series of 3 x 1080P DVRs deliver high-resolution recording images for small-to-medium scale applications. With outstanding 1080P resolution, multi-channel playback and compatibility with AHD and analogue cameras, these DVRs consistently optimise recording quality and provide outstanding video performance year after year.

PRODUCT OFFERINGS

4/8/16 Channel 1080P AHD Digital Video Recorder
Powerful functionalities and user-friendly operational interface enable users to simultaneously live view, record, playback, back up and remotely control the system. Bundled with CMS software which provides rich functions such as video management, user management, video output, etc.

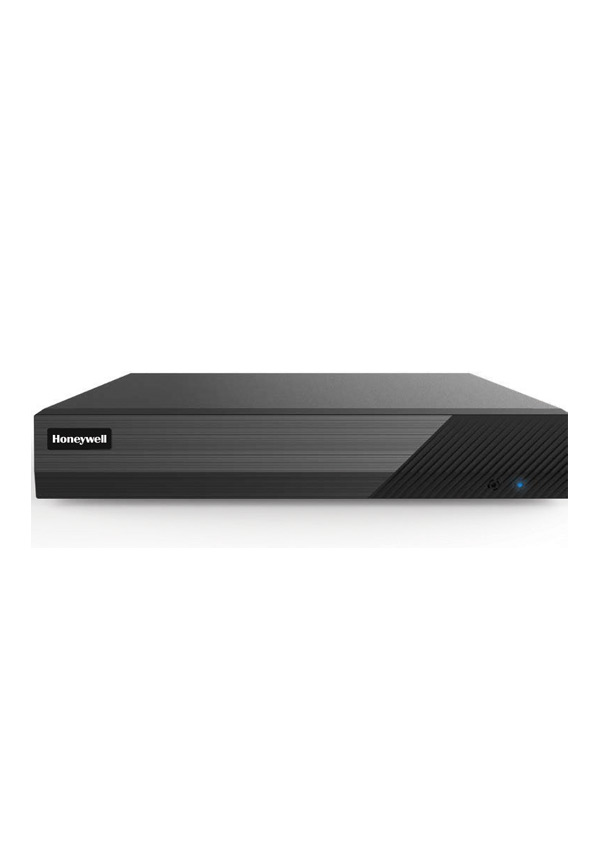

HA-DVR-2104-L

4-channel 2MP AHD Digital Video Recorder

Take full advantage of Honeywell’s AHD recorder technology for high-def (2MP) images over your existing coax infrastructure – with the HA-DVR-2104-L 4-channel DVR. This new addition to the Honeywell AHD DVR family uses over-coaxial cable and analogue HD video transmission standard for long-distance HD transmission at lower cost. It also offers dynamic, accessible monitoring and ‘smart’ search for a number of surveillance applications and use cases.

FEATURES
  • High decoding capability for full HD viewing
  • Compatible with AHD, CVBS and analogue cameras
  • H.265 video compression
  • Supports multi-format AHD/HQA/CVI/TVI/CVBS video input
  • Remote monitoring and surveillance with mobile app (Android/iOS)
  • Specifications
  • Ordering Info
  • Resources
Model No. HA-DVR-2104-L
SYSTEM
Main Processor Embedded Processor
Operating System Embedded LINUX
Analog Camera Input 4 Channel, BNC
VIDEO AND AUDIO
AHD Camera 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
RECORDING
Video Compression H.265 / H.264
Resolution 1080N, 720P, 960H, D1, CIF
Record Rate Main Stream: 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: CIF (1~15fps)
Video Bit Rate 32Kbps ~ 4096Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post- record: 10 ~ 300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
DISPLAY
Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720
Multi-screen Display 1/4
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
NETWORK
Ethernet 1 RJ-45 Port (100 Mbps)
Network Function HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP filter; PPPoE; DDNS; FTP; IP Search
Interoperability ONVIF Conformant
Max. User Access 128 users
Smart Phone iPhone, iPad, Android (phone and tablet)
VIDEO DETECTION AND ALARM
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, Video Loss, Tampering and Diagnosis
PLAYBACK AND BACKUP
Playback 1/4
Search Mode Time/Date; Alarm; Motion Detection; Exact Search (accurate to a second); Smart Search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next v, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
STORAGE
Internal HDD 1 SATA Port, up to 6TB capacity
AUXILIARY INTERFACE
USB 2 USB 2.0
RS485 1 Port, for PTZ Control
ELECTRICAL
Power Supply DC12V/1.5A
Power Consumption (without HDD) <10W
PHYSICAL
Dimension 260×236×48mm(10.2”×9.3”×1.9”)
Net Weight(without HDD) 0.9kg ( 2.0lb)
ENVIRONMENTAL
Operating Conditions -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
CERTIFICATIONS
Certifications BIS certified
Model No. HA-DVR-2104-L
HA-DVR-2104-L 4ch, 2MP DVR, 1 SATA, H.265
Documentation Size Release Date File Type Download
Datasheet 385.69 KB 07.12.2020 pdf Download
Software 44200 KB 07.12.2020 zip Download
