World-leading
acoustics
Premium technology backed by phenomenal design and unbeatable features for both indoor and outdoor use.

The ProZoe range of speakers deliver outstanding performance for a variety of sound and music applications. Plenty of audio goodness wrapped in a gorgeous package made from premium materials!

  • Premium Active Line Array Technology
  • Versatile cabinet for indoor or outdoor use
  • Software to maximise the built-in DSP engine
  • 32-bit DSP processor
  • Flexible hardware for ground stacking or flying
  • Bi-amplified enclosure

Product Offerings

Crisp and clear sound replication to blow you away
Professional-quality live performances need definitive technology from a world leader. The ProZoe series gives all this and more!

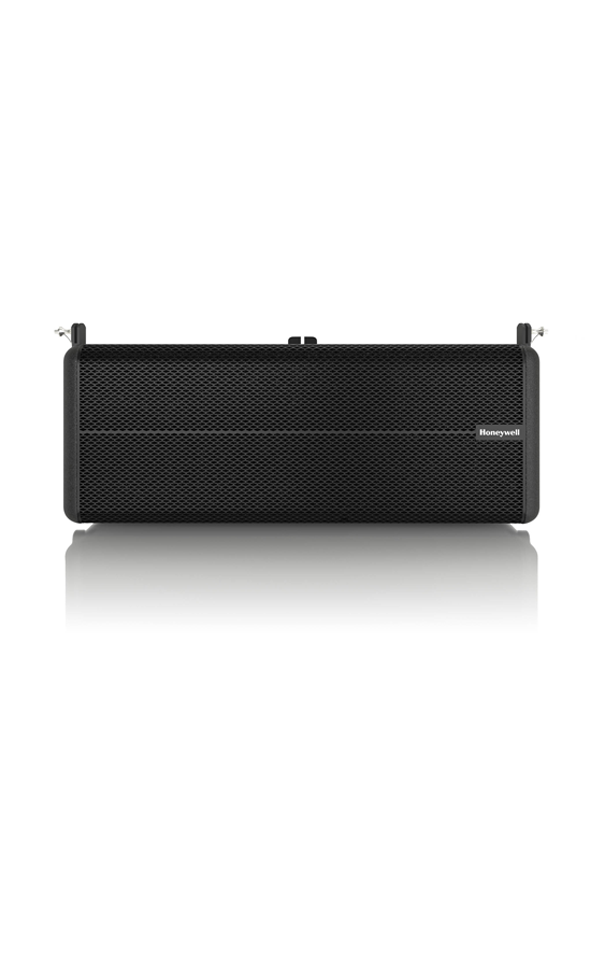

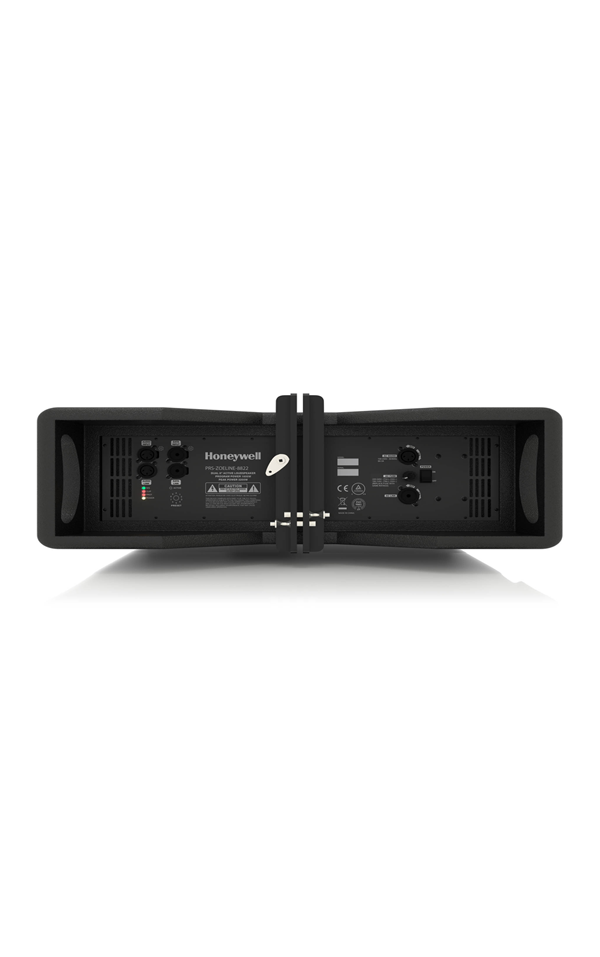

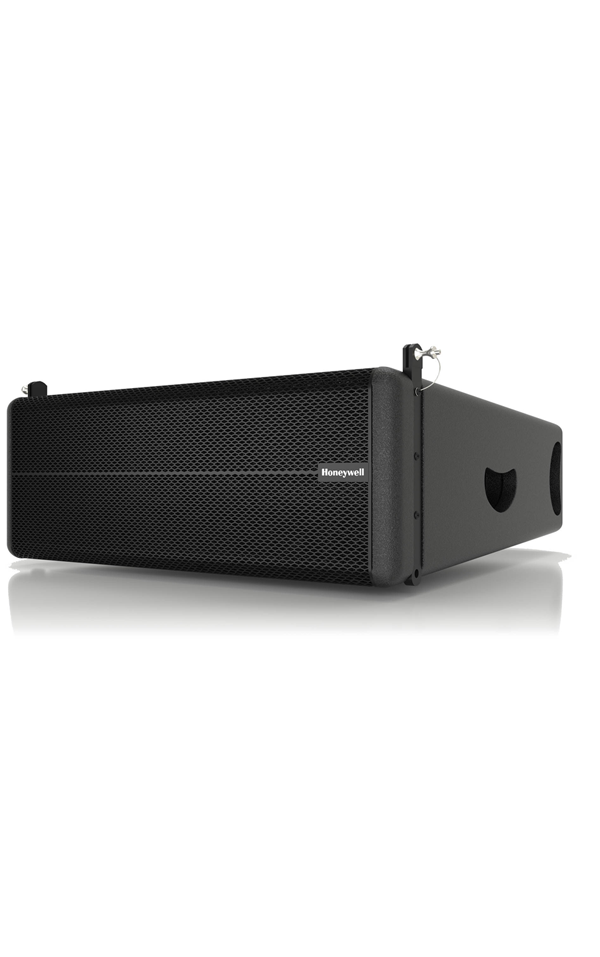

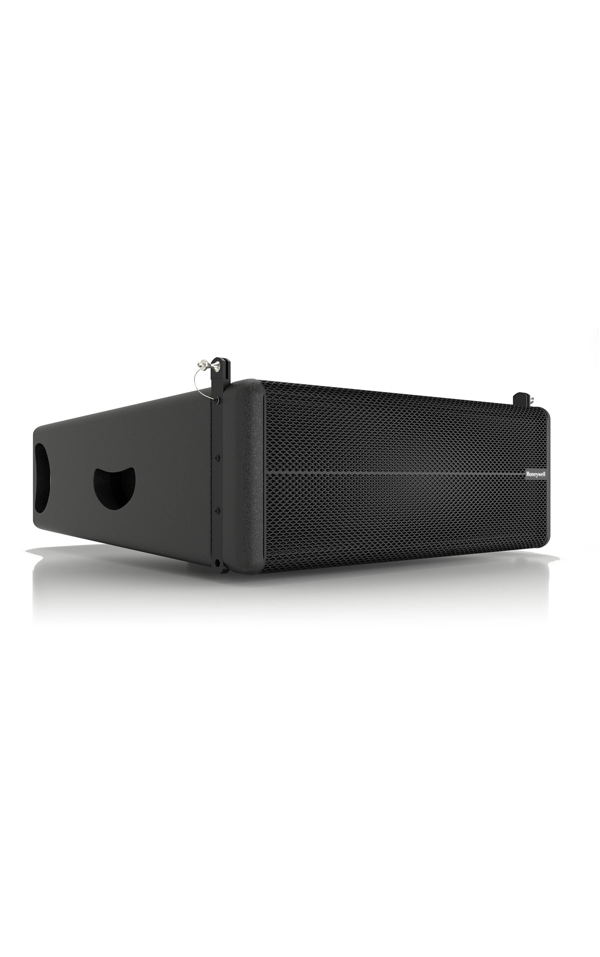

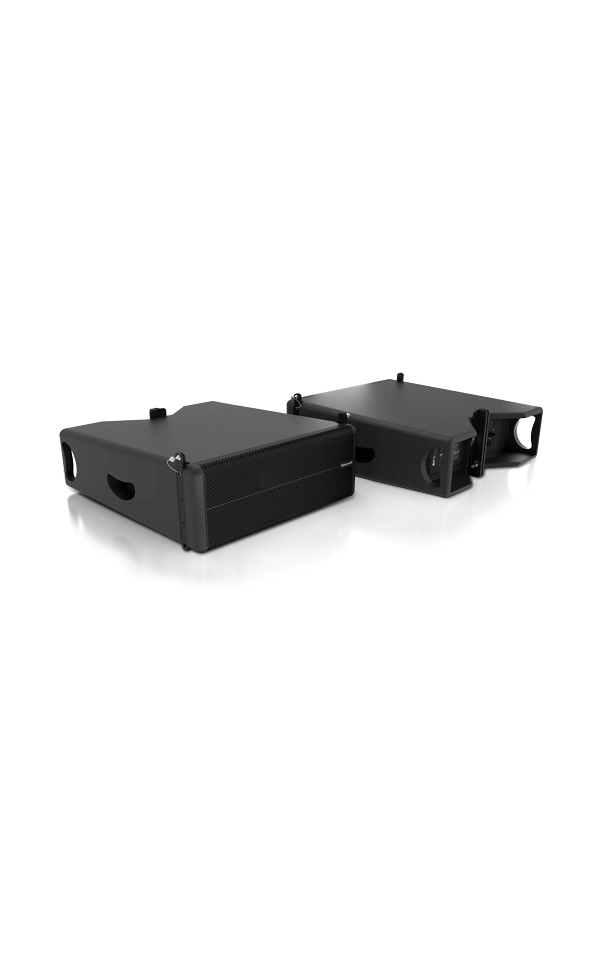

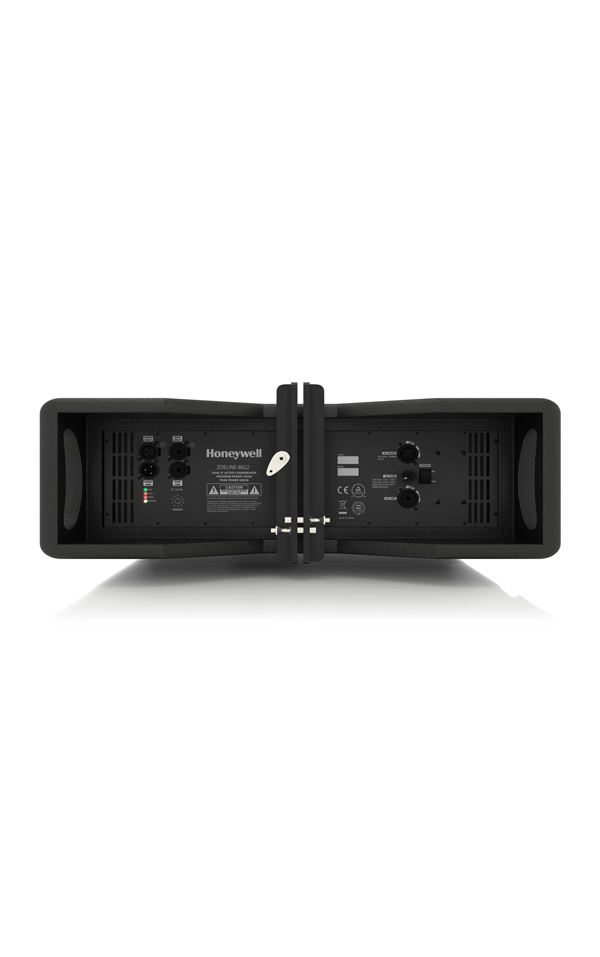

Zoeline-8822

2-way Full Range, Active Array Element

The Zoeline-8822 brings world-class technology to installations ranging from concert halls and auditoriums to musical theatres and even houses of worship. It features an 800-Watt continuous Class D power module, a speaker with 1.75” voice coil and 2 x 8” Neodymium MID woofer, and a built-in DSP processor.

FEATURES
  • 127 dB
    Max SPL @ 1m
  • 1600W/3200 W
    Program Power/ Peek Power
  • 70 Hz - 19 KHz
    Frequency Response( +/-3dB )
  • 110 / 10°
    Dispersion(-6dB)
    ( Horizontal / Vertical )
  • 254 x 635 x 457 mm
    Dimensions ( H x W x D )
  • 22.5 kg
    Net Weight
  • Specifications
  • Resources
Model No. Default
Mounting3-point Suspension, Horizontal Trapezoid 2 x 7.5°, 3 configuration styles (Small, Stack & Array)
System Type2-Way Full Range, Active array Element
Electronic ProtectionsThermal / Connected-Fan /Overload / Digital Lim / Compressor
Power SupplyAuto-Range 100V-120V/220V-240V 50H/60Hz
Enclosure Construction18mm Birch Plywood, Resistant Black Paint, 1.5T Metal Grille with Foam , Two handles on each side Water Resistant Coating
Dimensions (HXWXD)254 X 635 X 457mm
Net Weight22.5 Kg
Input ConnectorXLR In/ Link/ DSP Module with RJ45 Dante in & Link Cascading Connector
CoolingPassive Cooling + Inside Fan
AMP Power800W Continous, Bi-AMP(Class D-650W LF, Class AB-150W HF)1600W Program/ 3200W Peak
Speaker2 x 1” Neodymium Compression Driver, 1.75\Voice Coil, 2 x 8\ Neodymium MID Woofer water Resistant Coating with Wave Guide
MAX SPL @ 1m127 dB(Peak)
Crossover (MID-High)1.8 KHz
Dispersion(-6dB)110° Horizontal / 10° Vertical
Input ConnectorXLR In/ Link/ DSP Module with RJ45 Dante in & Link Cascading Connector
External Controls9 Preset EQ/ 1 Service Use / Power On with Green LED/ Clip/ SIG /PROT with LED
DSP Connector32 bit, 24bit/48KHz Audio Conversion AD/DA, Digital Volume Control
Mains ConnectorNeutrik PowerCON Connector in & Out, 16A UL & VDE & SEV
Frequency Response(+/-3dB)70Hz - 19KHz
Documentation Size Release Date File Type Download
Datasheet 2813.39 KB 06.11.2020 pdf Download
