A highly effective technology
tool for advanced
surveillance
Protect your premises with advanced intrusion detection where high-value asset monitoring is critical.

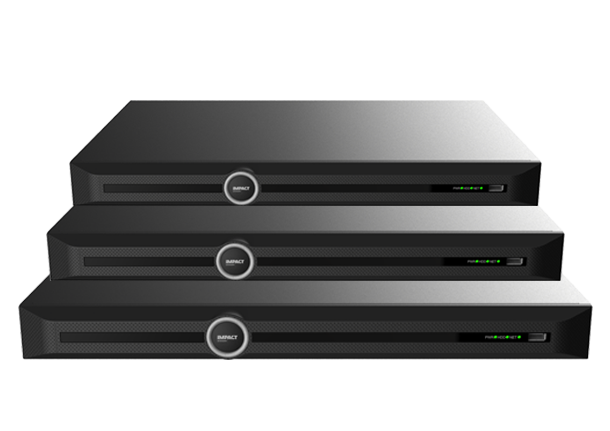

Impact IP series NVRs

Providing audio along with video streams, the IP NVRs deliver a better video surveillance experience with high-resolution images and reduced storage requirements. It is the high-clarity images and clear video streams that greatly help in the effective analysis of the video feed in the occurrence of an intrusion.

PRODUCT OFFERINGS

Cutting-edge imaging technology for better perimeter security
When image clarity is essential for high risk sites, get an advantage over intruders with high definition surveillance.

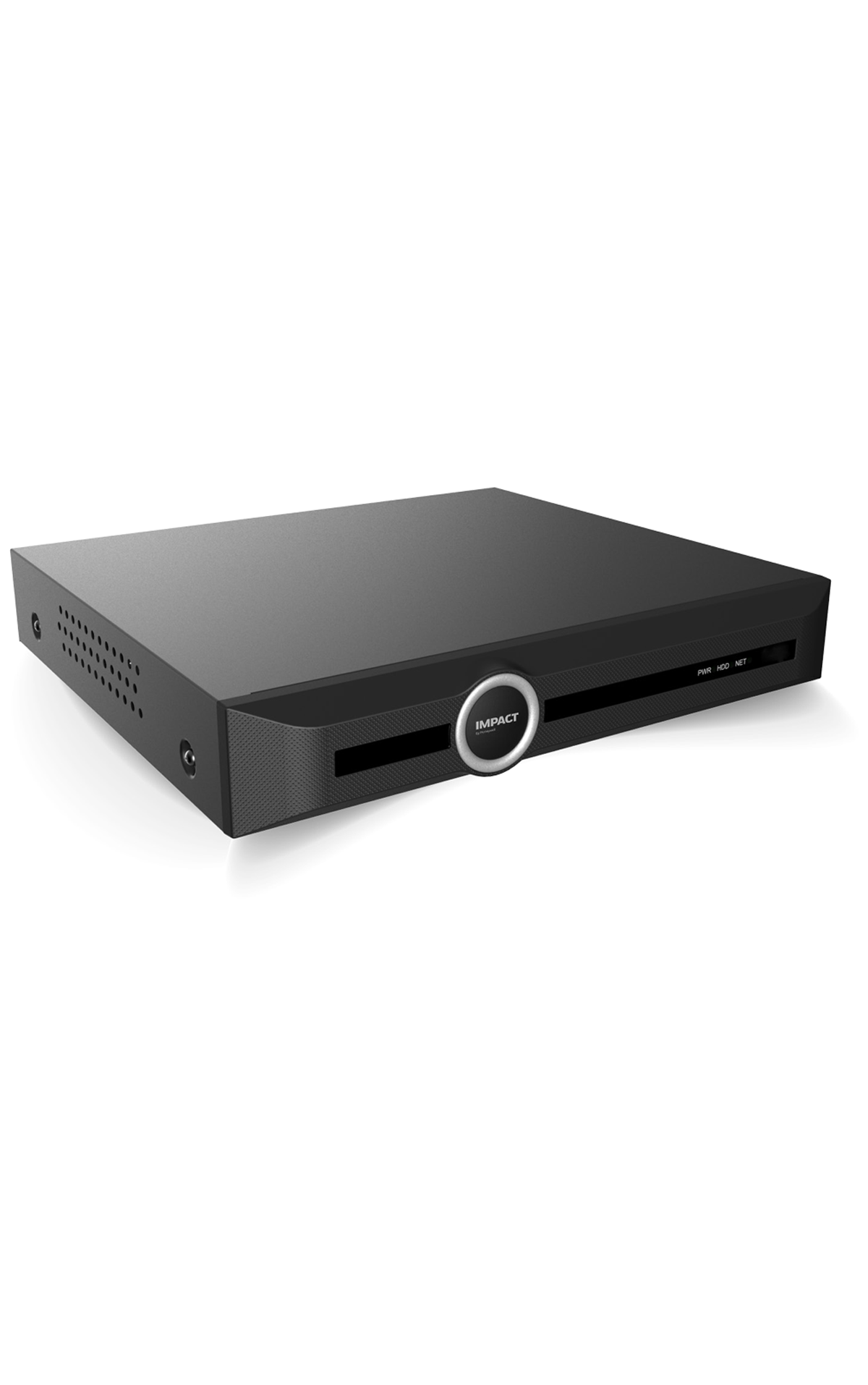

I-HNVR-1110

H.265 1HDD 10 Channel NVR

The new Impact series of Network Video Recorders (NVRs) is beneficial to customers who want a higher quality of video surveillance enhanced by HD and an advanced setup. This product can be used for video surveillance in banks, offices, manufacturing industries, warehouses, and parking lots - where image quality and clarity is a key priority. The smart features offered by the new Impact series of NVRs greatly help in the effective analysis of the video feed, while optimizing storage.

FEATURES
  • IH+265/H.265/H.264 video formats
  • Up to 10 channel input
  • Supports live view, storage, and playback of the connected camera at up to 8MP resolution
  • 1×RJ45 self-adaptive 10/100 Mbps network interface
  • HDMI and VGA simultaneous output
  • HDMI Video output at up to 4K (3840 × 2160) resolution
  • IH+265 compression effectively reduces the storage space and costs by up to 75%
  • Specifications
  • Ordering Info
  • Resources
Model No. I-HNVR-1110
INPUT
Video Input 10-ch
Max Resolution 8MP
Bandwidth Income 50Mbps; Outgoing 40Mbps
OUTPUT
HDMI/VGA Output HDMI 1-ch, 3840×2160,1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800
VGA 1-ch, 1920×1080, 1440×900, 1366×768, 1280×800, 1280×720, 1024×768
Screen Split 1/3/4/5/6/7/8/9/10
Audio Output 1x RCA
DECODING
Decoding Format IH+265/H.265/H.264
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability 1x8MP, 1x6MP, 1x5MP, 1x4MP, 1x3MP, 4x1080P, 8x720P, 10x4CIF
Synchronous Playback 1x8MP, 1x6MP, 1x5MP, 1x4MP, 1x3MP, 3x1080P, 4x720P
Records Encryption Yes
HARD DISK
SATA 1 SATA interface for 1 HDDs
Capacity Up to 10TB for each HDD
EXTERNAL INTERFACE
Network Interface 1xRJ45 self-adaptive 10/100 Mbps network interface
USB Interface 2xUSB 2.0
NETWORK
Protocol TCP/IP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, Telnet, RTMP
GENERAL
Web Version Web6
Language English
Operating Conditions -10°C~55°C, 10%~90% RH
Power Supply DC12V 3.33A
Consumption (without HDD) ≤10W (without HDD)
Chassis 1U
Dimensions 44x255x231mm, (1.78x10.04x9.09 inch)
Weight (without HDD) 0.8Kg (1.76lb)
Model No. I-HNVR-1110
I-HNVR-1110 10CH NVR with 1HDD Support
Documentation Size Release Date File Type Download
Datasheet 284.22 KB 22.06.2021 pdf Download
IH-VIEW 83000 KB 22.06.2021 zip Download
IH-Config Tool 63000 KB 22.06.2021 zip Download

One product, many applications
Banks
Offices
Parking lots
Warehouses
Manufacturing industries
