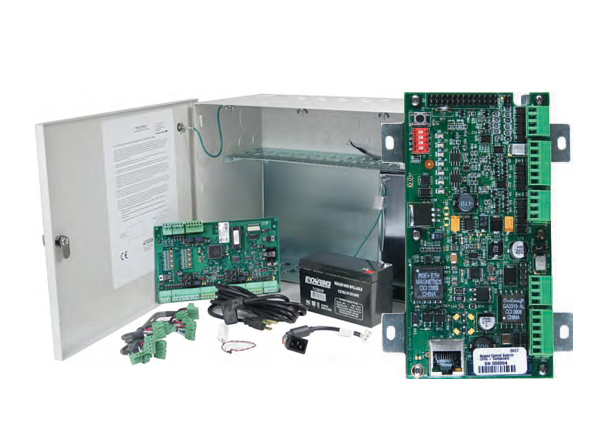

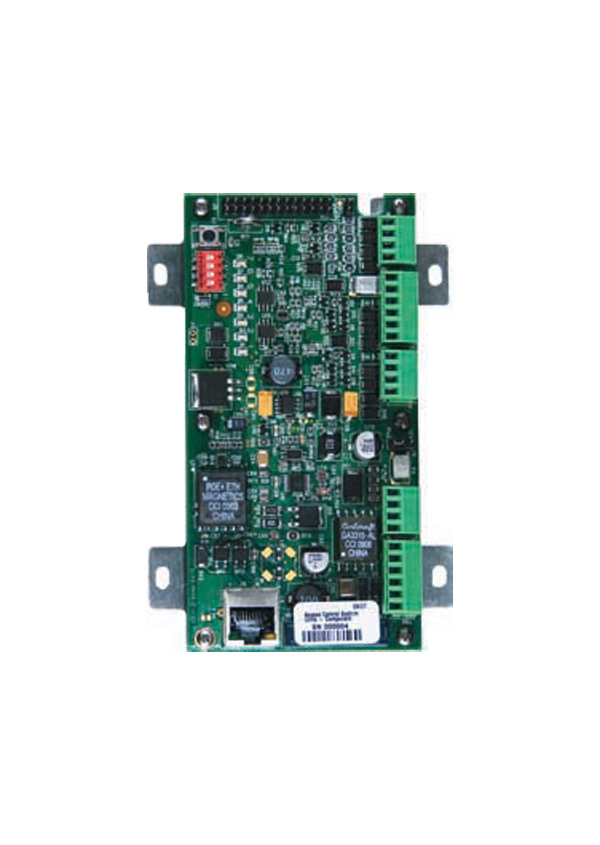

| Single Door POE Intelligent Controller and Reader Module |
| SPECIFICATIONS |
| Intelligent Controller | Reader Module |
|
| POWER INPUT |
PoE power input 12.95 W, compliant to IEEE 802.3af or 12 VDC ±10% 900 mA maximum power supply. Note: For UL installations, PoE-powered devices shall not be used. Power for these devices must be provided by a UL294 listed power limited source (12 VDC). |
| POWER OUTPUT |
| 12 VDC @ 650mA including reader and AUX output | 12 VDC @700mA including reader and AUX output |
|
| READER POWER INTERFACE |
PoE: 12 VDC±10% or local power supply (12 VDC) (PTC limited 150 mA max) |
| INPUTS |
| 2 general purpose programmable circuit type inputs with dedicated tamper | 4 programmable inputs with optional end-of-line resistor |
|
| OUTPUTS |
| 2 relay Form C, 2A @ 30 VDC reader | 2 programmable relays – Form-C, 5 Amp, 28 VDC |
|
| PORTS |
Two TTL reader ports or one 2-wire RS485 reader port capable of supporting two readers |
| KEYPAD |
Multiplexed with card data |
| LED |
TTL compatible |
| BUZZER |
Only with ‘one-wire’ LED |
| DIMENSIONS |
Without bracket: 5.5 W x 2.75 L x 0.96 H (140 mm x 70 mm x 24 mm) With bracket: 5.5 W x 3.63 L x 1.33 H (140 mm x 92 mm x 34 mm) |
| TEMPERATURE |
Operating: 32° to 171˚F (0° to 77°C) Storage: -67° to 185˚F (-55° to 85°C) |
| HUMIDITY |
10-95% RHNC |
| TECHNICAL FEATURES |
Connectivity Primary Port: 10/100 Ethernet |
| DOOR CONTROL |
| One physical barrier can be controlled using single or paired readers. Two reader ports: magnetic, Wiegand or RS485 (RS485 on one reader port capable of supporting two readers). Two supervised inputs, two relays. Diagnostic LEDs. Dedicated tamper input. | One physical barrier can be controlled using single or paired readers. Two reader ports: magnetic, Wiegand or RS485 (RS485 on one reader port capable of supporting two readers). Four supervised inputs, two relays. Diagnostic LEDs. |
|
| ACCESS CONTROL |
240,000 cardholders, 50,000 transaction buffer. 12 access levels per cardholder. 19 digit (64-bit) user ID and 15 digit PIN numbers maximum. |
| ACTIVATION/DEACTIVATION DATES |
If/then macro capability |
| CARD FORMATS |
8 active card formats per EP1501. PIV-II, CAC, TWIC card compatible. Anti-passback support nested area, hard, soft, or timed forgiveness. |
| ALARM MANAGEMENT |
Normally open/Normally closed, unsupervised, supervised. Standard or custom end-of-line resistances. |
| STANDARDS |
UL294 Recognized, CE Compliant, ROHS, FCC Part 15 Class A, NIST Certified Encryption |
