Zero pressurisation
damage
Protect water systems from supply over-pressure and reduce water consumption with Honeywell’s range of PRVs.

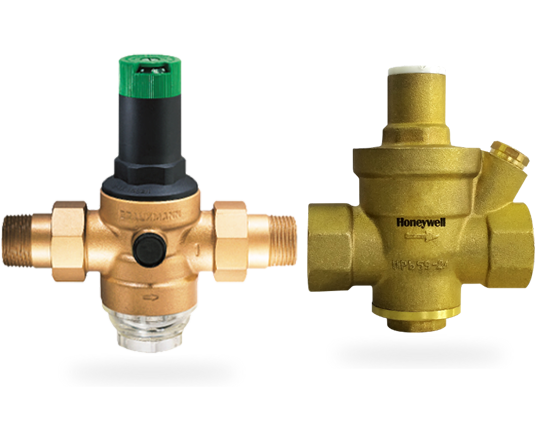

Pressure Reducing Valves

Honeywell’s PRVs have been fitted in millions of buildings thanks to advantages like high quality design, consistent performance and ease of installation. By balancing and optimising inlet pressure, the PRV prevents damage to water systems and consequently to buildings. Since it is not sensitive to dirt and is also resistant to corrosion and scaling, the PRV offers reliable and consistent operations over many years.

PRODUCT OFFERINGS

Protecting life and property
For trouble-free operations even in high-flow applications, explore Honeywell’s range of Pressure Relief Valves.

DIAPHRAGM TYPE

D15S

Flanged pressure reducing valve with a balanced single-seat design

FEATURES
  • Available from DN65 to DN200 sizes
  • Patented cartridge solution for easy assembly and maintenance. Three cartridge inserts for all nominal widths make warehousing efficient
  • High corrosion resistance due to stainless steel cartridge and PA coating
  • With inlet and outlet pressure gauge
  • Functionality and performance have been confirmed by an accelerated life test with over 400,000 cycles (requirement acc. to EN1567: 200,000 cycles)
  • Conforms to BSEN 1567
  • All materials conform to UBA standards and are ACS approved
  • Specifications
  • Resources
Simple installation in the pipework and the use of materials suited to the application make the D06F particularly reliable and problem free:
  • The balanced single-seat valve ensures that the outlet pressure remains stable, even when the supply pressure fluctuates greatly
  • The valve spring is not in contact with drinking water
  • The outlet pressure is set via a non-rising spindle Powder-coated inside and out
  • Maximum operating temperature 70 °C
  • Grey cast iron housing
  • Connection sizes DN 50 to DN 200
  • Maximum supply pressure 16 bar (D15S) & 25 bar (D17P)
  • Two variations are available for different outlets pressure ranges:D15S/D17P, 1.5 to 8 bar, D15SN, 0.2 to 2 bar

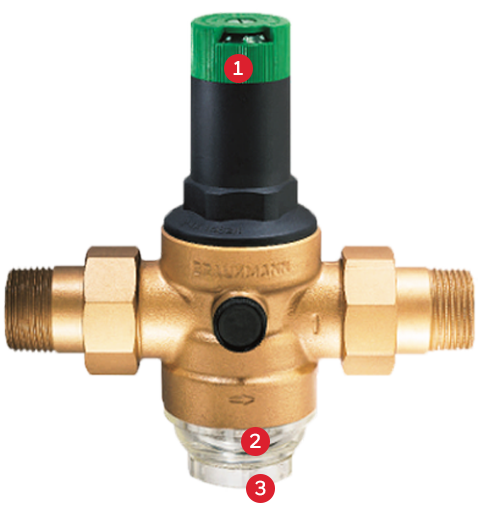

NON-RISING SPINDLE
The overall dimensions have been significantly reduced by using non-rising spindle. Simple tools are all that is needed for setting the required outlet pressure. Spring bonnet with setting indicator This additional feature enables the approximate setting to be seen at a glance, even if the pressure gauge is faulty.
WIDER CONTROL RANGE
The fitting of a special spring has made it possible to increase the control range from 1.5-6.0 to 1.5-8.0 bar (with the exception of size DN 200, which is 1.5 to 6.0 bar). Low pressure versions are also available with a setting range of 0.2 bar to 2.0 bar.
CORROSION-RESISTANT COATING
After thorough preparation the grey cast iron housing is coated both inside and outside with a physiologically and toxicologically safe powder coating. This results in exceptionally durable corrosion protection.
Documentation Size Release Date File Type Download
Datasheet 4274.86 KB 03.11.2020 pdf DOWNLOAD


Piston Type Valve

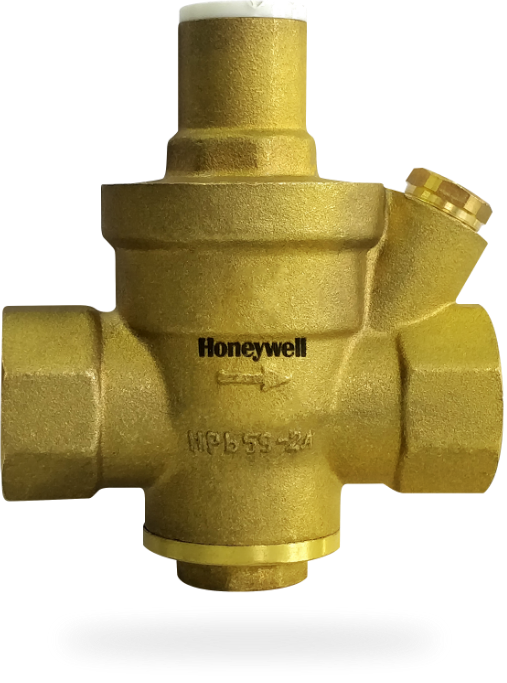

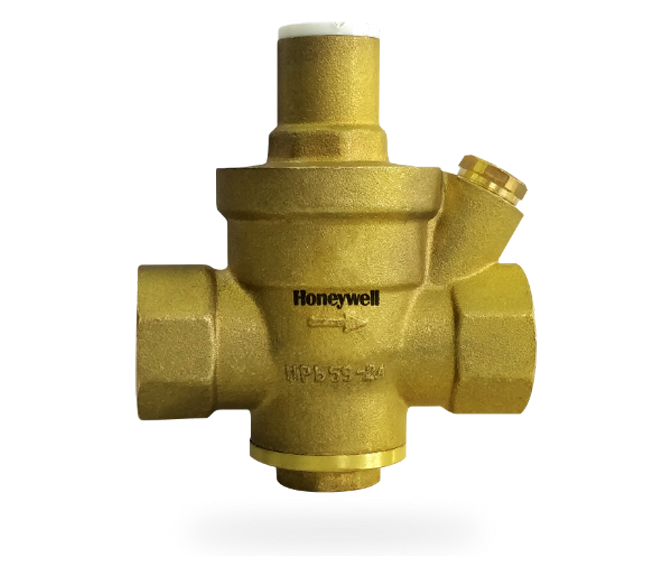

D19 SERIES

Protection Against Excessive Pressure Supply

FEATURES
  • Outlet pressure adjustable with adjusting screw
  • The adjustment spring is not in contact with the drinking water
  • Compact construction
  • Specifications
  • Resources
  • Nominal Pressure: 16 bar
  • Working Medium: Water
  • Working Temperature: 00Ct800C
  • Outlet Pressure: 1 bar to 5.5 bar
  • Parallel Pipe Thread to ISO228
  • Available Sizes: DN15 to DN50
  • Protects household water installations against excessive pressure from the supply
  • Can be used for industrial or commercial applications within the range of their specification
  • Pressurization damage is avoided and water consumption is reduced
  • Outlet pressure adjustable with adjusting screw
  • The adjustment spring is not in contact with the drinking water
  • Compact construction
Documentation Size Release Date File Type Download
Datasheet 4274.86 KB 03.11.2020 pdf DOWNLOAD
