Hi-def musical
performance
Perfect for musicians and audiophiles who demand uncompromising sound quality for their public performances.

Let your audience pick up on all the subtle details and nuances of your music – the way you want them to!

  • High definition for touring or installation
  • Reliable high quality wooden cabinets
  • Built-in DSP for HD sound
  • Multiple presets for any application
  • High quality amplification built-in

Product Offerings

The exhilarating world of high-definition music
Your fans deserve a memorable live music experience they will cherish forever. Give it to them and keep them coming back for more!

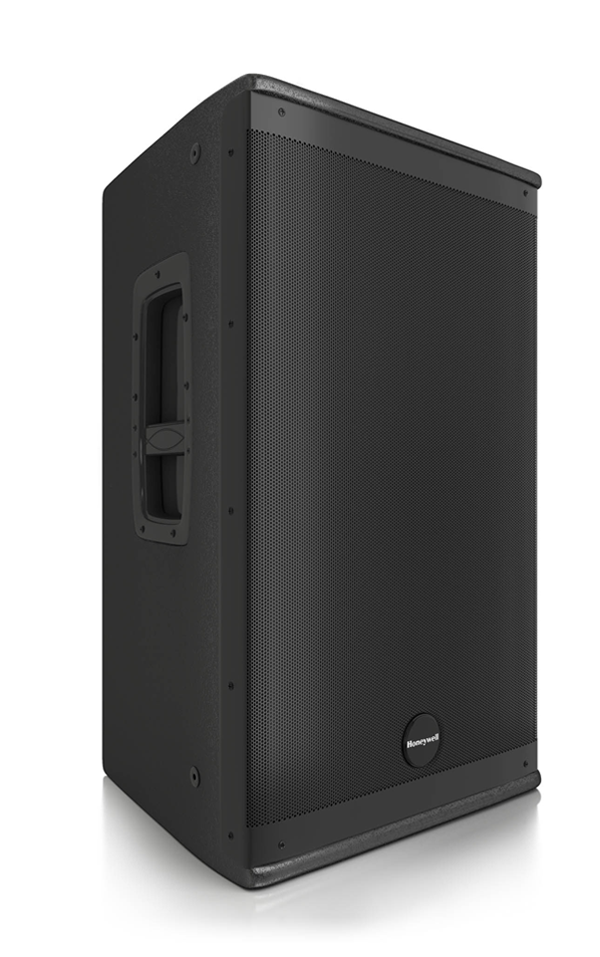

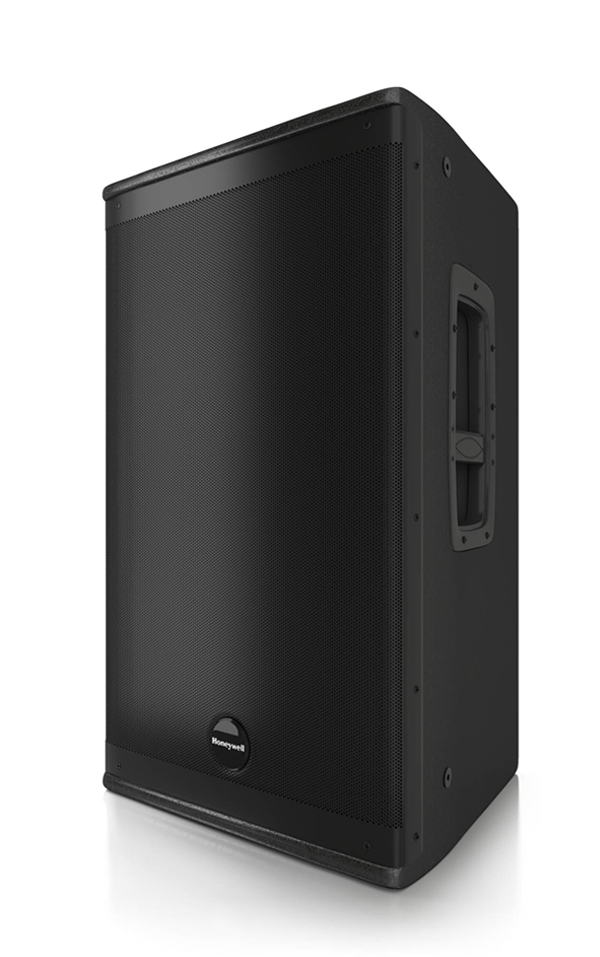

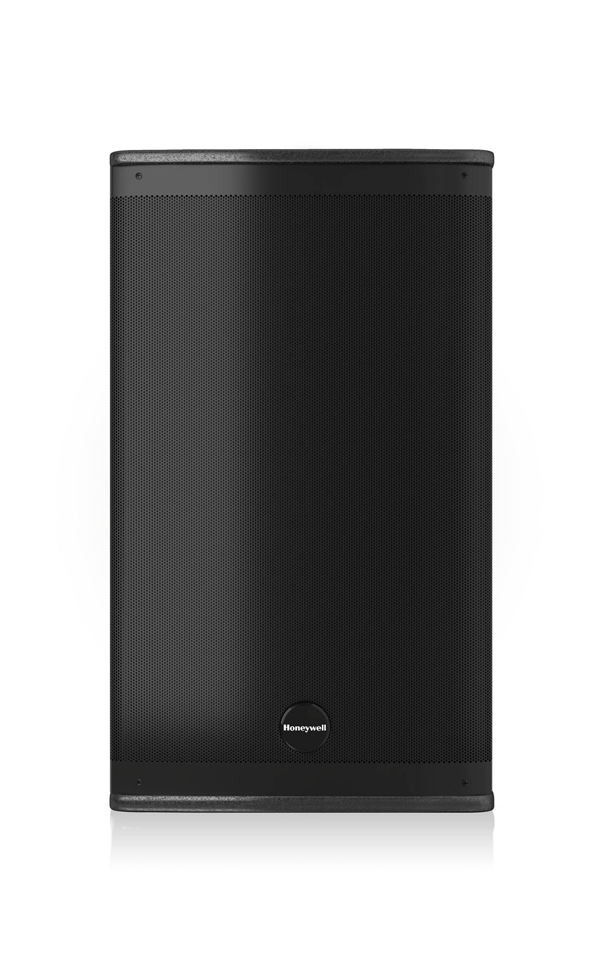

Alpha-10A

10”, High-power 2-way Active Loudspeaker with DSP

The Alpha-10A speaker system from Honeywell delivers effortless music performance for a listening experience like no other. Powerful music output to blow your audience away!

FEATURES
  • 129 dB
    Max SPL
  • 1600 / 3200 W
    Program Power / Peak Power
  • DSP
    Built-in
  • 90° H x 60° V
    Coverage Pattern
  • 55 Hz - 20 KHz
    Frequency Response
  • 19.7 kg
    Net Weight
  • Specifications
  • Resources
Model No. Alpha-10A
System Type 10”, High Power 2-Way Active Loudspeaker with DSP
Max SPL Output 129dB
LF Driver 10” Driver with 2.5” Voice Coil
HF Driver 1” Driver with 1.75” Voice coil
Coverage Pattern 90° H x 60° V
Frequency Response (-6dB) 55Hz - 20KHz
Crossover Frequency 1.8 KHz
Power Rating 1600W (Program) / 3200W (Peak)
Connectors 1 X Line / Mic Combo, 1X Line XLR
DSP Presets Flat/Loudness

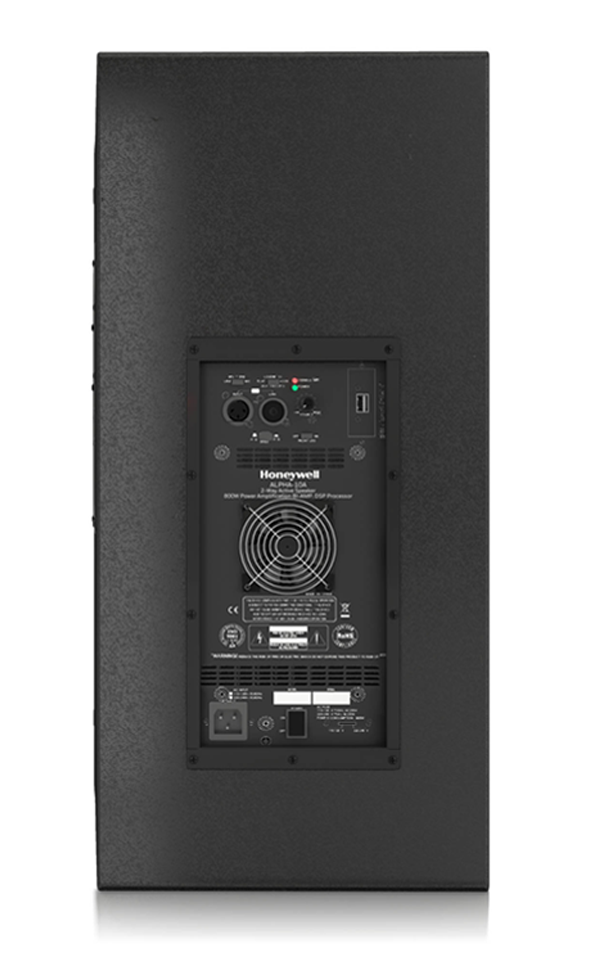

External Controls & Indications Volume Control/ Green LED - Power ON, Red LED - Clip Indicator/ Ground Lift /Input Sensitivity switch / Logo LED switch
Electronic Protections Thermal / Convection-Fan / Overload / Digital-Lim / Compressor
Power Supply 110V - 120V / 220 - 240V, 50/60Hz
Suspension / Mounting 36mm pole socket, 12XM10 Suspension Points
Enclosure Construction Plywood Cabinet weather resistant black paint, metal grille with black foam, rubber feet, plastic handles
Dimensions (HXWXD) 583 x 333.2 x 325mm
Net Weight 19.7 Kg
Documentation Size Release Date File Type Download
Datasheet 2813.39 KB 27.10.2020 pdf Download
