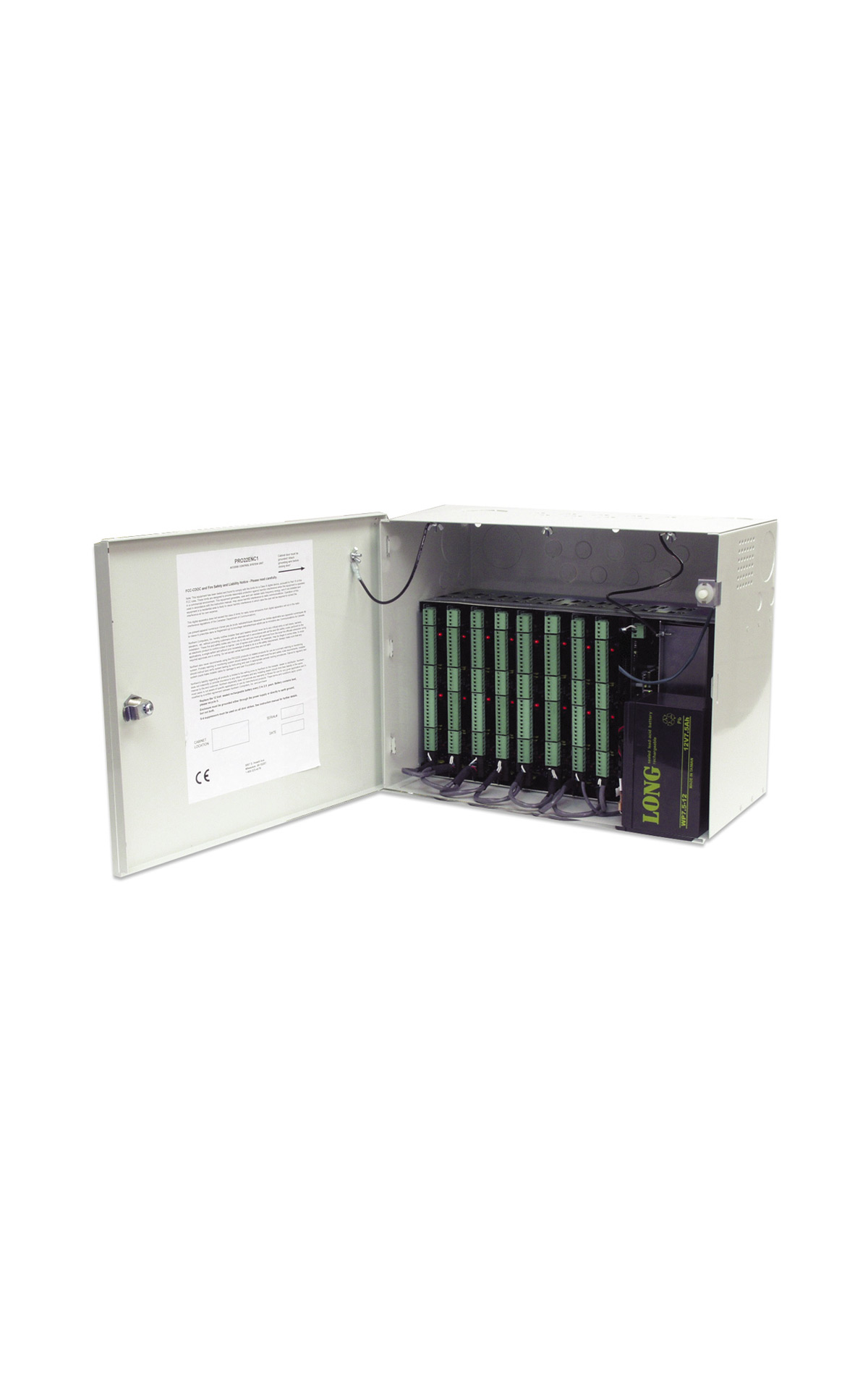

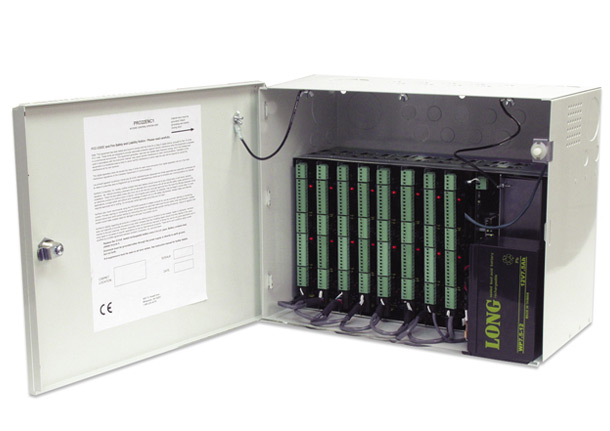

| PRO3200 Series Single Reader Module (PRO22R1) |
PRO3200 Series Dual Reader Module (PRO32R2) |
|
| MODULE SPECIFICATIONS |
|
| PORT |
| 1 reader port - 12 VDC at 50 mA, clock / data or data0 / data1 | 2 reader ports - 12 VDC at 50 mA, clock / data or data0 / data1 |
|
| KEYPAD |
Keypad multiplexed with card data |
| WIRE SUPPORT |
Two-wire or one-wire bi-color LED support |
| BUZZER SUPPORT |
Buzzer support only with one-wire LED control |
| ALARM INPUTS |
| 2 supervised, general purpose alarm inputs with programmable circuit type | 8 supervised, general purpose alarm inputs with programmable circuit type (only 6 supervised inputs available when using PRO22ENC1, PRO22ENC2 and PRO22ENC5 enclosures) |
|
| ALARM INPUTS |
| 1 dedicated alarm input for tamper detection | 2 dedicated alarm inputs for tamper detection and power loss |
|
| OUTPUT RELAYS |
| 1 general purpose output relay, form C, 5 A 28 VDC | 2 general purpose output relay, form C, 5 A 28 VDC |
|
| OUTPUT RELAYS |
| 1 general purpose output relay, form C, 1 A 28 VDC | 4 general purpose output relay, form C, 2 A 28 VDC(only 2 output relays available when using PRO22ENC1, PRO22ENC2 and PRO22ENC5 enclosures) |
|
| MOUNTING |
| Designed to be tile-mounted using the PRO22ENC4 enclosure | N/A |
|
| ALARM INPUT PROPERTIES |
|
| INPUTS |
Inputs may be assigned to door related functions or general purpose I/O |
| CIRCUIT TYPE |
Circuit type - normally open, normally closed, non-supervised, supervised (with standard 1K or custom end-of-line resistance 200-10K) |
| LINE CONDITIONING |
Line conditioning - programmable sensitivity and hold time |
| OUTPUT CONTROL PROPERTIES |
|
| OUTPUTS |
Outputs may be assigned to door related functions or general purpose I/O |
| RELAY RATING |
The 5 A relay(s) are rated to handle the inductive loads of door locking devices |
| CONFIGURABLE |
Configurable as standard (energize to activate) or fail-safe (de-energize to activate) |
| PULSE TIME |
1-32,400 seconds, 1-255 for door relays |
| RS485 PORT |
RS485 port, 4,000 ft (1,250m) total bus length |
| STANDARD SPEED |
38.4 Kbps |
