Lower HVAC
energy use
Minimise energy consumption and maintain comfortable conditions through close control and monitoring of HVAC services.

Demand-led Energy Management Solutions

Trend is one of the world’s leading BEMS brands, with a worldwide distribution and support network covering over 50 countries. Suitable for the largest building complexes and multi-site applications, Trend systems minimise energy consumption and help maintain consistently comfortable building conditions through close monitoring of HVAC and other building services. Our systems also deliver real time management information and control, enabling significant reductions in CO2 emissions, whilst accommodating changes in occupancy status and staff relocation at short notice.

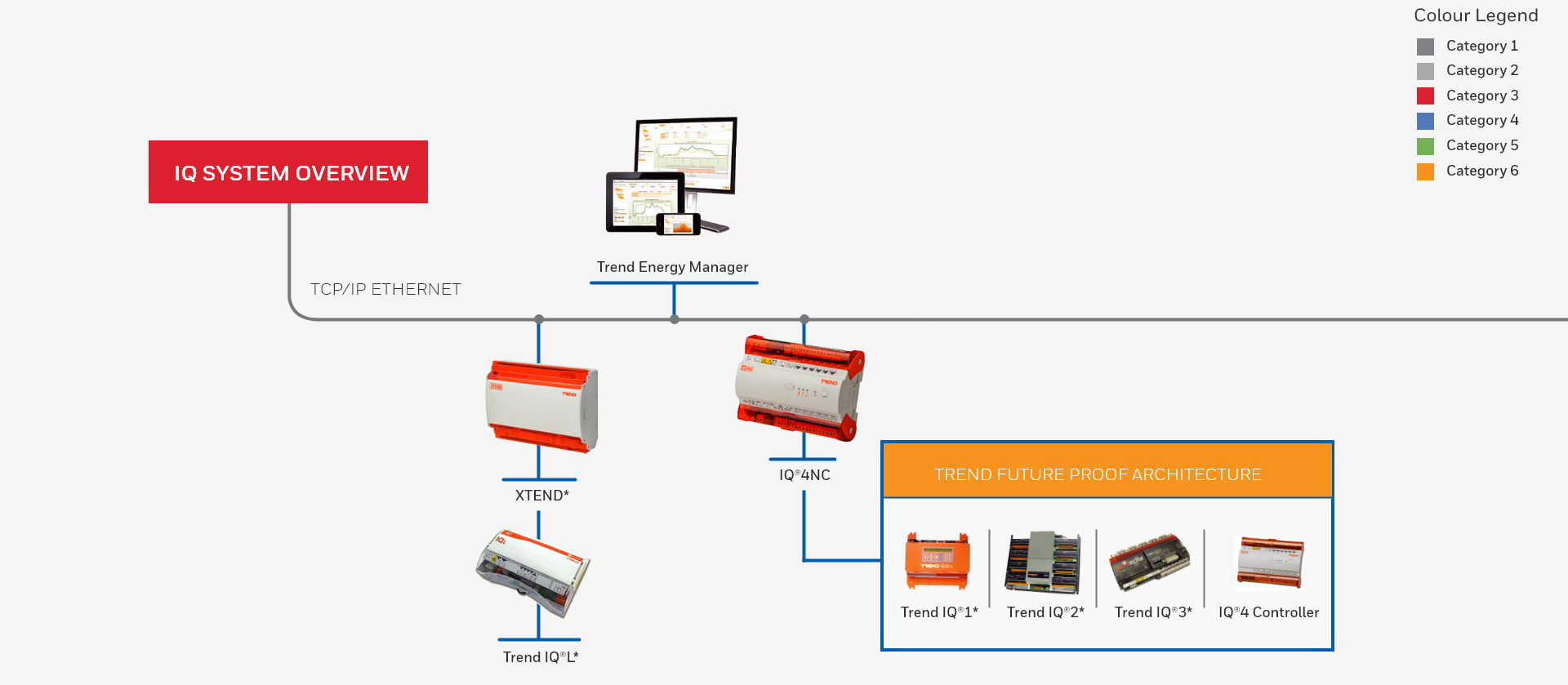

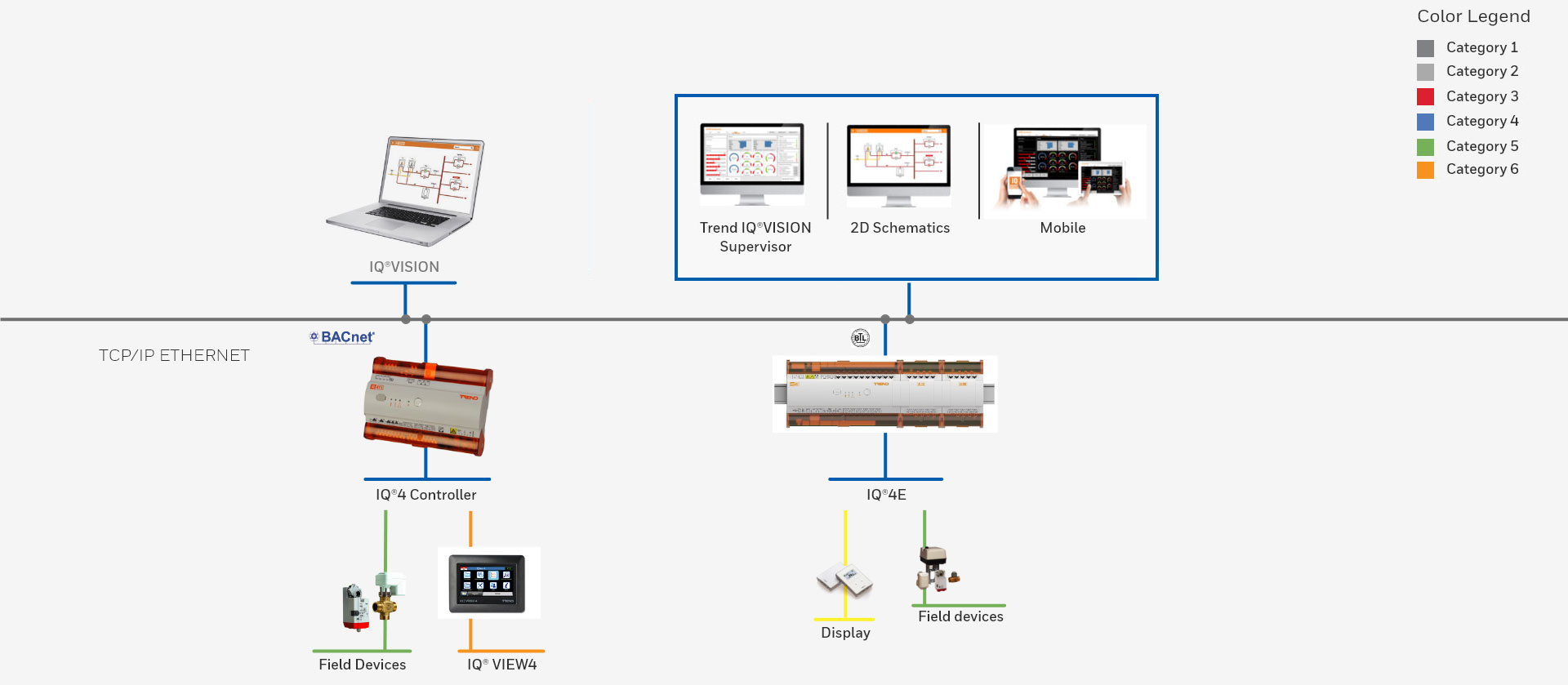

Trend IQ® Network

Backward compatability allows legacy products to communicate with current/future products.
  • IQ®4 Main Plant Controllers

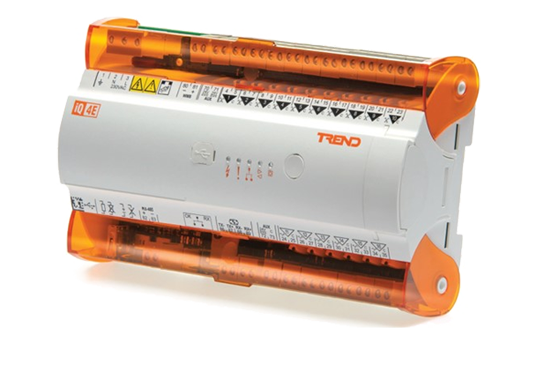

    The IQ®4E controller has 10 universal inputs and 6 analogue voltage outputs and is expandable up to 192 points (depending on the controller variant) by adding I/O modules. This flexibility makes it suitable for a broad range of applications. The IQ®4E controller uses Ethernet and TCP/IP networking technologies with embedded XML and is fully compatible with other Trend IQ® controllers. The IQ®4E supports BACnet over IP as standard. Trend communications over a current loop LAN is available as an option. A local PC or display (e.g. IQ®View4) can be connected to the RS232 port. A Wallbus port is also provided for use with room displays.

  • IQ®4 Plant Controllers

    The IQ®4 series of intelligent controllers is designed for their advanced unitary control systems and localised intelligent control of distributed plant. Full compatibility with other Trend IQ® controllers enables the IQ®4 to integrate the local environmental needs with the main air conditioning system in order to optimise both comfort and running costs. With their small footprint IQ®41x and IQ®422 can be placed in smaller control panels, lending themselves to confined space applications. The IQ®4 design meets the required DIN form for standard electrical devices and as such can be fitted within regular electrical enclosures, thereby reducing installation costs.

  • IQ®ECO Terminal Unit Controllers

    Designed primarily for commercial buildings, the IQ®ECOs provide intelligent solutions for either individual or open plan offices. They are also ideal for hotel applications where separate room control is required. The entire IQ®ECO range has passed the WSP Association’s Conformance Review and as such are BACnet certified.

BACnet

Trend’s IQ® controller range includes variants with native BACnet communication capability. BACnet over IP enables the controller to integrate seamlessly with other BACnet devices. The BACnet capable IQ®VISION supervisor not only enables monitoring and adjustment of all Trend’s IQ® controllers but also other manufacturers BACnet devices. Importantly, Trend’s approach to BACnet in both the IQ®4 and IQ®VISION supervisor maintains existing engineering and operating methods, giving customers a consistent and familiar approach.

Energy Software

Trend Energy Manager software puts you in control of your building’s environmental performance and costs. There is little or no requirement for extensive product training. It uses a simple browser interface and layout to ensure the system is intuitive and easy to learn. Energy Dashboards within IQ®VISION provide dynamic view of a building’s energy performance, allowing building occupants and visitors to see an organisation’s commitment to improving the management of energy and its energy usage.

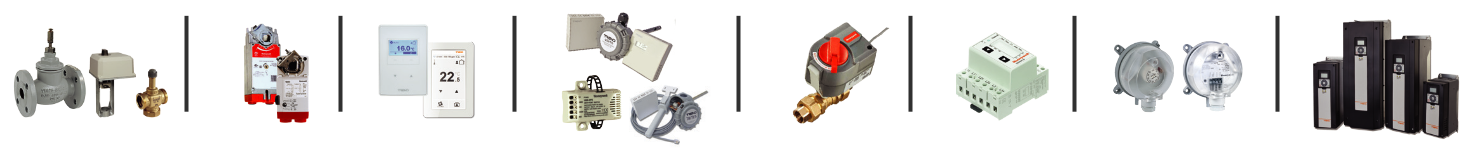

  • Field Devices

    The efficient control and monitoring of a system depends heavily upon the quality of the field devices connected and the information they provide. Trend offers a complete range of high-quality field devices.

  • Sensors

    A range of devices for measuring temperature, humidity, air quality and pressure. The wireless sensors deliver significant benefits in terms of ease of installation and cost, and equally importantly, provides flexibility and convenience in areas that are regularly reconfigured.

  • Valves + Actuators

    Trend’s range of valves and actuators cover all HVAC applications including 2-way and 3-way linear and rotary valves with a choice of actuators from thermic, linear and rotary through to direct coupled actuators for air dampers, ventilation louvres and VAV-units.

  • Variable Speed Drives

    The range starts at 1.9 Amps and scales to 310 Amps. Drives are available in IP21 and IP54 versions and meet the latest harmonic standard EN 61000-3-12. Using the latest technology, the drives will connect either directly into the controller or via a range of communication networks, including Ethernet, BACnet and Modbus. as a result they are easy to use, put you in control and, above all, substantially reduce costs.

Supervisors

Supervisors are used to graphically display monitored inputs and outputs, change control parameters and perform a wide range of energy analysis and maintenance functions, simplifying the user’s interaction with the BEMS. Trend’s IQ®VISION is a real-time user interface that enables users to get the very best from their BEMS, providing graphical information to standard internet browsers. It boasts a diverse range of useful functions such as centralised data logging, archiving, alarming, trending, master scheduling, system wide database management and integration with enterprise software applications - all of which can be used for highlighting and investigating energy use within buildings. IQ®VISION is a completely OPEN and extendable platform that is scalable for every application.

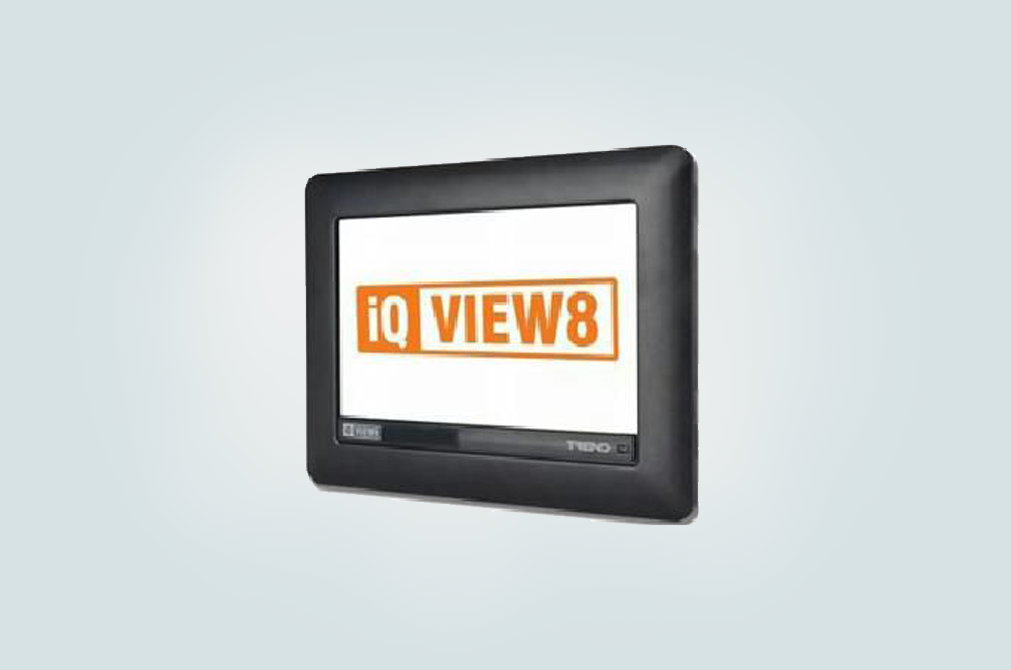

Displays

Trend provides a range of display options that allow different user types to interact with their BEMS without the fear of damage to the overall system. The range covers single controller setpoint adjustment via push button ot touch screen options through to site-wide graphical touch screen displays.

Network Products

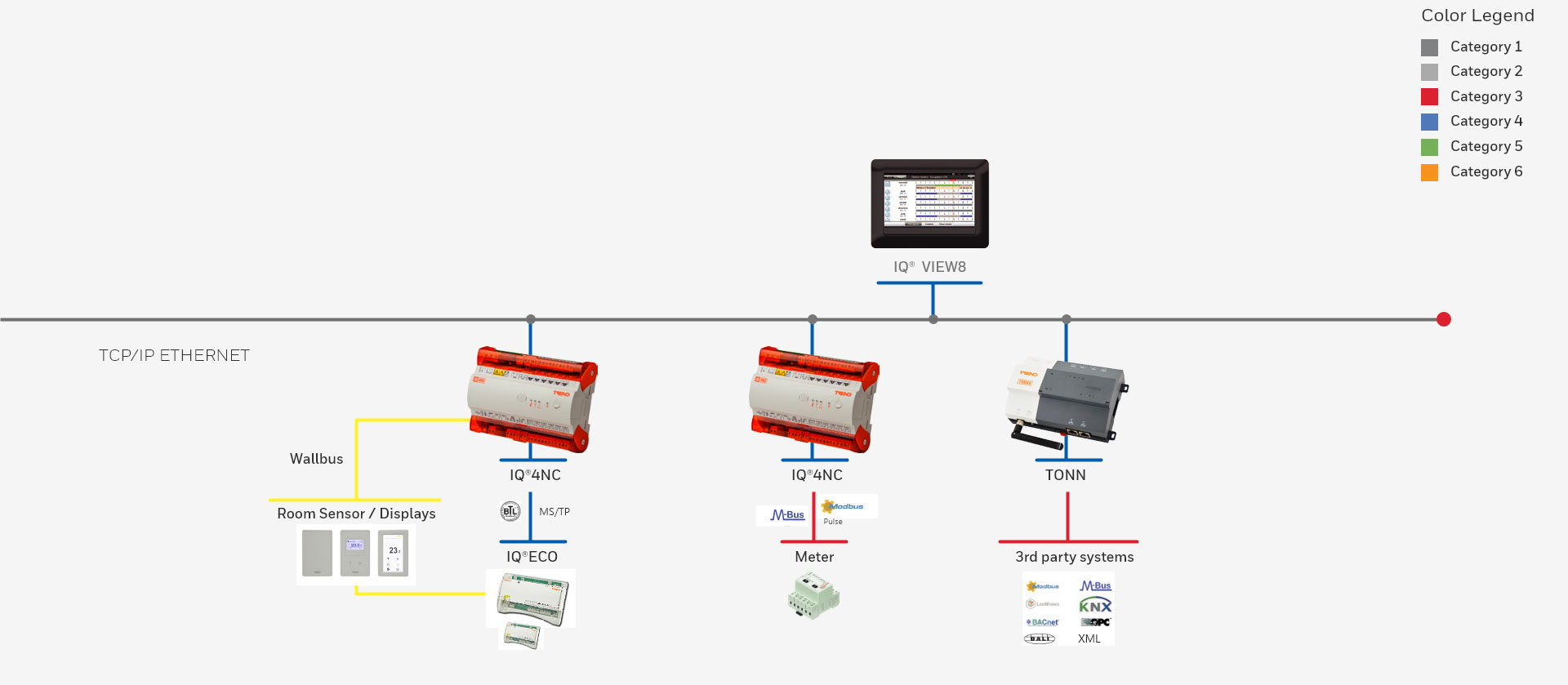

Trend provides a range of devices which enable interaction between different communication systems or legacy installations. The IQ®4NC provides the means by which the Trend IQ® system network can be extended over a client’s IT network, seamlessly connecting all existing Trend IQ® controllers installed, thereby reducing ongoing lifetime costs.

Energy Software

Trend Energy Manager software puts you in control of your building’s environmental performance and costs. There is little or no requirement for extensive product training. It uses a simple browser interface and layout to ensure the system is intuitive and easy to learn. Energy Dashboards within IQ®VISION provide dynamic view of a building’s energy performance, allowing building occupants and visitors to see an organisation’s commitment to improving the management of energy and its energy usage.

Integration

The Trend BEMS can be easily extended and integrated with a wide range of third party devices and systems: Heating and Air-Conditioning, Lighting, Security equipment and Fire Detection. Simply select the relevant Trend integration or interfacing solution to ensure the most cost-effective implementation, whether it’s a simple metering application or full control of all your building's services.

BENEFITS

Bridging the gap between energy demand and energy savings in modern buildings
  • Wide range of
    applications for
    non-residential
    buildings
  • Designed to
    match individual
    needs immediately
    and in the
    long term
  • Reliable and
    easy to use
  • Minimises energy
    consumption and
    maintains comfortable
    building conditions
  • Cost-effective
    whole life system
  • Can be easily extended
    and integrated with a
    wide range of third-party
    devices and systems

Applications Areas

One product, many applications
Offices
Factories
Leisure Centers
Schools
Shops
