High-def
surveillance
Sharp images, reduced installation cost and real-time signal transmission – all the advantages you expect from the world leader in surveillance systems

ANALOGUE AHD CAMERAS

Featuring advanced Analog High Definition (AHD) video technology, Honeywell’s HD analogue cameras provide sharp, well-defined images for a number of indoor and outdoor surveillance applications. This series of versatile, cost-effective solutions includes fixed lens, bullet, dome and PTZ bullet cameras.

PRODUCT OFFERINGS

Real-time transmission, cost-effective performance
With high resolution output, TDN function and a number of other powerful features, the complete range of Honeywell AHD cameras delivers superlative images and videos without appreciable loss or even distortions.

HABC-2005PI

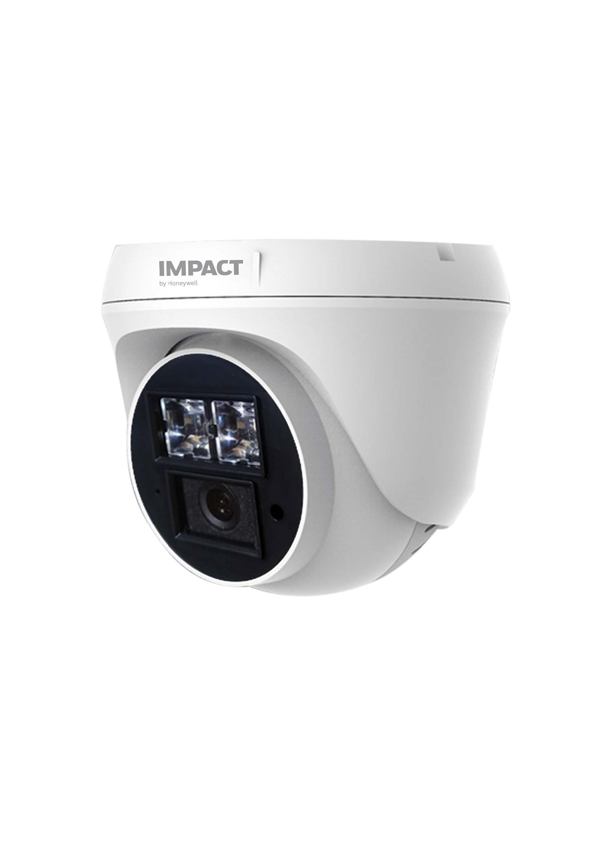

1080P AHD VANDAL IR FIXED LENS CAMERA

Featuring the advanced Analog High Definition (AHD) video technology, HADC-2005PI / HABC-2005PI is a HD analog camera which provides 1080P (1920 x 1080) sharp, high definition images. The AHD technology ensures real-time and non compressed signal transmission via coaxial cable, which significantly reduces installation cost and provides much sharper Images without video quality loss.

FEATURES
  • 1080P real time high resolution
  • CMOS progressive scan
  • True day/night capability
  • Minimum illumination: 0 Lux (IR ON)
  • TDN (IR-cut), AWB, AGC, Defog
  • 3.6mm lens
  • IR distance: upto 20 meters
  • Power: 12VDC
  • Vandal resistant
  • Dual output AHD & CVBS
  • Specifications
  • Ordering Info
  • Resources
Model No. HABC-2005PI
System
Video Standard PAL/NTSC
Scanning System Progressive
Image Sensor 1/2.7 2MP CMOS Sensor
Resolution 1080P
Number of Pixels 1920 (H) x 1080 (V)
Minimum Illumination 0.01Lux BW, 0Lux IR
Video Output AHD BNC, CVBS terminal
Video Frame Rate 25/30 fps (PAL/NTSC)
Sync System Internal
Automatic Electronic Shutter 1/25s ~ 1/50,000s(PAL), 1/30s ~ 1/60,000s(NTSC)
Lens Type 3.6mm
IR LEDS 18 LEDs
IR Illumination Distance Upto 20m, depending on scene reflectance
SNR >50 db
Day/Night Auto with ICR
Automatic Gain Control Auto
White Balance Auto
Digital Noise Reduction Auto (3DNR)
WDR DWDR (ON/OFF)
OSD Yes
Electrical
Input Voltage DC12V ± 10%, 500mA
Power Consumption 6W ± 10%
Mechanical
Dimensions 148(W) x 65(H) x 63(D)mm
Weight 650g
Construction Housing: Vandal resistant, Color: Semi-white
Connectors Video output: AHD BNC connector; CVBS terminal, Power input: 2.1 mm plug
Environmental
Operating Temperature -10°C to 50°C
Relative Humidity 10% to 95%, non-condensing
IP Rating IP66
Regulatory
Certification CE
System Compatibility
Compatible DVR AHD DVR
Model No. HABC-2005PI
HABC-2005PI 1/2.7” CMOS Sensor, 1080P AHD, TDN, DNR, DWDR, 18 LED, 3.6mm, IR Vandal Bullet Camera, 12 VDC with OSD, PAL
Documentation Size Release Date File Type Download
Datasheet 4289.71 KB 18.11.2021 pdf Download

One product, many applications
Residential areas
Commercial sites
Hotels
Hospitals
Warehouses
