Advanced Fire Alarm
Control Panel for
Smarter & Safer Buildings
Easy To Install
And Manage Fire
Detection And
Alarm System

Fire Alarm Control Panels

Easy to install, Easy to use

Honeywell’s System Sensor Fire Alarm Control Panels provide a simple and reliable solution to meet the demands of today’s strict fire alarm detection requirements. The panels are designed with both installers and end users’ convenience in mind, and are suited for small- to medium-sized buildings.

CHOOSE YOUR SOLUTION

Designed for both installers and users
Rich featureset and user-friendly functionalities to simplify installation for installers and operation for end users.

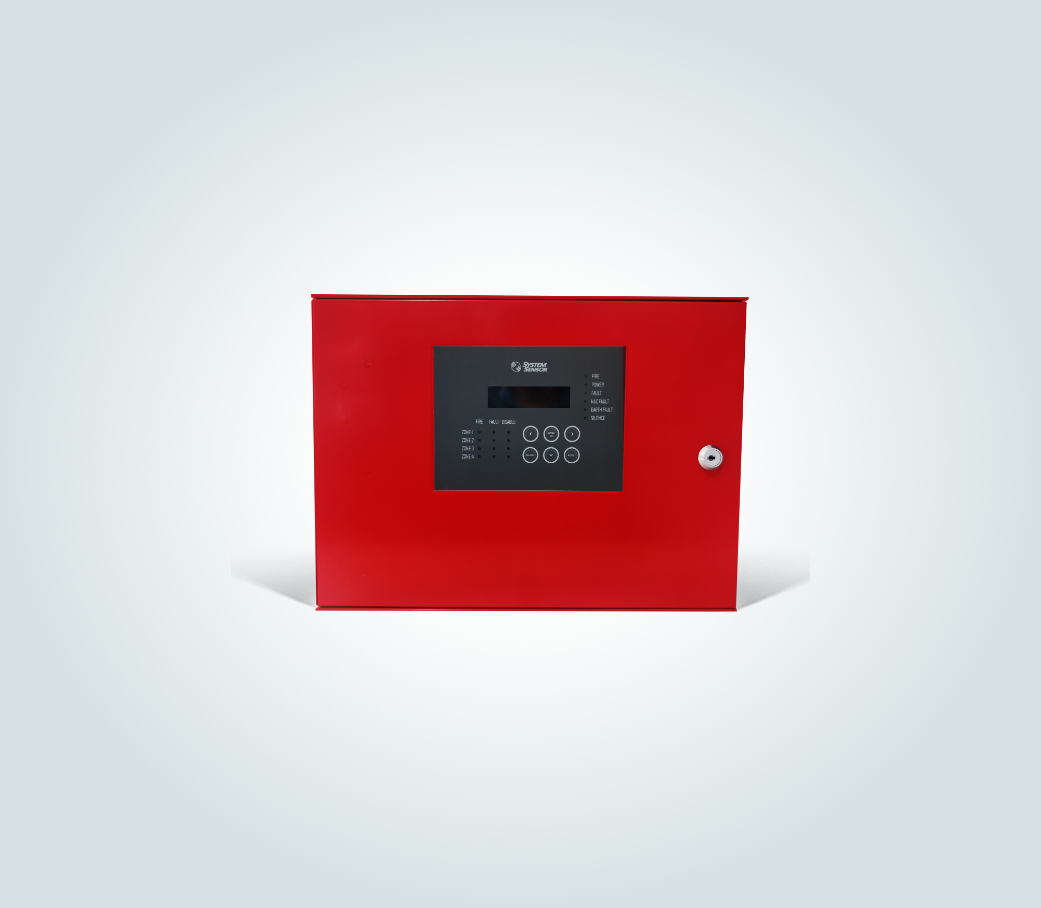

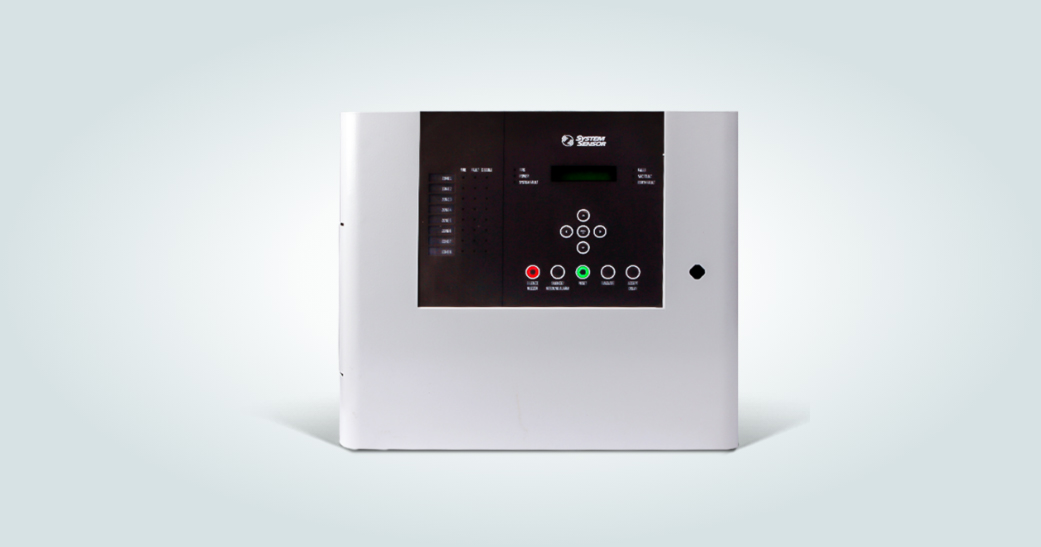

  • System Sensor Fire Alarm Control Panel

    Designed to satisfy the requirements of both installers and end users, this panel offers an advantageous combination of quick installation, enhanced feature set and advanced programming for all kinds of fire detection/fire safety applications. It is equipped with programmable relays, delay setting for alarm verification, software isolation of zone and NAC output, mapping of NAC to specific zones and password-protection

    • 16 x2 LCD display
    • Earth fault monitoring
    • Certified for safety standard IEC 62368-1:2018
    • Individual zone isolation
    • One-man walk test facility
    • Up to 600m per zone cable
    • Event logging
    • Cloud connectivity for CMS monitoring

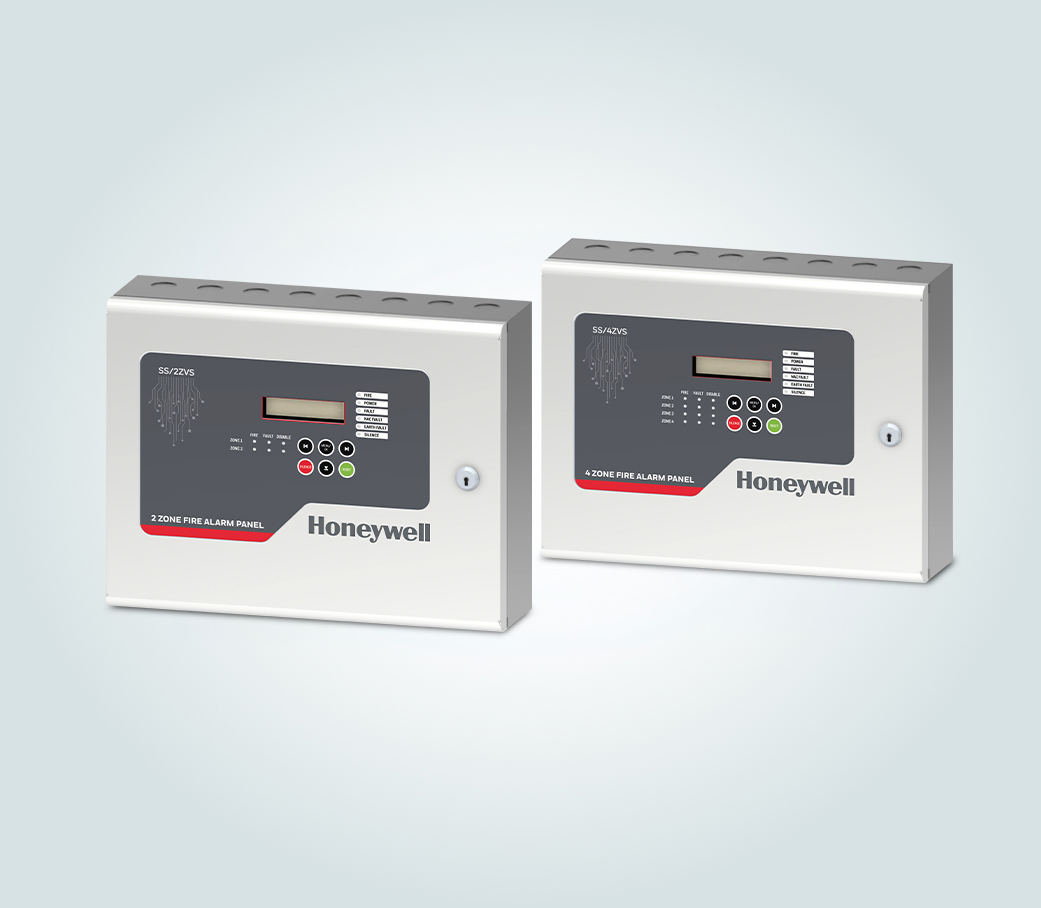

  • Conventional Fire Alarm Control Panel

    Honeywell System Sensor Fire Alarm Control Panels have been developed to provide a simple and reliable solution to the demands of today's fire detection solutions. The panels have been designed with both installer and end user's requirements in mind suited for small to medium sized buildings like Commercial Buildings, Banking, Residential complexes, Retail Units/Stores, Shops, Restaurants, Healthcare, Public Offices, Schools etc

    • Three Form-C relays (1 Fire, 1 Fault and 1 Programmable 2amps@30 VDC)
    • Display: 16 X 2 Character LCD
    • 1 On-board NACs operating 0.5A/circuit
    • Aux Output: 24VDC
    • Sounder Output: 24VDC
    • Feature Detection Circuits: 2 & 4 Zones (upto 20 Detectors + 5 MCPs)
    • Zone wise Fire, Fault, Disable indication
    • Panel keys: Silence Buzzer/Alarm; Reset; Navigation keys (Left, Right, Down, Menu/Ok)
    • Lamp Test & Walk Test
    • Evacuation
    • Supports Standby Power 24V DC (2 X 12V, 7Ah Lead Acid Batteries)
    • Certification (CE)
    • Event Log-1200 Events
    • Earth Fault Monitoring
One product, many applications
Commercial buildings
Schools
Residential Complexes
Banks
Retail Units

A long-standing commitment to products and people

With more than six decades in the fire alarm business and more than 400 distributors, we’re committed to the highest levels of training, industry knowledge and customer service.
