Dynamic balance
and control
Automatic temperature control and flow regulating valves in one body deliver better HVAC control, reduce energy costs and enhance occupant comfort.

Pressure Independent Control Valve

Each Pressure Independent Control Valve (PICV) from Honeywell is an automatic temperature control valve, an automatic flow - regulating valve and a flow - limiting valve packaged into one body. The PICV regulates and maintains a constant flow to the coil irrespective of differential pressure variations, resulting in better comfort and increased energy efficiency while saving on installation time and cost.

PRODUCT OFFERINGS

More control, less work
Industry-leading precision with integrated flow control and temperature control functions in a single valve.

FCU PICV

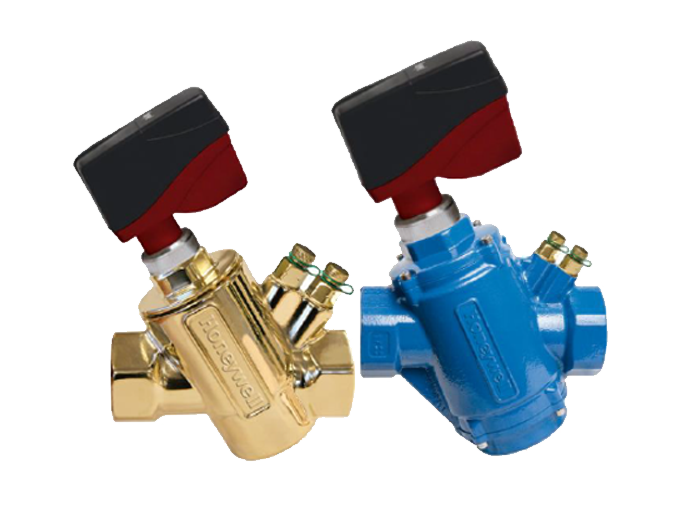

KOMBI-QB SERIES

Automatic Pressure-Independent Valve

FEATURES
  • Sizes DN15…DN25 with internal and external threads (DIN EN 10226-1)
  • Valve body PN25
  • Easily adjustable for pre-set with flow scale on outside of valve
  • Valve insert in modular design and easily exchangeable
  • Pre-setting possible even when the system is running and an actuator is already mounted
  • Emergency shutoff function with protection cap
  • Specifications
  • Resources
Dynamic balancing with Kombi-QB
  • Automatically adjusts for all operating conditions, even under partial load
  • Easy to set up hydraulic balancing, since only the calculated flow needs to be set
  • Precise control over the full stroke, even with the smallest quantities
  • Additional temperature control by means of an actuator, available as an optional extra
  • All variants with SafeCon™ measurement connections to ascertain the optimum pump pressure
Saving energy with hydraulic balancing As an essential requirement for smooth, economical operation of a heating or cooling system, hydraulic balancing offers considerable potential for direct energy savings. A perfectly balanced hydraulic heating or cooling system operates effectively and economically, providing energy savings of up to 10 %.

Accessories

VM242A BasicMes-2

Measuring computer for determining flow values. BasicMes can be used to test all popular brands of balancing valves.

VS2600C Pressure test connections

Honeywell SafeCon™ measurement connections can be used to carry out any necessary measure-ments quickly, easily and safely – no matter what the installation position.

System products

Thermo-electric On/Off actuators

Actuators such as the Smart-T are used in room and zone applications for the timecontrolled two-point and pulse-width modulated (PMW) control of heating and cooling systems.

Electronic Modulating actuators

Actuators such as the M7410E can be used for Modulating control. Precise positioning of the actuator is achieved by activating the Synchronous motor through a set of gears.

Thermo-electric On/Off actuators

Actuators such as the Smart-T are used in room and zone applications for the timecontrolled two-point and pulse-width modulated (PMW) control of heating and cooling systems.

Electronic Modulating actuators

Actuators such as the M7410E can be used for Modulating control. Precise positioning of the actuator is achieved by activating the Synchronous motor through a set of gears.

Documentation Size Release Date File Type Download
Datasheet 3955.47 KB 03.11.2020 pdf DOWNLOAD


AHU PICV

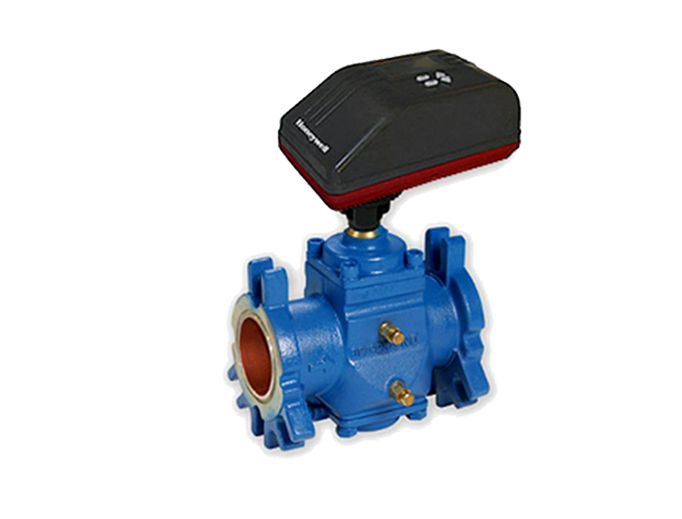

KOMBI-9 SERIES

Pressure Independent Integrated Balancing Control Valve

FEATURES
  • Integrated functions as linear temperature control, pressure independent and electric regulating into one valve
  • Output the valve position signal to BAS for system variable differential pressure control of variable flow water system, ensure HVAC water system can always operate in the most energy-saving mode
  • High control accuracy, strong anti-interference capacity
  • Allow wide range of pressure fluctuation difference for the system
  • Simple calculation in designing the pipeline system
  • Easy installation
  • Convenient for commissioning at site
  • Specifications
  • Resources
  • Connection: DN25~DN150
  • Flow control accuracy: ±5%
  • Valve rated pressure: PN16
  • Media: Water, Glycol solution
  • Media temperature:-5° ~120°C
  • Operating ambient temperature: 0~65°C
  • Atmosphere: Non-corrosive, non- explosive
  • Integrated functions as linear temperature control, pressure independent and electric regulating into one valve
  • Output the valve position signal to BAS for system variable differential pressure control of variable flow water system, ensure HVAC water system can always operate in the most energy-saving mode
  • High control accuracy, strong anti-interference capacity
  • Allow a wide range of pressure fluctuation difference for the system
  • A simple calculation in designing the pipeline system
  • Easy installation
  • Convenient for commissioning at site
Documentation Size Release Date File Type Download
Datasheet 2684.18 KB 03.11.2020 pdf DOWNLOAD
