Industrial safety,
operational reliability
Integrated and reliable solution to meet safety and process requirements in industrial fire and gas environments

HS-81

Industrial Fire and Gas Controller

Honeywell’s HS-81 Fire and Gas (F&G) Controller manages detection, notification and extinguishing functions. It can integrate with process safety systems and peripherals through multiple protocols. This all-in-one solution is meant for both process areas and personnel stations. It can perform flame, smoke and gas detection, and manage extinguishing/agent release. This new F&G controller carries essential SIL2 and SIL3 ratings in addition to meeting NFPA-72 and EN-54 requirements. It features a unique ‘hot swap’ capability for the replacement and auto-configuration of CPUs and power supplies without the need to perform a critical system shutdown.

  • DETECT

    Accurately identify a site fire or gas incident that can impact the process, damage property or hurt people

  • NOTIFY

    Notify personnel about the issue, location, and required actions

  • CONTROL

    Automatically mitigate and communicate the hazard

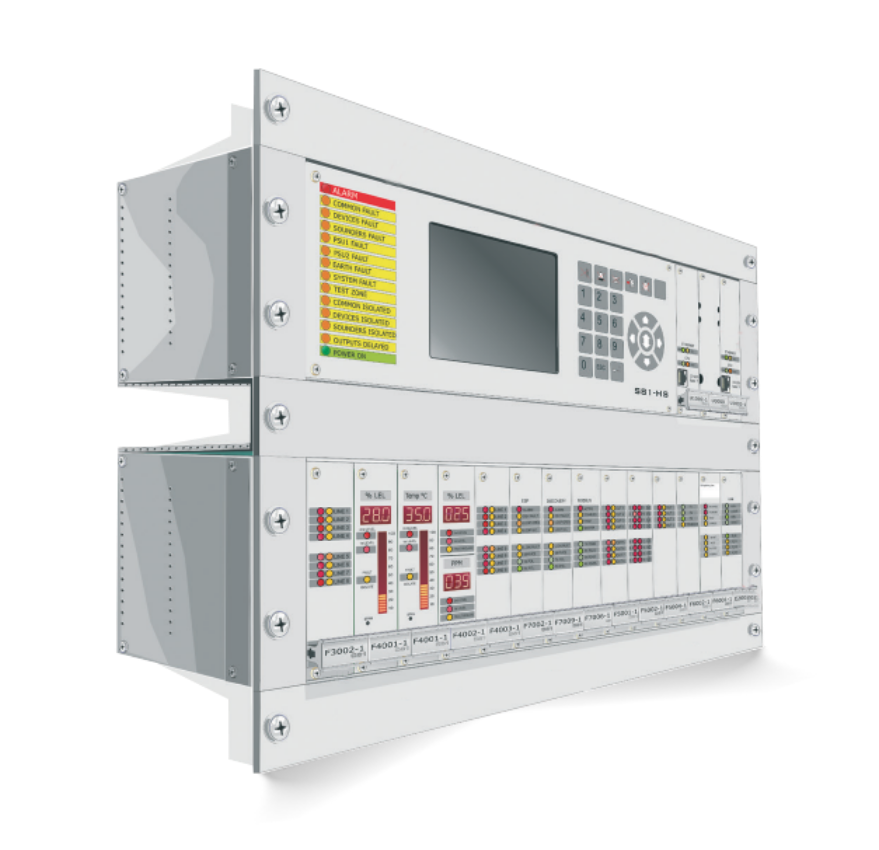

HS-81 CONTROLLER

Comprehensive F&G Safety for Operational Continuity

Honeywell is the world’s leading provider of advanced automation solutions for the process industries. One such solution is the HS-81, an integrated industrial-grade fire and gas system that includes flame, gas, and smoke detection; logic control and networking equipment; suppression and extinguishing capability; public address, sounders, beacons, and other safety components. These elements, which can be brought together to monitor the state of plant safety, offer rapid and coherent emergency response capability. The system’s highly reliable architecture and advanced software enable faster and better decisions, ensuring maximum plant uptime. With excellent resistance to electromagnetic disturbances and offering continuous operability even in harsh environmental conditions, the HS-81 can meet even the heaviest functional reliability and availability requirements.


Status LEDs

Display

Keypad

CPU Cards RJ45 Connectors

Rack Controller

13 I/O Cards
HS-81 System Highlights
  • Modular
    Control Panel

    • Safety PLC for Flame and Gas
    • Addressable Smoke Detection Panel
    • Suppression and Extinguishing Panel
    • Human Machine Interface (HMI) Panel
  • FIRE
    EXTINGUISHING

    • Automatic Fire Extinguishing System
    • Dedicated Command for Each Solenoid
    • Monitoring and Diagnostics
  • SMOKE
    DETECTION

    • Addressable Analogue Detection
    • Multiple Protocols on One Panel
    • Fault Monitoring
    • Pre-Alarm, Alarm and Alarm Verification
    • SIL2 Detection
  • FLAME AND GAS
    MONITORING

    • 4-20mA Protocol with HART
    • Front Panel Bar Graph/Numerical Displays
    • Programmable Thresholds
    • SIL2 Sensors Accommodated
    • Remote Reporting
  • BUILDING MANAGEMENT
    SYSTEM CONTROLS

    • Integrated Process and Building Management
  • SOFTWARE
    SUPERVISION

    • Graphic Maps
    • System Management
    • Remote Control
  • PROCESS CONTROL
    INTEGRATION

    • Ethernet TCP/IP
    • Modbus
    • Object Linking and Embedding for Process Control (OPC)
    • Server and Supervisory Control and Data Acquisition (SCADA) Connect

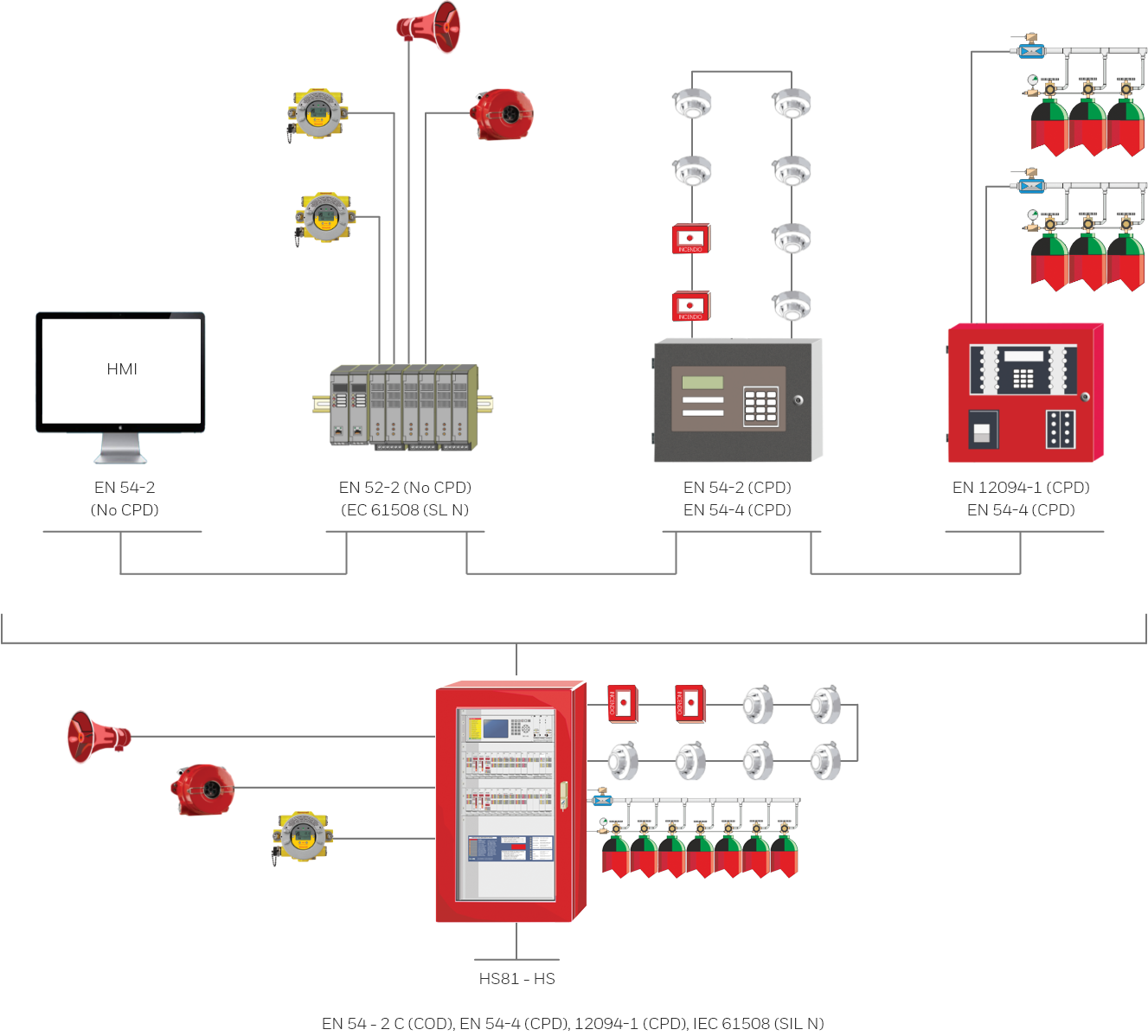

System Architecture
HS-81 Features
Honeywell’s HS-81 F&G Controller complies with fault tolerance requirements set by IEC61508. It is also capable of attaining a Safety Integrity Level 3 (SIL3 level) , the highest safety integrity level for most industrial operations.. In addition, the H-S81 offers these best-in-class features:
  • Hot backup redundant Central Processing Units (CPUs) eliminate downtime
  • Hot-swappable redundant CPUs and power supplies
  • Hot-swappable cards with automatic reconfiguration
  • Redundant and looped panel communication bus
  • Automatic testing of card inputs and outputs
  • Self-diagnostics and fault signalling of cards and CPU
  • Automatic safe disabling of malfunctioning cards
  • Supports redundant cards for fire and gas applications
  • Multiple protocol addressable detection systems

PRODUCT OFFERINGS

Comprehensive, all-in-one industrial F&G solution
Modular systems provide ongoing protection and reliable operational continuity for industrial, factory and military settings.

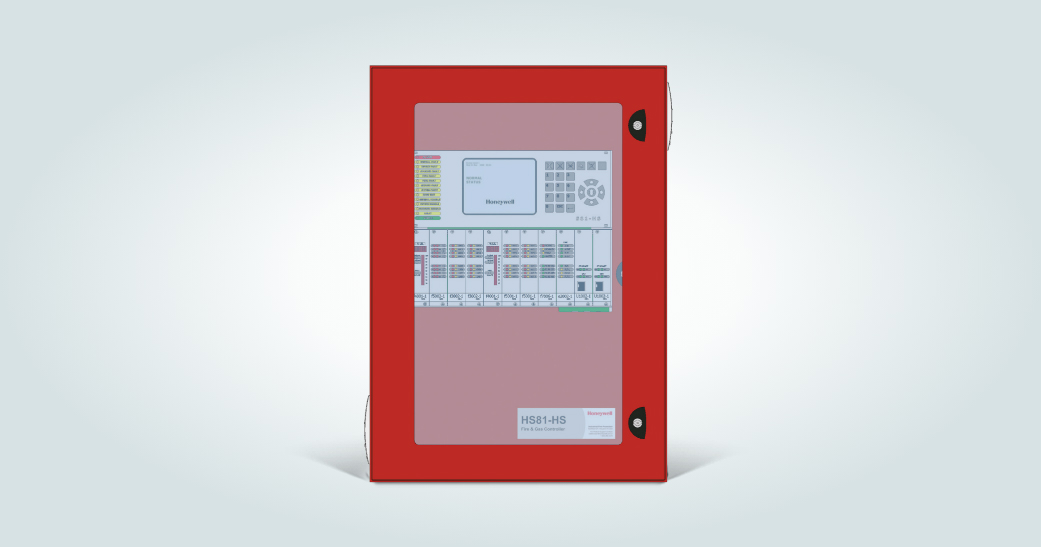

  • HS-81/HS/L
    Compact Panel (EN)

    The HS81-HS/L is the compact (EN) version of the HS81-HS with a single or double power supply, respectively. Designed to fit in tight spaces, the EN compact panel is also suitable for use in applications where a discreet, end-user friendly system is required. Like the HS81-HS, the EN panel provides an integrated industrial protection system that includes flame, gas and smoke detection; logic control and networking equipment; suppression and extinguishing capability; public address, sounders, beacons and other safety components.

  • HS-81/HS/C
    Compact Panel (UL)

    The HS81-HS/C is the compact (UL) version of the HS81-HS with a single or double power supply, respectively. Designed to fit in tight spaces, the UL compact panel is also suitable for use in applications where a discreet, end?user friendly system is required. Like the HS81-HS, the UL panel provides an integrated industrial protection system that includes flame, gas and smoke detection; logic control and networking equipment; suppression and extinguishing capability; public address, sounders, beacons and other safety components.

The Big Advantage – One Honeywell For All Your Needs
Comprehensive range of solutions designed for harsh industrial and marine environments – with the HS-81 Fire and Gas Controllers at their core.

FIELD DEVICES

  • Addressable Smoke and Heat Detector
  • IS Devices (ATEX-certified)
  • Conventional Field Devices, Smoke and Heat Sensors
  • Process Field Instruments: Flame and Gas Detectors
  • Large area coverage Field Sensors: BEAM Detectors and ASPIRATION Detectors

PANEL FIRE/GAS

  • Addressable Fire and Gas Controller
  • Addressable Fire Alarm Panel from Esser Honeywell
  • Addressable Fire Alarm Panel from NOTIFIER Honeywell

SERVICE AND CONTRACT

  • Honeywell process solution for turnkey package that includes PLC / DCS and F&G package
  • Honeywell-certified engineered system houses across the globe for fire / gas and extinguishing package
One product, many applications
Pharma
Onshore / offshore / FPSO Platforms
Petrochemical Plants
Power Plants
Metal Factories and Mines
