Superb PAVA
audio
Commercial-grade power amplifiers for superlative audio output even for the most demanding Public Address applications.

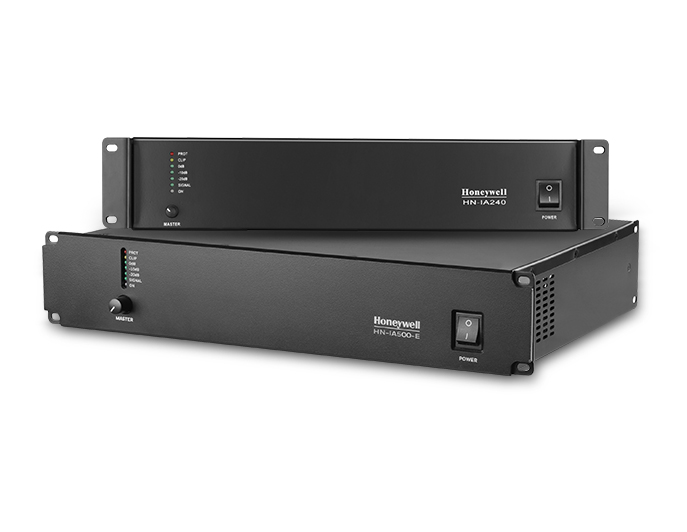

Booster Amplifier

Efficiently deliver up to 1000W of perfect audio output to enhance acoustic output in commercial applications like PA systems, theatres and concert halls. These products come with Honeywell’s unstinting guarantee of quality, reliability and world-class performance, no matter where they are installed or used.

Product Offerings

The perfect accessory for Public Address and Voice Alarm applications
The must-have accessory for even the most demanding PAVA needs, delivering up to 1000 Watts of superb audio without compromise!

HN-A660

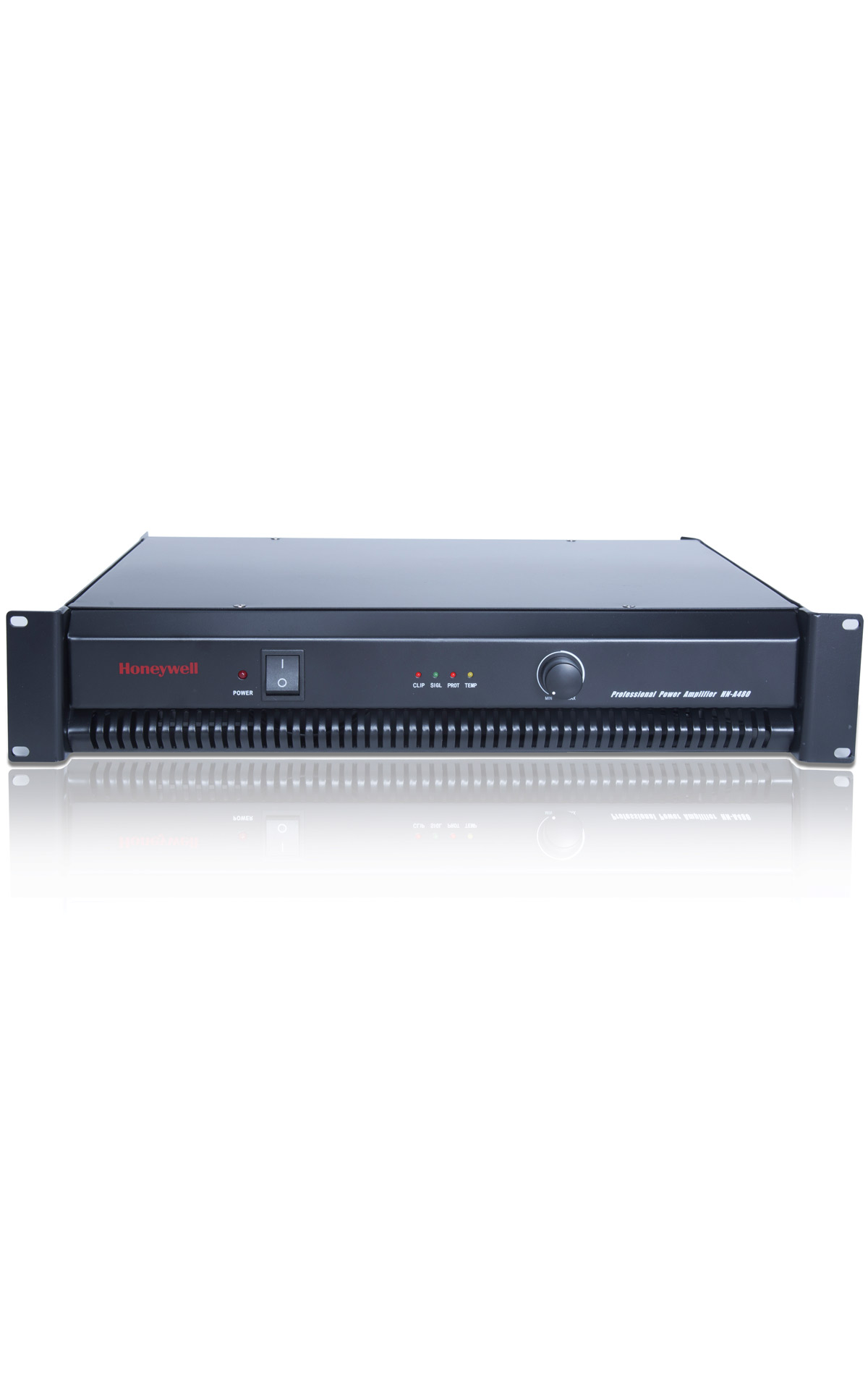

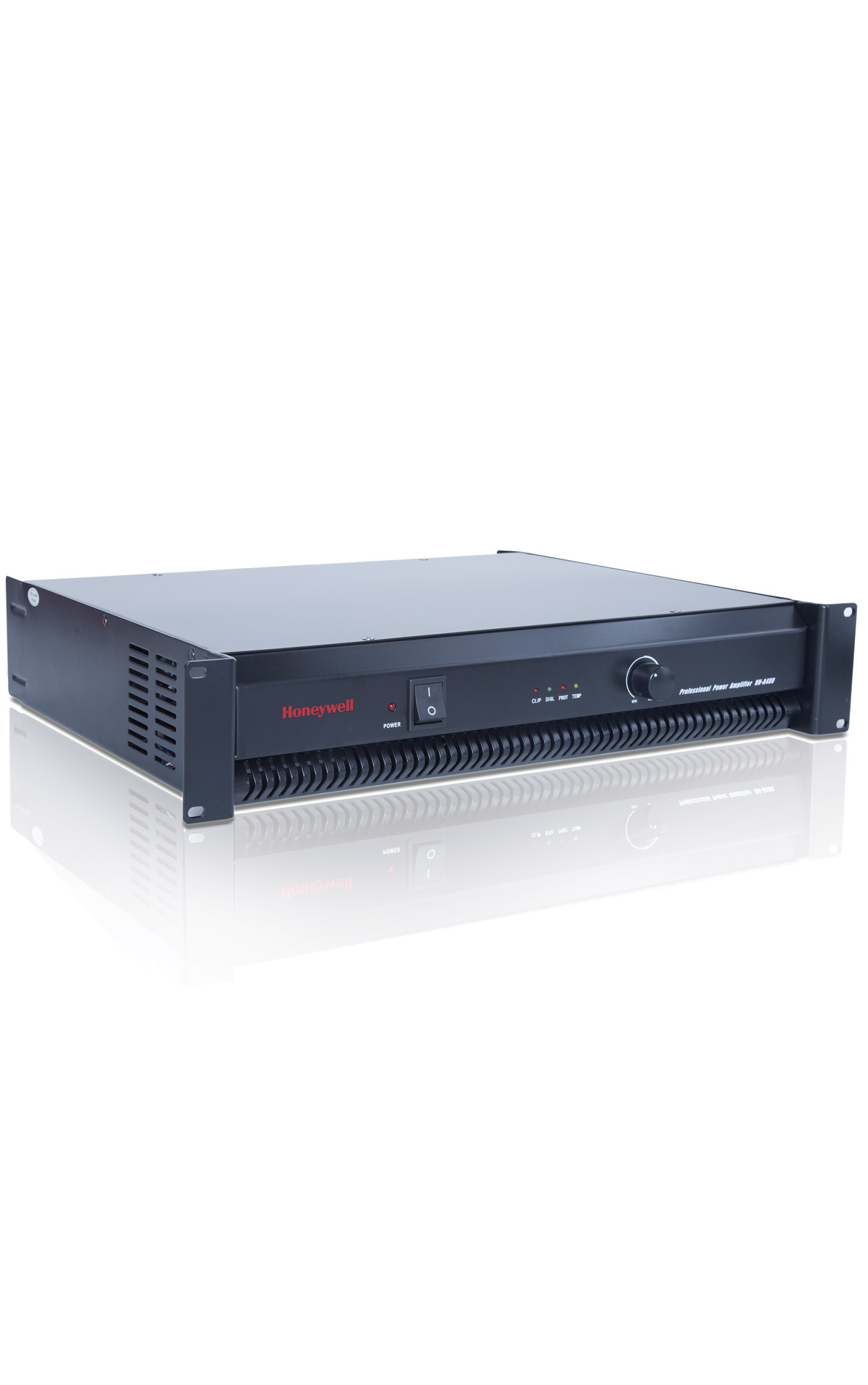

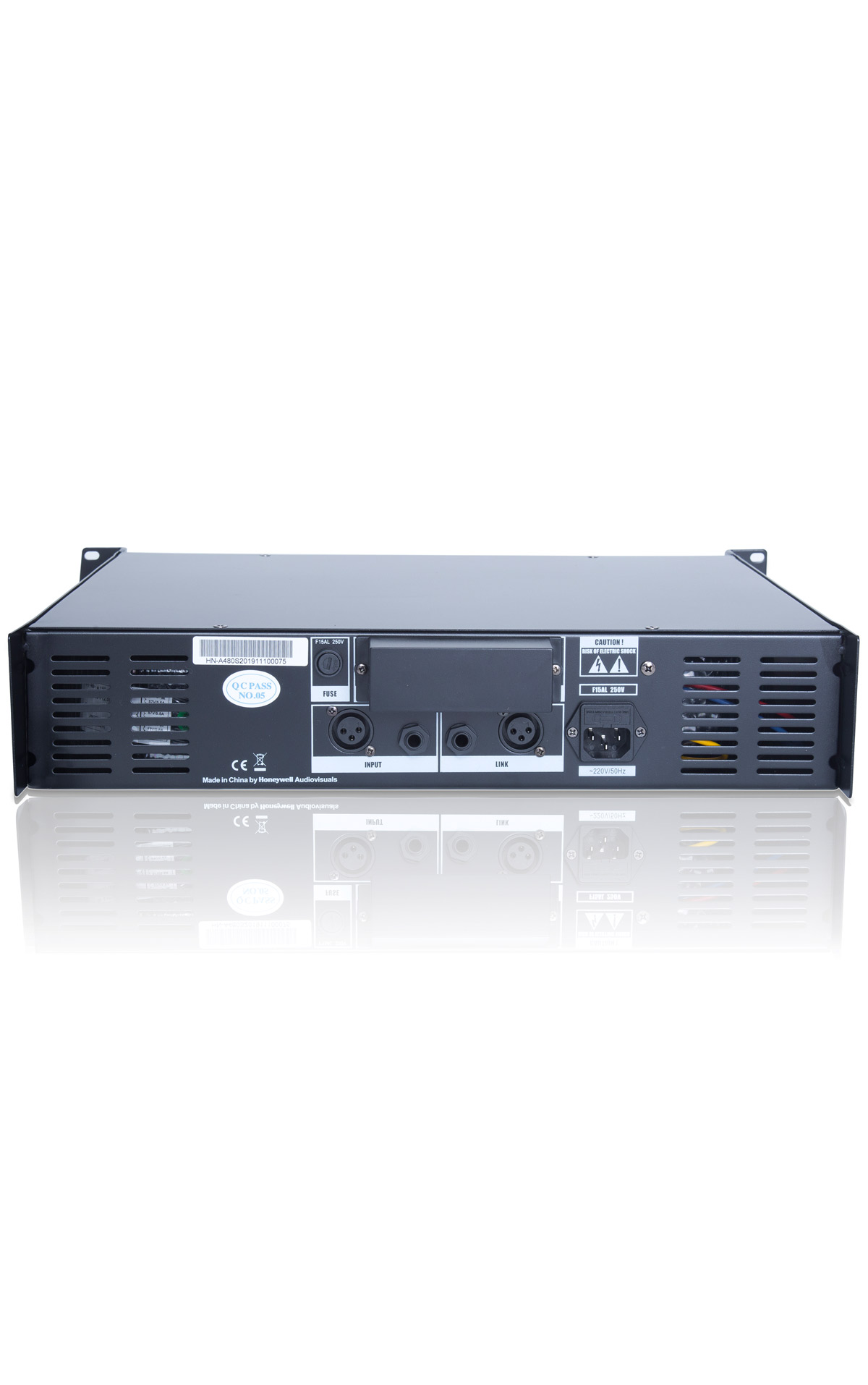

Power Amplifier

The HN-A660 efficiently delivers up to 660 Watts of clean, reliable audio for public address applications. Ruggedly designed, this power amplifer offers features like LED status indicators, speaker output short circuit protection, extensive heat-sinking and fan cooling.

FEATURES
  • 660W
    Rated Power
  • 4 ~ 16 Ω Low - Z output 660 W, 70 V ( 7.4 Ω ) 100 V ( 15.1 Ω )
    Speaker Output
  • <1 V , unbalanced
    Line Input
  • 1 V unbalanced
    Line Output
  • 200
    Damping Factor
  • >80dB
    S/N
  • Specifications
  • Ordering Info
  • Resources
Model No. HN-A660
S/N > 80dB
Dimensions 89 (H) × 483 (W) × 366 (D)mm
Rated Power 660W
Frequency response 60 Hz ~ 15 kHz ( ± 3 dB )
Power Requirements AC 220 V / 50 Hz
Speaker Output 4~16Ω Low-Z output 660W,70V(7.4Ω) 100V (15.1Ω)
THD <0.5 % at 1 kHz, 1/3 rated power
Controls Volume control and power switch
Cooling DC12V fan , extensive heat sinking
Indicators Power,Clip,Signal,Protect, and Temp
Protection AC Fuse × 15 A
AC FUSE×1, Current limiter, short circuit and thermal protection circuits
Power Consumption 880W
Net weight 21.36Kg
Gross weight 19.74Kg
Power Requirements AC 220 V / 50 Hz
Line Input <1 V , unbalanced
Line Output 1V unbalanced
Damping Factor 200
Power Cable (3×1.5mm²)×1.5M(standard)
Packing Dimensions 185 (H) × 520(W) × 435 (D)mm
Model No. HN-A660
Description Power Amplifiers
Documentation Size Release Date File Type Download
Datasheet 144.38 KB 06.11.2020 pdf Download
