All safety,
no compromise
Feature-rich offering delivers unmatched protection and efficient operations as part of a comprehensive life safety system.

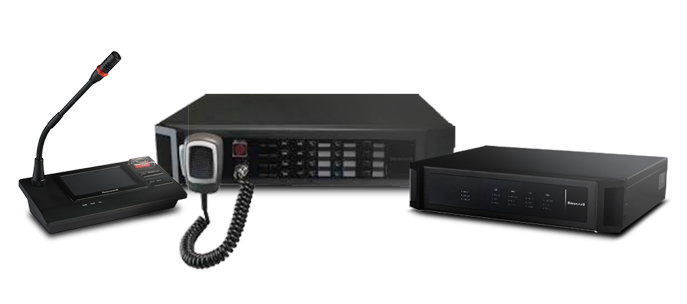

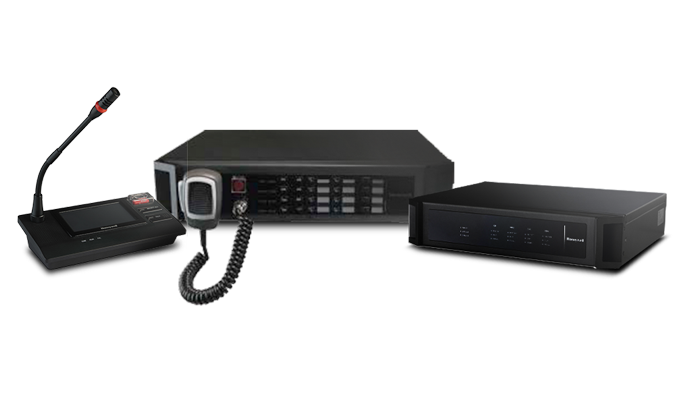

X-618

Compliant with EN54-16, the European standard for Voice Alarm Systems, the X-618 is the most credible PAVA solution for public settings. Multiple world-class technologies such as Honeywell’s Advanced System Diagnosis (ASD), SIM loudspeaker line supervision and RiskFree dynamic backup lend robustness to these systems and help keep costs down all the way from early procurement to later maintenance.

Product Offerings

Ideal for 5-star hotels, premium office buildings, shopping malls, sport stadiums and exhibition halls
Super flexible and packed with features for creditable digital PAVA performance, efficient operations and unmatched safety.

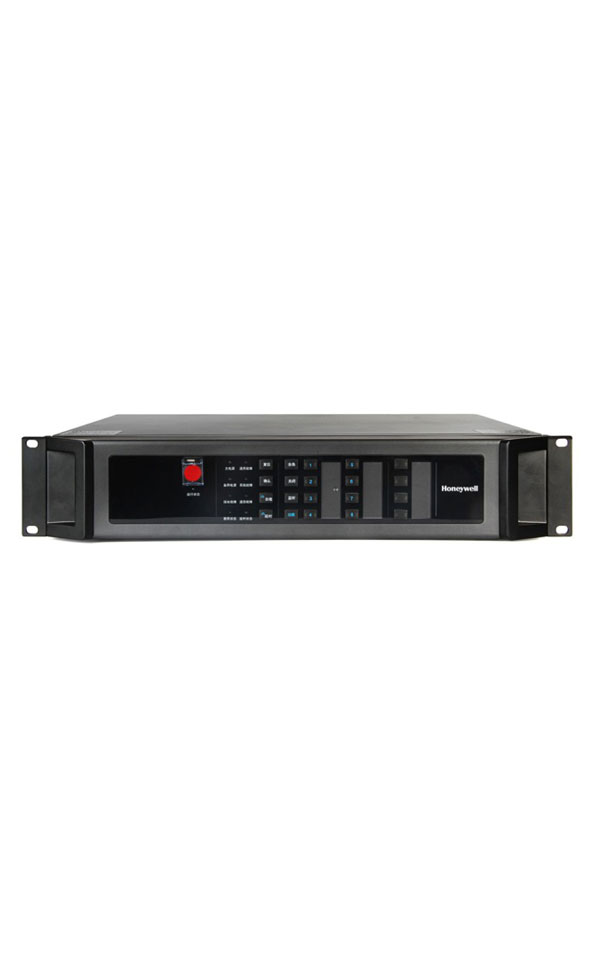

X-DCS2000

Digital Integrated System Manager

X-DCS2000 Digital Integrated System Manager (abbr.DCS) is the basic unit of X-618 Public Address and Voice Alarm System. DCS integrates plentiful functions such as zone expansion, multiple audio sources support, audio file storage, net audio,broadcasting, zone control, monitoring, fault diagnosis etc. With powerful audio matrix structure, X-DCS2000 is capable of bringing value to big infrastructures in terms of saving extension and cabling.

FEATURES
  • 482 mmx88 mm x420mm
    Dimension (W x H x D)
  • DC 21.5V-28.5V
    Backup power supply voltage
  • AC 100-240V, 50/60Hz
    Main Power Supply Voltage
  • 50W
    Rated Power
  • 580mmx235mm x552mm
    Packing Dimension (W×H×D)
  • 12.5Kg
    Gross Weight
  • Specifications
  • Ordering Info
  • Resources
Model No. X-DCS2000
Dimension (W x H x D) 482 mmx88 mm x420mm
Backup power supply voltage DC 21.5V-28.5V
Main Power Supply Voltage AC 100-240V, 50/60Hz
Rated Power 50W
Packing Dimension (W×H×D) 580mmx235mm x552mm
Gross Weight 12.5Kg
Main Power Supply Fuse T2AL250V
Auxiliary input Frequency response 60Hz-16KHz (local input signal)
Auxiliary Input SNR >85dB
Loudspeaker Circuit Channels 8 (with circuit fault detection)
Audio Output Channels 8 channels main power amplifier,
2 channels standby power amplifier,
2 channels auxiliary output
Audio Output signal 1.2V(<1.6dBV)
Audio Output THD <0.06%
Contact Inputs 8(with circuit fault detection)
Contact Outputs 8 outputs (NO, NC and COM)
Auxiliary input Channels 3
Auxiliary Input impedance 10KΩ
DCL Inputs Channels 8
DCL Module Number 5 modules per channel
DCL Module Type Noise Detector, EOL module
Loudspeaker circuit Output Voltage 100V
Memory Capacity 1 GB (606MB for audio files)
Loudspeaker circuit Max. Output load power 500W
Humidity <95%, without condensing
Maximum voltage of the outputs 250V AC / 30V DC
Storage Temperature -40 °C ~ +70 °C
Maximum current of the outputs 2.5A
Ethernet interface 10M/100M
Net Weight 9.3Kg
Ethernet switching 4 ports
Working temperature -10 °C ~ +55 °C
Auxiliary input AUX1 : 0dBV ( 1V)
AUX2: 3: -40dBV-0dBV
Audio Output Record output 1V(0dBV)
Monitoring Loudspeaker 10W/8Ω
No Order Info Available
Documentation Size Release Date File Type Download
Datasheet 1084.58 KB 18.05.2022 pdf Download


Applications Areas

One product, many applications
5-Star Hotels
Office Buildings
Malls
Stadiums
Exhibition Halls
