A robust solution that offers a high level of security, stability and user-friendly access

CONTACTLESS EM CARD READER

The JT-series EM Card Readers are the latest entrants to Honeywell’s stable of high-performance, high- quality access control devices. Each reader scans keypad entries and then transmits the data to the host system via Wiegand data lines for quick data transfer that enables accurate, on-time decision-making. Operating at 125KHz frequency, these readers are perfect for security managers, dealers and integrators looking for readers that seamlessly integrate with their access control systems.

PRODUCT OFFERINGS

Consistent read range in an easy-to-install package
Robust, affordable and seamlessly integrated with access control systems that enforce a higher level of security with stability and reliability.

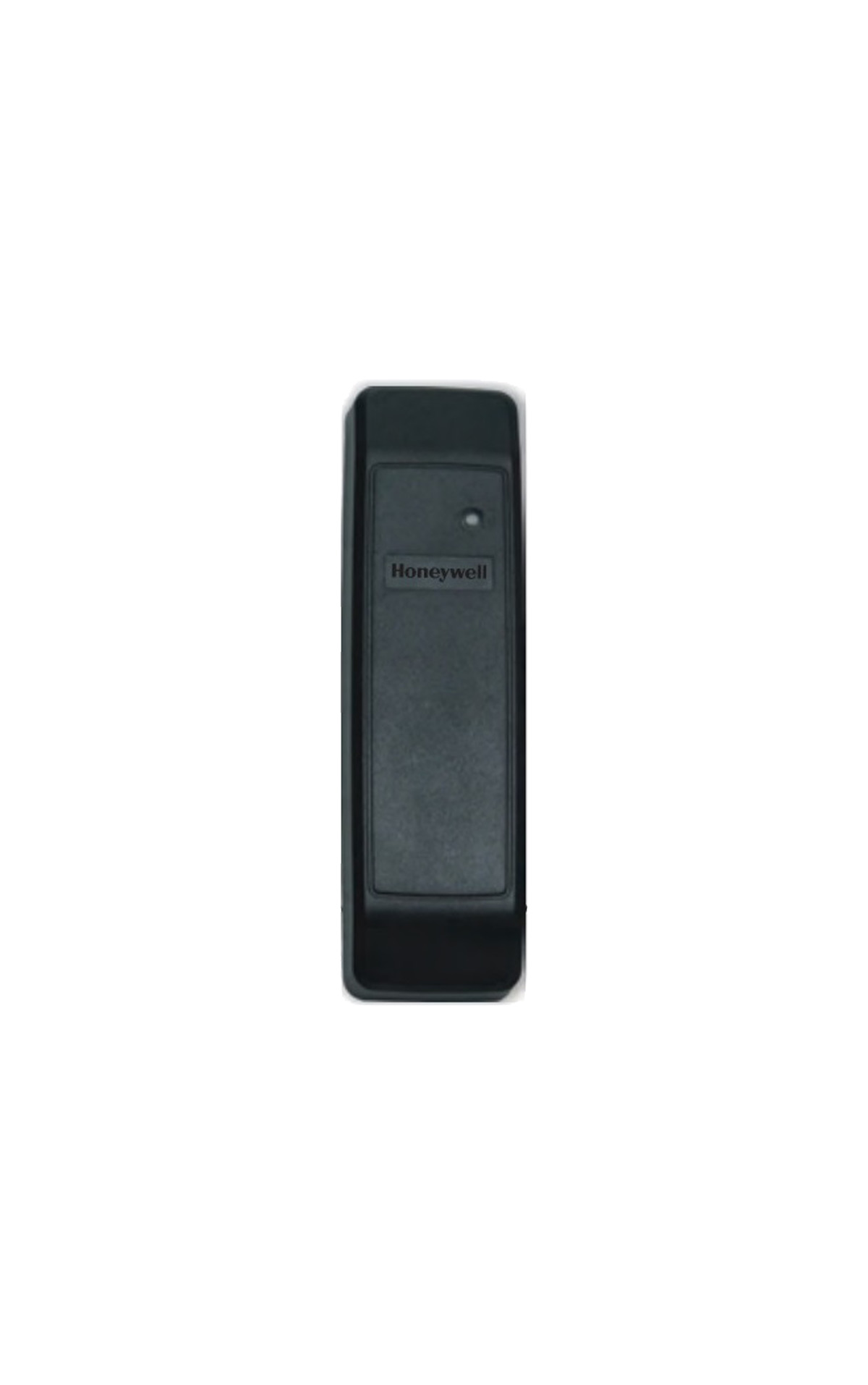

JT-MCR30-ID

125KHz contactless EM card reader: 5.71” x 1.69”x 0.91”

The affordable yet user-friendly JT-MCR30-ID EM Card Reader offers a surprising yet unbeatable mix of features for commercial access control installations. For applications that require a high level of security along with stable and reliable operations, this card reader from Honeywell is the best in its class.

FEATURES
  • Read range up to 2.4 inches
  • Built-in audible buzzer
  • Host LED control
  • Wiegand output interface
  • Hidden mounting screws deter vandalism
  • Specifications
  • Resources
Model No. JT-MCR30-ID
DIMENSION 5.71 x 1.69 x 0.91in.(145 x 43 x 23mm)
MAX. READ RANGE1 2.0~2.4in.(5~6cm)
FREQUENCY 125KHz
REGULATORY APPROVALS USA FCC part 15B, Europe: CE (UL294 applied for)
READ Card ID Only : EM RF ID
OPERATING TEMPERATURE -31°C to 60°C
OPERATING HUMIDITY 0 to 95%
POWER SUPPLY TYPE Linear or Switching (Ripple < 30 MHz, Max 50 mVss)
OPERATING VOLTAGE RANGE 8 ~16 VDC
CURRENT 120 mA Max.
OUTPUT INTERFACE Wiegand
WARRANTY Limited lifetime warranty
Documentation Size Release Date File Type Download
Datasheet 355.77 KB 08.12.2020 pdf Download
