Uncompromising
safety
For unstinting surveillance performance even in hazardous or challenging environments, this series is an excellent choice.
Get Quote

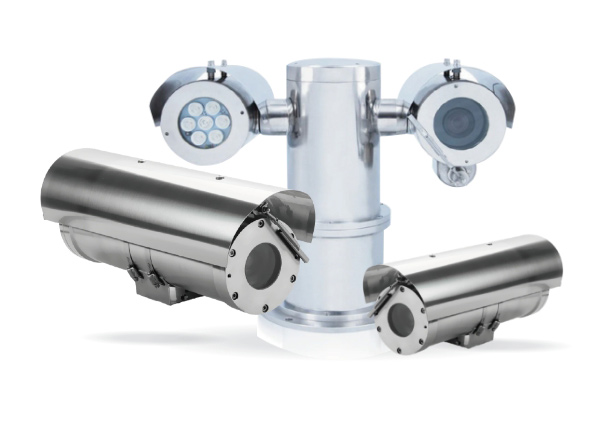

Made in India Explosion-proof IP Cameras

Specially designed for use in hazardous industrial environments, Honeywell’s range of explosion-protected network cameras come in IECEx- certified AISI 316L stainless steel housing. This housing prevents interior sparks or explosions from escaping and igniting the dust or gases in the surrounding air. This rugged construction enhances the camera’s superb surveillance capabilities, with 2MP and 5MP resolution options, 30x optical zoom and True Day/Night WDR for continuous operation in both hazardous and safe applications.

Honeywell Explosion Proof IP cameras contain no content or material from any companies, or their subsidiaries prohibited under US National Defense Authorization Act (NDAA) section 889 and can be used as part of video systems which comply with NDAA section 889.

PRODUCT OFFERINGS

Exproof camera with 30x zoom with built-in video analytics and multiple connectivity choices (RJ45 or/and Optical Fiber) features expected from a high-performing surveillance camera with rugged AISI 316L housing and water-resistant IP68 rating for challenging environments.

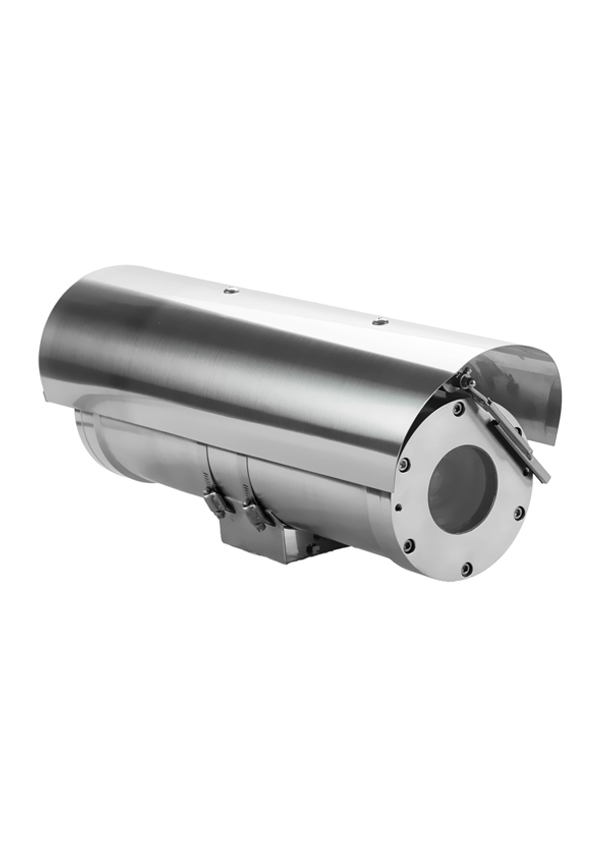

HEICC-23X1T

2MP 30x Zoom Explosion-Proof IP Camera

Honeywell’s latest explosion-protected and flameproof network camera is a good fit for onshore, offshore, marine, and heavy industrial installations in hazardous and challenging environments. The camera features a 316L stainless steel housing certified for hazardous areas according to IECEx. The housing prevents any interior sparks or explosions from escaping and igniting the gases or dust in the surrounding air. The HEICC-2301T and HEICC-2321T camera provide extremely crisp video with up to 2 million effective pixels, 30x optical zoom, and True Day/Night WDR for continuous surveillance in both hazardous and safe area applications. This product comply with the Essential Health and Safety Requirements relating to the design and construction of products intended for use in potentially explosive atmospheres.

FEATURES
  • 2MP high resolution camera to capture more details
  • 4.5–135 mm, F1.6–F4.3, P-Iris, 30x optical zoom lens
  • Global language support with web GUI in 14 languages
  • 1/2.8" progressive scan image sensor
  • Excellent low light performance with min. illumination of 0.005 lux Color
  • Specifications
  • Ordering Info
  • Resources
Model No. HEICC-23X1T
OPERATIONAL
VIDEO STANDARD NTSC/PAL
SCANNING SYSTEM Progressive
IMAGE SENSOR 1/2.8” CMOS
SENSOR SIZE (H X V) 5.184 x 3.888 mm
NUMBER OF PIXELS (H × V) 1920 x 1080
MINIMUM ILLUMINATION 0.005 lux (Color), 0.0005 lux (B/W) @F1.6
S/N RATIO 50db
ELECTRONIC SHUTTER SPEED 1/1 to 1/30,000 sec
DAY/NIGHT Auto (ICR) / Color / BW
BACKLIGHT COMPENSATION WDR / BLC / HLC
WHITE BALANCE Auto/Fixed Current/Manual
GAIN CONTROL 0~100%
WIDE DYNAMIC RANGE 130dB
NOISE REDUCTION 3D DNR
LENS 4.5 – 135mm, P-Iris, F1.6-F4.3
OPTICAL ZOOM 30X
DIGITAL ZOOM 16X
ELECTRONIC IMAGE STABILIZATION Support
ANGLE OF VIEW H: 62.35° – 2.53°; V: 37.87° – 1.79°
PRIVACY MASKING Off / On (up to 5 Areas)
DEFOG Support
LOCAL STORAGE Support for MicroSD up to 256GB
ALARM INPUTS / OUTPUTS 2 Alarm In 2 Alarm Out (include 1 dedicated alarm out for washer control)
PRESET 2 for Wiper and Washer control
RESET FUNCTION Hard-wire reset terminal
VIDEO
VIDEO COMPRESSION H.265 HEVC/H.264/MJPEG, Smart Codec
RESOLUTION 1st:1920x1080/1280x720@50/60fps 2nd:1920*1080/704*576(PAL)/704*480(NTSC)/640*4 80/352*288(PAL)/352*240(NTSC) @25/30fps 3rd:640*480/352*288(PAL)/352*240(NTSC)/320*240 @25/30fps
NUMBER OF VIDEO STREAMS 3
FRAME RATE MAIN STREAM Max 60fps
FRAME RATE SECOND STREAM Max 30fps
FRAME RATE THIRD STREAM Max 30fps
BIT RATE 100K~12Mbps (15K~2Mbps for encryption)
AUDIO
AUDIO COMPRESSION G.711a/G.711Mu
AUDIO STREAM 2-Way, Full duplex
AUDIO INTERFACE Line In/Out
NETWORK
ETHERNET 10 Base-T/100 Base-TX Ethernet (RJ-45) Optional FC Optical Fiber
SUPPORTED WEB BROWSERS Chrome/Edge
SUPPORTED OS Microsoft Windows 10
PROTOCOLS IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
INTEROPERABILITY ONVIF Profile S/G/T
MAXIMUM USERS ACCESS 10 Users
SECURITY User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed
LANGUAGES SUPPORTED Arabic, Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish
EVENTS / ANALYTICS
VIDEO ANALYTICS People counter, Multi Loitering, Intrusion, Tampering, SMD, Motion Detection
EVENT TYPE Video motion detection, Alarm input, Recording notification, Tampering
EVENT LINKAGE Event notification using digital output, Email and MicroSD card
ELECTRICAL
POWER SUPPLY 100~240V AC, 50/60 Hz
POWER CONSUMPTION Max 0.5 A
MECHANICAL
DIMENSIONS (W X D X H) 177 x 522 x 217 mm
PRODUCT WEIGHT 14 kg
PACKAGE WEIGHT 16 kg
HOUSING 316L Stainless Steel
ENVIRONMENTAL
OPERATING TEMPERATURE -40°C ≤Ta≤+60°C
RELATIVE HUMIDITY Upto 95%, non-condensing
INGRESS PROTECTION IP66, IP67, IP68
HEATER Built-in
WIPER Supported
WASHER CONTROL Supported
REGULATORY
HAZARDOUS CERTIFICATIONS IECEx Ex db IIC T6 Gb IECEx Ex tb IIIC T80°C Db CCoE
STANDARDS IEC 60079-0:2017/COR1:2020 IEC 60079-0:2017/ISH1:2019 IEC 60079-0:2017/ISH2:2019 IEC 60079-1:2014/ISH1:2020 IEC 60079-1:2014/COR1:2018 IEC 60079-31:2013 IEC 60079-28:2015/ISH1:2019
ENVIROMENTAL CERTIFICATIONS IEC 60068-2-1 (Cold test) IEC 60068-2-2 (Dry Heat Test) IEC 60068-2-30 (Damp Heat Test) QM333:2010 (Corrosion Salt Test) IEC 60068-2-14 (Change in Temperature Test) QM333 (Vibration Test) IEC 61373:2010 (Shock Test)
COUNTRY OF ORIGIN INDIA
SYSTEM INTEGRATION*
PRO-WATCH NVR Up to 256 IP channels RAID 5/6 NVR
PRO-WATCH NVR SOFTWARE Up to 256 IP channels Recording Software
MAXPRO NVR CE Multi channel RAID 5/6 solution
MAXPRO NVR PE Up to 128 IP channels RAID 5/6 NVR
MAXPRO NVR SE Up to 64 IP channels System NVR
MAXPRO NVR XE Up to 16 IP channels System NVR
MAXPRO NVR SOFTWARE Up to 128 IP channels Recording Software
HONEYWELL DVM Support with Honeywell DVM R710.1 (and later maintenance releases)
OPTIONAL MOUNTS AND ACCESSORIES
HEI-SD 256GB MicroSD Card for Exproof IPC
HEICC-WM 316L Stainless Steel Wall Mount Bracket for Exproof Fixed Zoom camera
HEICC-PM 316L Stainless Steel Pole Mount Adaptor for Exproof Fixed Zoom camera, for use with HEICC-WM
HEICC-CM 316L Stainless Steel Pole Mount Adaptor for Exproof Fixed Zoom camera, for use with HEICC-WM
HEICC-NB 316L Stainless Steel Nozzle bracket assembly for Exproof Fixed Zoom camera



Model No.
HEICC-2301T WDR 2MP Exproof Fixed Zoom, 30x Zoom, Wiper, RJ45 Interface, Unarmoured cable 10 Mtrs, 100~240 VAC
HEICC-2321T WDR 2MP Exproof Fixed Zoom, 30x Zoom, Wiper, RJ45 and FC Fiber Optical Interface, Armoured cable 10 Mtrs, 100~240 VAC
Documentation Size File Type Download
Datasheet 528.59 KB pdf Download

One product, many applications
onshore and offshore marine
Oil and gas
Paper Factory
Textile Industry
Coal Mines
