Multiple applications
A broad range of loudspeakers deliver superb sound effects for a variety of general indoor applications.

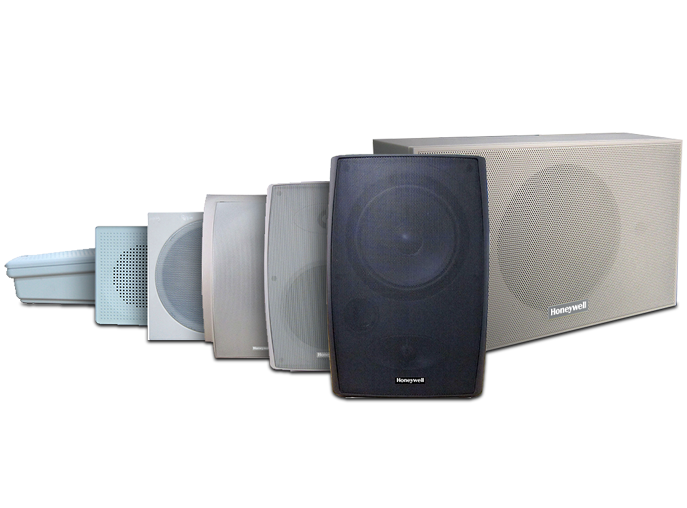

Cabinet Loudspeaker

For high-fidelity sound across a range of frequencies, explore Honeywell’s range of fully-certified cabinet loudspeakers!

Product Offerings

Modern design and fuss-free installation
Easy to install and use, these loudspeakers deliver lucid treble performance and powerful bass output – perfect for general indoor applications.

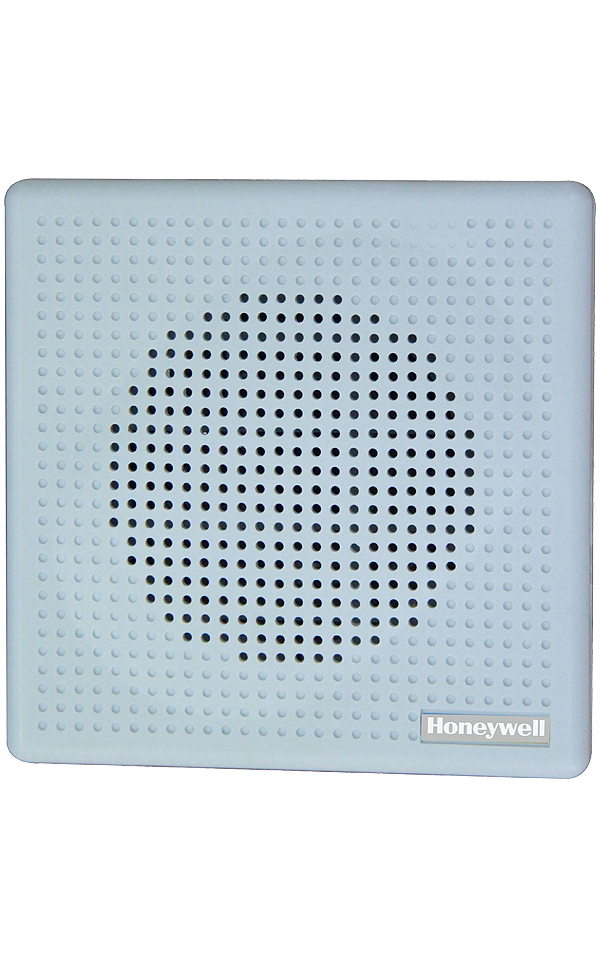

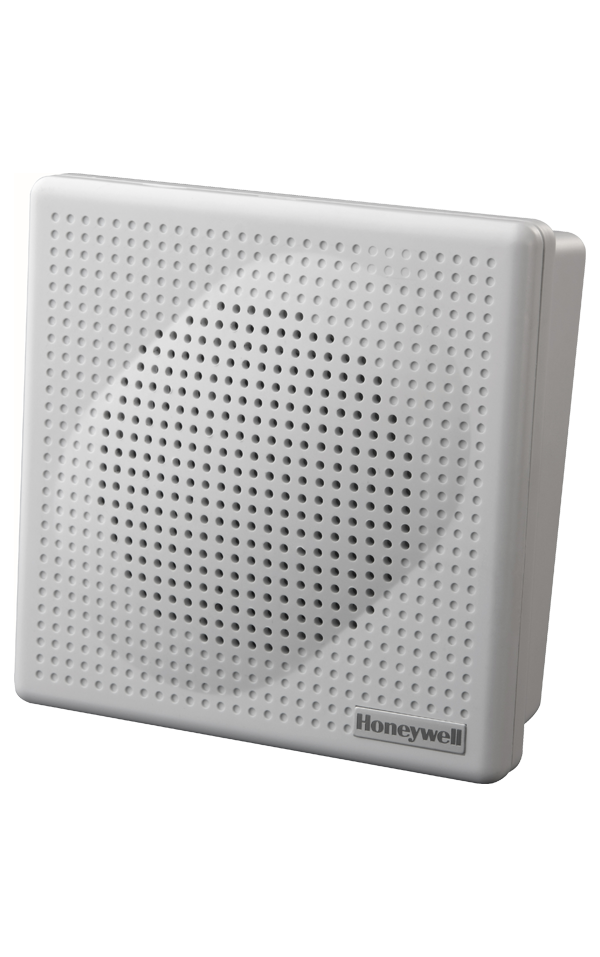

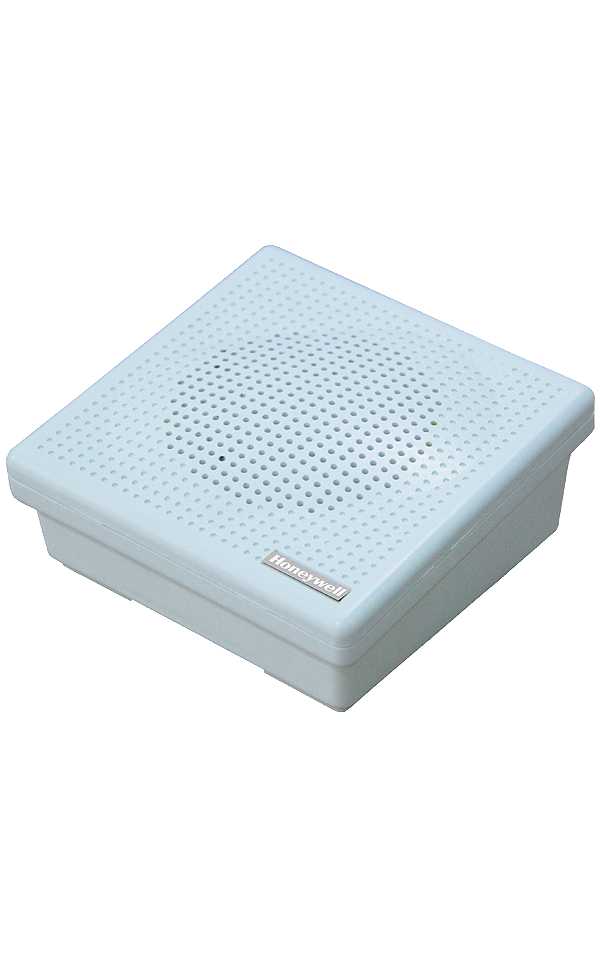

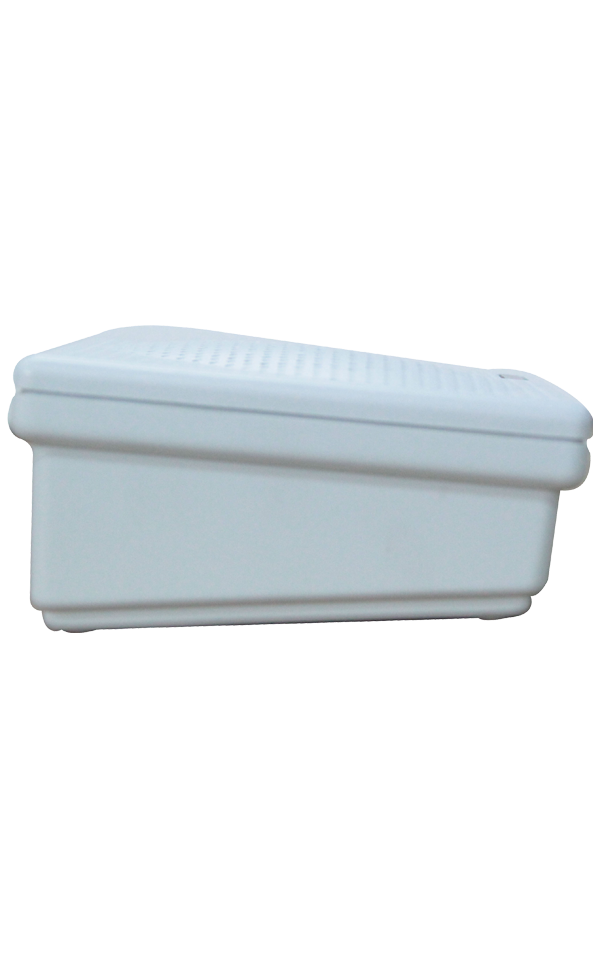

L-PWP03A

ABS Moisture-proof Cabinet Loudspeaker (3W rated power)

The L-PWP03A offers unbeatable yet cost-effective performance thanks to its water-proof cone and high-strength/fire-proof ABS enclosure. It is easy to install, CE/RoHS-compliant and compact in design.

FEATURES
  • 5 W
    Max power
  • 3 W
    Rated power
  • 3 W / 1.5 W
    Power taps @ 100 V
  • 1.5 W / 0.75 W
    Power taps @ 70V
  • 94 dB / 88 dB
    SPL at 3 W / 1 W ( 400 Hz - 5 kHz, 1 m )
  • 300 Hz - 6 kHz
    Frequency response ( -10 dB )
  • Specifications
  • Ordering Info
  • Resources
Model No. L-PWP03A
Frequency response(- 10 dB) 300 Hz - 6k Hz
Rated Power 3 W
Max Power 5 W
Rated Impedance 3.3kΩ / 6.7kΩ
Dimensions (W x H x D) 120 × 130 × 60 mm
Color White ( RAL9003)

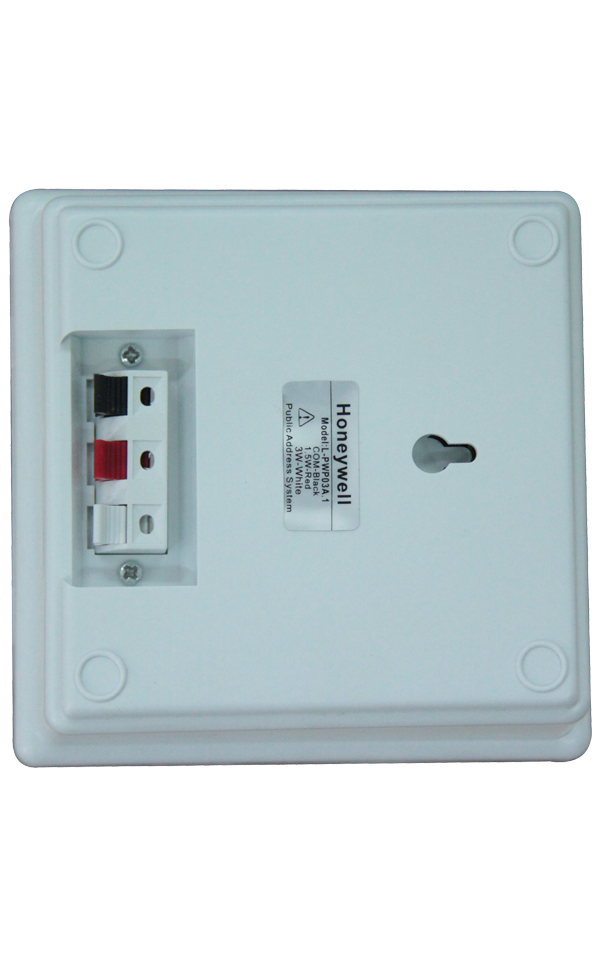

Connector Push-in terminal block
Power taps @ 100V 3 W / 1.5 W
Power taps @ 70V 1.5 W / 0.75 W
Dispersion angle(1k HZ / -6db) 180°
Rated input voltage 100 V / 70 V
Diameter of speaker 3”
Weight 0.4kg
Weight of magnet 48 g
SPL at 3W / 1W ( 400Hz-5kHz, 1m) 94 dB / 88 dB
Model No. L-PWP03A
Description Cabinet Speakers
Documentation Size Release Date File Type Download
Datasheet 2356.98 KB 06.11.2020 pdf Download


Applications Areas

One product, many applications
Corporates
Hospitals
Shops
Schools
