Full-featured NVRs For
Comprehensive Video Security
Part of Honeywell’s range of affordable, high-res Embedded NVR solutions

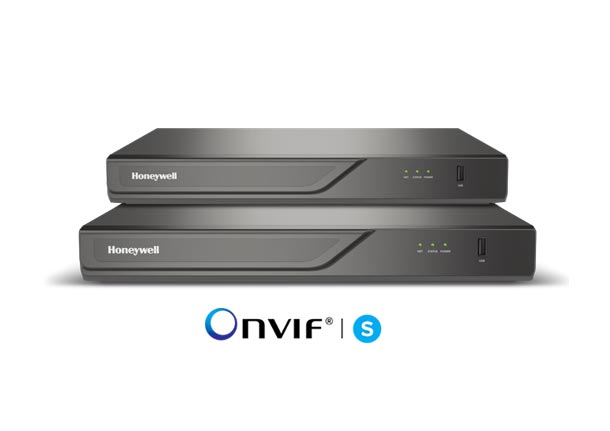

SERIES 30 RECORDERS

Introducing Honeywell’s 30 Series Embedded NVRs, perfect for use as part of video security systems for a wide range of applications. These feature-rich NVRs offer 4K HD (UHD) video resolution. Choose between 8- or 16-channel NVRs, each offering multiple hard drive options and ease of use. These devices comply with NDAA 2019, Section 889 (U.S.).

PRODUCT OFFERINGS

Provide flexibility and reliability for any kind of video surveillance system
With unbeatable features like high decoding capability, 4K Ultra HD viewing/recording and de-warp fisheye camera video as well as dynamic, accessible monitoring, the 30 Series recorders from Honeywell are ideal for applications where video security is preferred or even required.

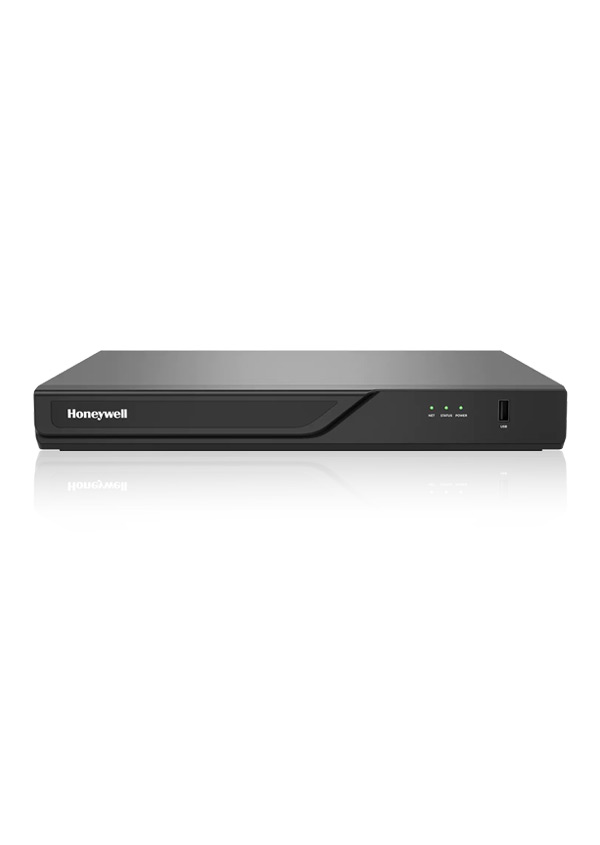

HN30080200

8-Channel NVR 4K (8 MP), 0 TB

Offering high decoding capability for 4K Ultra HD (UHD) viewing and recording as well as up to 8 MP (4K) resolution live view and playback, the HN30080200 Embedded NVR is Honeywell’s newest addition to its broad IP recorder range. With this device as part of your premises’ video surveillance system, you can view 1 to 4 channels simultaneously with synchronised real-time playback on your monitor. The NVR is PCI-DSS compliant, supports H.265 HEVC smart codec/H.264/MJPEG Video Codec, and offers bandwidth-saving features like dynamic intra frame period together with Honeywell’s 30/60 series cameras.

FEATURES
  • De-warp fisheye camera video in NVR local, web client, HVMV and HVMV mobile APP for 360 degree situational awareness
  • Received People Detection Notification for efficient and effective protection
  • Simple remote configuration through Honeywell Video Management Viewer (HVMV)
  • Supports up to 4 alarm input channels and 1 alarm relay output
  • Quick wizard for convenient setup
  • For use as part of Video Systems which comply with NDAA Section 8
  • Specifications
  • Ordering Info
  • Resources
Model No. HN30080200
SYSTEM
MAIN PROCESSOR ARM Processor
OPERATING SYSTEM Embedded LINUX
CAMERA INTEGRATION ONVIF Profile S
USER MANAGEMENT User level: administrator, regular user
LOG System, Recording, User, Error
DATE&TIME Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
FAN Yes
SECURITY Fips Chipsets built in, encrypted streaming & control
VIDEO
INPUTS 8 Channels
AUDIO
AUDIO 3.5 mm Line out x1
AUDIO FORMAT G.711, G.726
DISPLAY
INTERFACE HDMI x 1 (4K Max), VGA x 1 (1080P)
RESOLUTION 3840 x 2160, 1920 x 1080, 1280 x 720
DISPLAY SPLIT (HN300802XXX) 1x1, 2x2, 3x3, 1M+5, 1P+3, 1P+6, 2P+3, 3V
DISPLAY SPLIT (HN301602XXX) 1x1, 2x2,3x3,4x4,1M+5,1M+12, 1P+3, 1P+6, 2P+3, 3V
STREAM APPLICATION 1x1: Camera Stream 1 2x2: Camera Stream 2 3V: Camera Stream 2
3x3 and above: Camera Stream 3
MONITOR ENHANCEMENT OSD Display (NVR), OSD Display (Camera), Camera Information, Aspect Ratio
FISHEYE DEWARP Support on NVR local, web client, viewer & mobile app
PTZ OPERATION Direction control, home, iris, preset, patrol (group), Digital PTZ
RECORDING
COMPRESSION H.265 smart codec/H.264/MJPEG
RESOLUTION Up to 3840 x 2160
FRAME RATE 30 fps
RECORDING MODE Continuous, Schedule, Manual, Event
PRE-EVENT RECORDING INTERVAL 5 s (Max.10 s)
POST-EVENT RECORDING INTERVAL 20 s (Max. 300 s)
RECORDING STREAM Single
RECORDING THROUGHPUT total 64 Mbps, maximum 8 Mbps per Channel
VIDEO DETECTION AND ALARMS
EVENT Camera: Camera Alarm In/Out, Motion detection, People detection, Intrusion detecting, Tampering detection, Camera disconnection
System: System Alarm in/out, Disk failure, Disk full
EVENT ACTION Video recording, Send email, Buzzer, FTP, Camera Alarm Out, Pan-tilt-zoom, HTTP, System Alarm Out, Send to HVMV
ALARM INPUT 4
ALARM OUT 1
STORAGE
INTERNAL HDD Internal x 2 (3.5)
HDD MAX. CAPACITY 10 TB per drive
MANUAL BACKUP USB Dongle (FAT Format)
PLAYBACK AND BACKUP
SYNC PLAYBACK 1-4 channels depending on the video resolution and decoding capability
DECODING H.265/H.264: 3840 x 2160 @ 30 fps (1-CH)
2560 x 1920 @30fps (1-CH)
1920 x 1080 @ 120 fps (4-CH)
1280 x 720 @ 240 fps (8-CH)
720 x 576 @ 480 fps (16-CH)
SEARCH MODE Time search, Event Search
PLAYBACK FUNCTION Regular (play, pause, stop), play backwards, next /previous frame, go back 10 seconds, go forward 10 seconds, speed control, timeline, timeline scale, digital zoom
SNAPSHOT JPEG
NETWORK
ETHERNET 10/100/1000Mbps Ethernet (RJ-45) x 1 APIPA (If no external DHCP server)
POE (HN300802XXX) Support DHCP Server
802.3at/af compliant PoE ports x 8
POE (HN301602XXX) Support DHCP Server
802.3at/af compliant PoE ports x 16
DHCP SERVER Yes
SUPPORTED PROTOCOLS* IPv4, TCP/IP, HTTP, HTTPS, RTSP/RTP/RTCP, SMTP, DHCP, NTP, DNS, FTP, P2P
MAXIMUM NUMBER OF USERS 15
NETWORK THROUGHPUT Input and output total 128 Mbps
SMART PHONE COMPATIBILITY IOS 11 or later and Android 5.0 or later support
BROWERS IE 11, Chrome
AUXILIARY INTERFACE
USB PORTS Front x1; Back x1
ELECTRICAL
POWER SUPPLY 100-240 VAC, 50/60 Hz
POWER CONSUMPTION Max. 230 W; 14.29 W without HDD without PoE
Total PoE power consumption Max. 120 W, 30 W for a single port
ENVIRONMENTAL
OPERATING TEMPERATURE -10°C ~ 55°C (14°F ~ 131°F)
RELATIVE HUMIDITY 0 ~ 95 %
STORAGE TEMPERATURE –20°C to 70°C (-4°F ~ 158°F)
PHYSICAL
DIMENSIONS (WXDXH) 366 x 320 x 44.6 mm / 14.41 x 12.6 x 1.76 in.
WEIGHT (WITHOUT HDD) 3.52 kg / 7.76 lbs
REGULATORY
EMISSIONS FCC Part 15B, EN55032: 2015, EN61000-3-2: 2014, EN61000-3-3: 2013
IMMUNITY EN50130-4: 2011+A1: 2014
SAFETY EN62368-1:2014
UL62368-1, 2nd Ed, 2014-12-01
CAN/CSA C22.2 No. 62368-1-14, 2nd Ed
ROHS EN50581: 2012
Model No. HN30080200
HN30080200 8 Channels NVR 4K (8 MP) Support, H.265/H.264, 8 POE, stream encryption, 0 TB
Documentation Size Release Date File Type Download
Datasheet 881.54 KB 14.12.2020 pdf Download
