Flexible integrated
secure
Family of scalable video surveillance NVR, VMS and Client supporting Honeywell’s IP Cameras and integrated with numerous 3rd party IP cameras and encoders.

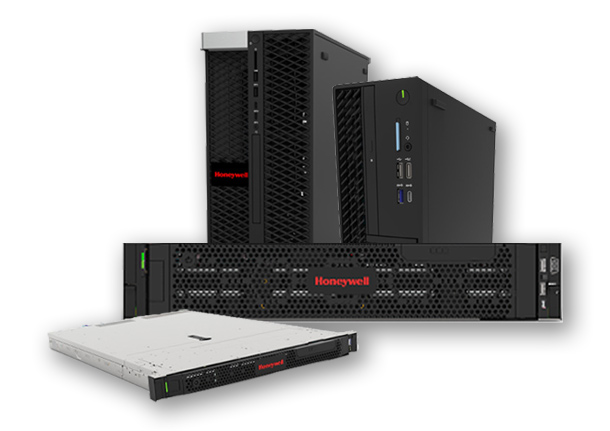

Maxpro Hardwares

MAXPRO NVR family is one of the most flexible, scalable and open IP video surveillance systems available today. Offered in Standard Edition (upto 64-channel) and Professional Edition (upto 128-channel), MAXPRO NVRs deliver powerful recording capabilities for small, medium and large applications
MAXPRO VMS is an intelligent solution with high flexibility for users to easily expand their video surveillance network from small to medium single instances to enterprise level supporting thousands of devices.
MAXPRO Client controls multiple sources of video subsystems to present video and manage alarms in a clear and concise manner

PRODUCT OFFERINGS

HNMSE00IB00T

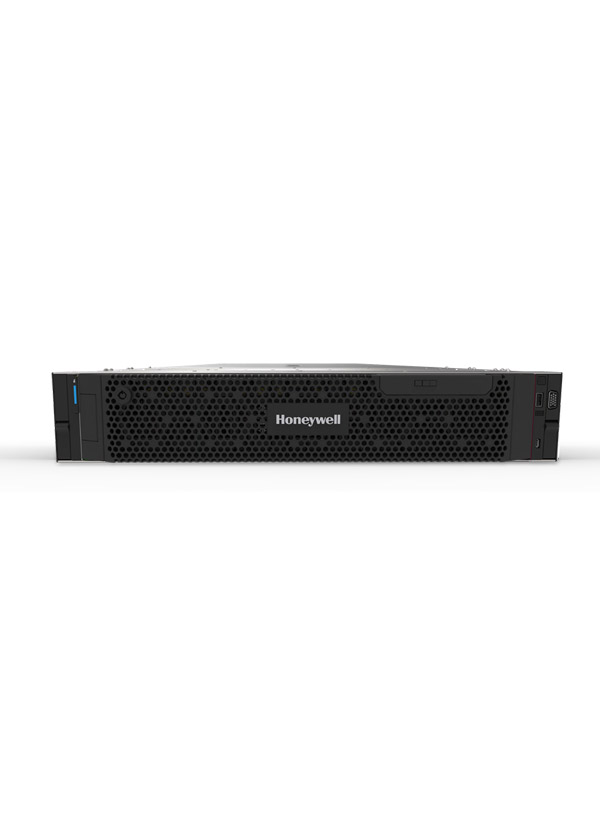

MAXPRO NVR: STANDARD EDITION (SE)

Honeywell’s MAXPRO NVR SE is an open, flexible and scalable IP video surveillance system. Utilising Honeywell’s high definition cameras, this NVR offers a powerful IP recording system and viewing client for small to medium-size surveillance installations.

FEATURES
  • Provides the processor and storage enclosure in one chassis, resulting in both space and cost savings
  • Record and monitor up to 64 channels at 1920 fps @ 4CIF/VGA or 1920 fps @ 720p HD or 1600 fps @ 1080p Full HD (4 Mbps bitrate) per MAXPRO NVR SE. Network bandwidth/throughput supported per NVR with Incoming: 256 Mbps, Outgoing: 320 Mbps; Total: 576 Mbps.
  • Archival support of 16 channels @ 4 Mbps bitrate each/64 Mbps total archival throughput capacity per MAXPRO NVR SE, with outgoing archival storage throughput of 200 Mbps
  • Multi-stream support with maximum 128 streams per
    MAXPRO NVR SE. Support for configuring 1 preferred stream
    for continuous recording and 1 preferred streamfor live video /
    motion based recording per camera
  • Specifications
  • Ordering Info
  • Resources
Model No. MAXPRO NVR: STANDARD EDITION (SE)
OPERATIONAL
MAXPRO NVR SOFTWARE - VERSION 6.3 OR ABOVE
DATABASE Microsoft® SQL Server® 2017 Express
OPERATING SYSTEM Windows 10 IoT Enterprise for Embedded Systems
IMAGE COMPRESSIONS SUPPORTED MJPEG, MPEG, H.264, H.265
SUPPORTED HONEYWELL IP CAMERAS AND ENCODERS Supports Honeywell’s Performance IP, equIP® Series, 30 SeriesIP cameras. Refer to: https://hwll.co/hota/
SUPPORTED THIRD PARTY IP CAMERAS AND ENCODERS Refer to the MAXPRO NVR Compatibility on https://hwll.co/hota/for a comprehensive list of compatible products to which this device is integrated.
AUDIO SUPPORT 1-way audio for specific IP camera models. Refer to: https://hwll.co/hota/
MAXIMUM NUMBER OF DESKTOP CLIENT CONNECTIONS Desktop Client - 38 per unit from 19 remote workstations + 2 local on NVR
SALVO LAYOUTS Desktop Client - Full, 2x2, 1x5, 3x3, 2x8, 1x12, 4x4.
Web Client - 2x2.1x1,1x2,1x3. Mobile app (Phone) - 2x2,2x4,1x2, 1x1. Mobile app (Tablet) - 3x3, 2x2, 1x1.
PICTURE CONTROLS PER CAMERA Sharpness, blur, brightness, contrast, hue, saturation, maintain aspect ratio, stretched, original size and picture mirror
OSD Concealed text option
PLAYBACK CONTROLS PER FWD/REV Play x (1, 2, 4, 8, 16)
Slow FWD/REV Play x (1/2, 1/4, 1/8)
SEARCH TYPES Time/date timeline, time jump FWD/REV, bookmarks, calendar, preview, film strip, event search and SMART Motion Search
RECORDING SCHEDULE Constant and event based with H/M/D and holiday and exception days
RECORDING METHODS PER CAMERA Constant, event based and user activated
LIVE SETTINGS PER CAMERA Compression format, resolution and frame rate
RECORD SETTINGS PER CAMERA Same as live or reduced frame rate
CLIP FORMAT Honeywell MPVC playable with standalone MAXPRO Clip Player for faster and secure exports. WMV with digital certificate for authentication playable with Windows media player. ASF for faster exporting of longer than an hour backup clips in native compression format.
VIDEO CLIP AUTHENTICATION Digital signature, verification tool provided
MOTION DETECTION LOCATION Camera based for supported models or Server based (SMART VMD) for all models (except 360 fisheye /panomorph views)
EVENT RECORDING Pre and post duration setting
OPERATOR REPORTING Per user, configurator, session and viewer
EVENT REPORT Per camera or recorder events
OPERATORS 1024
MAXPRO NVR SE HARDWARE
PROCESSOR Intel® Xeon™ W-2235, 3.8 GHz
Processor Chipset Intel® C422
MEMORY 16 GB (2x 8 GB) DDR4
OS DRIVE 256 GB M.2 SSD OS drive
STORAGE CAPACITIES 5 bays with max 12 TB SATA hard drives each
RAID CONTROLLER Broadcom MegaRAID® 9460-16i controller with 4GB cache memory
RAID LEVELS Support for 0, 1, 5, 6, 10, 50, and 60
NETWORK Two 1 GB Ethernet
FRONT AND REAR PANEL CONNECTIONS
PS2 Rear: 1 x Keyboard, 1 x Mouse
USB Front: 2x USB 3.1 Gen1 Type A, 2x USB 3.1 Gen1 Type C Rear: 6x USB 3.1 Gen1 Type A
NETWORK 2x RJ45 (Rear)
MONITOR OUTPUT 3 x mDP 1.4 (Rear)
Audio 1x Universal Audio Jack (Front) 1x Audio Line out, 1x Audio Line in/Microphone (Rear)
ELECTRICAL
INPUT VOLTAGE 110-240V~50/60Hz
POWER SUPPLY Single 950W
POWER CONSUMPTION Max 325 W
MECHANICAL
DIMENSIONS (W X H X D) 6.95 in x 16.45 in x 20.40 in (176.5 mm x 417.9 mm x 518.2 mm)
WEIGHT 34.0 lbs (15.4 kg) excluding HDD
ENVIRONMENTAL
TEMPERATURE Operating: 5° to 35° C (41° to 95° F) Storage: -40° to 65° C (-40° to 149° F)
RELATIVE HUMIDITY Operating: 10% - 85%, non-condensing
REGULATORY
EMISSIONS CE EN 55032:2012, EN 55032:2015, EN 55024:2010 +A1:2015, EN 61000-3-2:2014 (Class D), EN 61000-3-3:2013); FCC Part 15, Subpart B, Class B
SAFETY CE EN 60950-1:2006 +A1:2010 +A2:2013 +A11:2009 +A12:2011, EN 62368-1:2014; UL 62368-1, CAN/CSA-C22.2 No.62368-1
RoHS CE EN 50581:2012
RECORDING AND REMOTE MONITORING PERFORMANCE 1920 fps @ 4CIF/VGA or 1920 fps @ 720p HD or 1600 fps @ 1080P Full HD. Network bandwidth/t hroughput - Incoming: 256 Mbps, Outgoing: 320 Mbps,Total : 576 Mbps. Rendering performance using GPU of up to 4 1080p HD @ 30 fps /2 4K @ 30fps on local client. Note: Oncam Grandeye 360 Cameras are not supported with GPU rendering and use CPU rendering by default.
MAX VIDEO STREAMS SUPPORT Web Client: Live - 64 streams, Playback - 32 streams. Note: Live streams consumed are per camera being viewed live and duplicate live views of the same camera in multiple or same web client instance are allowed without consuming additional streams. Playback streams consumed are per playback stream being viewed and each playback stream being viewed consumes 1 additional stream. Desktop Client: Live - 256 streams, Playback/Video retrieval sessions - 32, Sync playback - 9 streams. 256 live streams limit excludes 1 stream used per camera if SMART VMD is enabled. Maximum live streams per camera is 15 with SMART VMD enabled. Mobile App: 16 streams of 1080p HD @ 5 fps each. Note: During archival operations,maximum no of playback streams recommended from Desktop Client and Web Client is 16 streams.
SERVER BASED VMD (SMART VMD) PERFORMANCE - CHANNELS SUPPORTED Channels at max fps: 64 ch at 1920 fps @ 4CIF/VGA or 64 ch at 1920 fps @ 720p or 64 ch at 1600 fps @ 1080p or total 100 Megapixel. All channels at fps: 64 ch at 1920 fps @ 4CIF/VGA or 1920 fps @ 720p or 1600 fps @ 1080p or total 128 Megapixel.
ARCHIVAL PERFORMANCE 16 channels @ 4 Mbps bitrate each / 64 Mbps total archival throughput capacity. Outgoing archival storage throughput of 200 Mbps.
MULTI-STREAM PERFORMANCE Support for maximum 128 streams. Support for configuring 1 preferred stream for continuous recording and 1 preferred stream for live video / motion based recording per camera.
Model No.
MAXPRO NVR SE
HNMSE00IB00T 0 Channel, No HDD
HNMSE00IB24T 0 Channel, 3 x 8 TB, RAID 5
HNMSE00IB32T 0 Channel, 4 x 8 TB, RAID 5
HNMSE00IB40T 0 Channel, 5 x 8 TB, RAID 5
HNMSE00IB36T 0 Channel, 3 x 12 TB, RAID 5
HNMSE00IB48T 0 Channel, 4 x 12 TB, RAID 5
HNMSE00IB60T 0 Channel, 5 x 12 TB, RAID 5
MAXPRO NVR – SOFTWARE LICENSES
MPNVRSW4 MAXPRO NVR Software – Base Software and License for 4 Channels
MPNVRSW8 MAXPRO NVR Software – Base Software and License for 8 Channels
MPNVRSW16 MAXPRO NVR Software – Base Software and License for 16 Channels
MPNVRSW32 MAXPRO NVR Software – Base Software and License for 32 Channels
MPNVRSW48 MAXPRO NVR Software – Base Software and License for 48 Channels
MPNVRSW64 MAXPRO NVR Software – Base Software and License for 64 Channels
MAXPRO NVR – CHANNEL UPGRADE LICENSES
MPNVRSW1UP MAXPRO NVR Software – 1 Channel License Upgrade to add support for up to 64 Channels per NVR
MPNVRSW4UP MAXPRO NVR Software – 4 Channel License Upgrade to add support for up to 64 Channels per NVR
MPNVRSW8UP MAXPRO NVR Software – 8 Channel License Upgrade to add support for up to 64 Channels per NVR
MPNVRSW16UP MAXPRO NVR Software – 16 Channel License Upgrade to add support for up to 64 Channels per NVR
MPNVRSW32UP MAXPRO NVR Software – 32 Channel License Upgrade to add support for up to 64 Channels per NVR
Documentation Size Release Date File Type Download
Datasheet 1514.32 KB 10.03.2021 pdf Download
