Security Fingertips
Done
World-class fingerprint technology drives this range of fingerprint devices for commercial and enterprise use

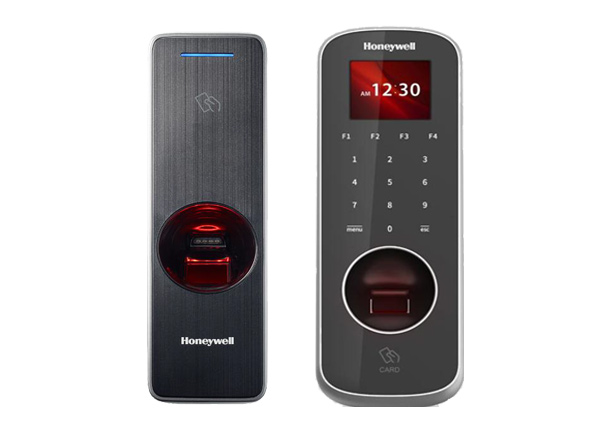

FINGERPRINT DEVICES

Equipped with modern fingerprint technology, a top-notch hardware configuration and industry-leading algorithms, Honeywell’s range of fingerprint devices deliver an intuitive user experience and excellent security regardless of where they are used. Built-in new-generation optical sensors capture and process clear fingerprint images and even identify common fake fingerprints.

PRODUCT OFFERINGS

Multi-level security protection when combined with Honeywell Pro-Watch/WIN-PAK access control system
Whether you choose the compact or standard device, you will always get class-leading performance, reliability and comprehensive security for your application.

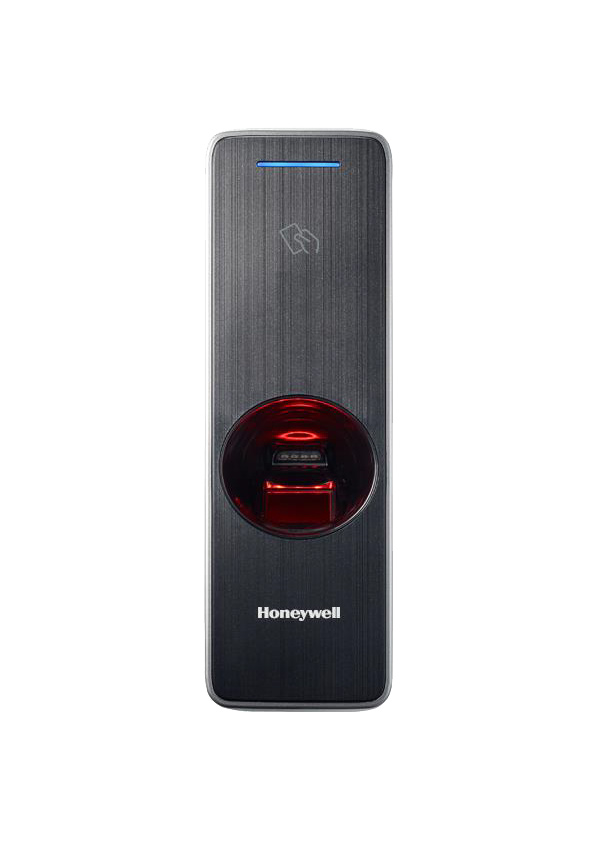

HON-FIN4000AC-100K COMPACT FINGERPRINT DEVICE

Perfect for large traffic flow scenarios

Boasting a large memory and advanced fingerprint detection function, the compact fingerprint device supports up to 100,000 users (one finger per user). It can also effectively identify common fake fingerprints made from clay, glue, paper and rubber. It supports both low frequency 125kHz and high frequency 13.56MHz cards to meet the needs of different users and scenarios, especially those requiring easy networking and unified management.

FEATURES
  • 1.2GHz quad-core CPU with large capacity memory
  • High sensitivity optical sensor
  • Advanced fingerprint recognition algorithm, max. 1:150,000 match/sec
  • Slender and compact design with brushed metal panel
  • Can be installed on narrow mounting surfaces such as glass/aluminium door mullions, turnstiles, etc
  • Multi card identification including EM, Mifare and Seos
  • Versatile Interfaces: RS-485/TTL/Relay/Wiegand
  • TCP/IP network connect
  • Multi-Color LED, multi-tone buzzer
  • IP67 Protection
  • Specifications
  • Ordering Info
  • Resources
Model No. HON-FIN4000AC-100K
CPU 1.2G Quad Core
MEMORY 2GB Flash + 256 MB RAM
FINGERPRINT SENSOR Optical Sensor
MATCHING SPEED Max. 1:150,000 match/sec
MAX. USER 100,000 [1:N] (One fingerprint per user)
MAX. FP TEMPLATE 200,000 [1:N] (Two templates per fingerprint)
LOGS 1,000,000(text)
LIVE FINGERPRINT DETECTION(LFD) Supported
RF OPTION EM/HID_Prox/Mifare/DesFire_EV1/ iClass_SE/Seos
AUTHENTICATION MODES Finger only, Card only, Finger+Card
ETHERNET 10/100 Mbps
RS-485 OSDP Supported
WIEGAND Supported
TTL 2 ch input (for LED/Buzzer control)
RELAY 1 door relay
LED Multi-Color
SOUND Multi-tone Buzzer
TAMPER Supported
POWER 12V DC(Max.600mA)
OPERATING TEMPERATURE -20°C ~ 50°C
OPERATING HUMIDITY 0% ~ 80% (Non condensing)
INGRESS PROTECTION IP67
DIMENSIONS (W X H X D,MM) 50 x 172 x 43.5
Model No. HON-FIN4000AC-100K
HON-FIN4000AC-100K HON-FIN4000 Series Compact fingerprint device, without keypad, wall-mountin
Documentation Size Release Date File Type Download
Datasheet 789.96 KB 01.12.2020 pdf Download

One product, many applications
Offices
Data Centres
R&D laboratories
Hospitals
Airports
