Perfect for
PA purposes
Packed with features that ensure reliable acoustics for both voice and music applications.

Mixer Amplifiers

Deliver an enjoyable audio experience to your audience with Honeywell’s mixer amplifier range. These accessories are perfect for use in restaurants and bars, warehouses, stores and many other applications.

Product Offerings

High-quality sound, unbeatable functionalities
Feature-rich design and world-class performance for both voice and music. Ideal for shops, restaurants, service centres and houses of worship.

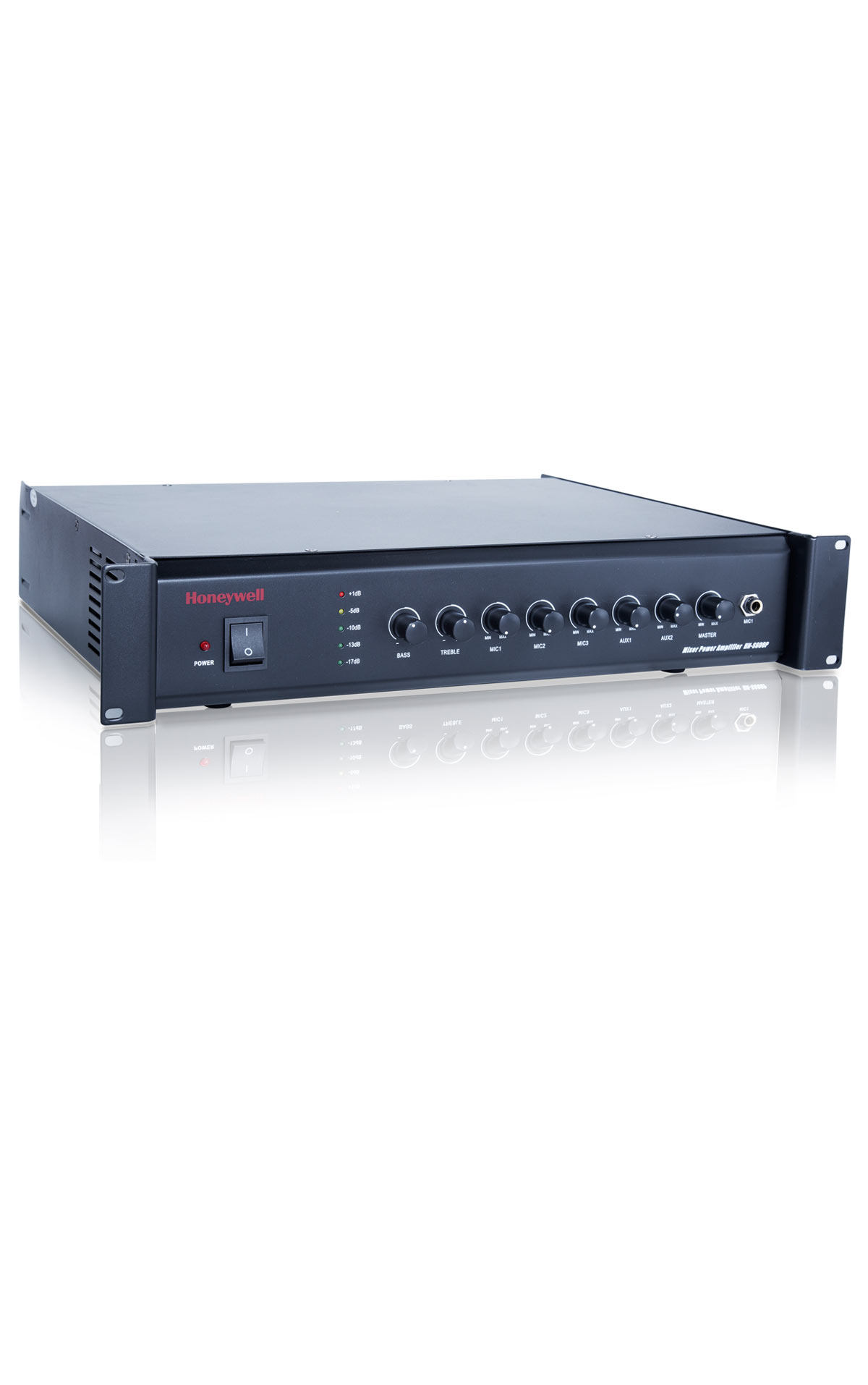

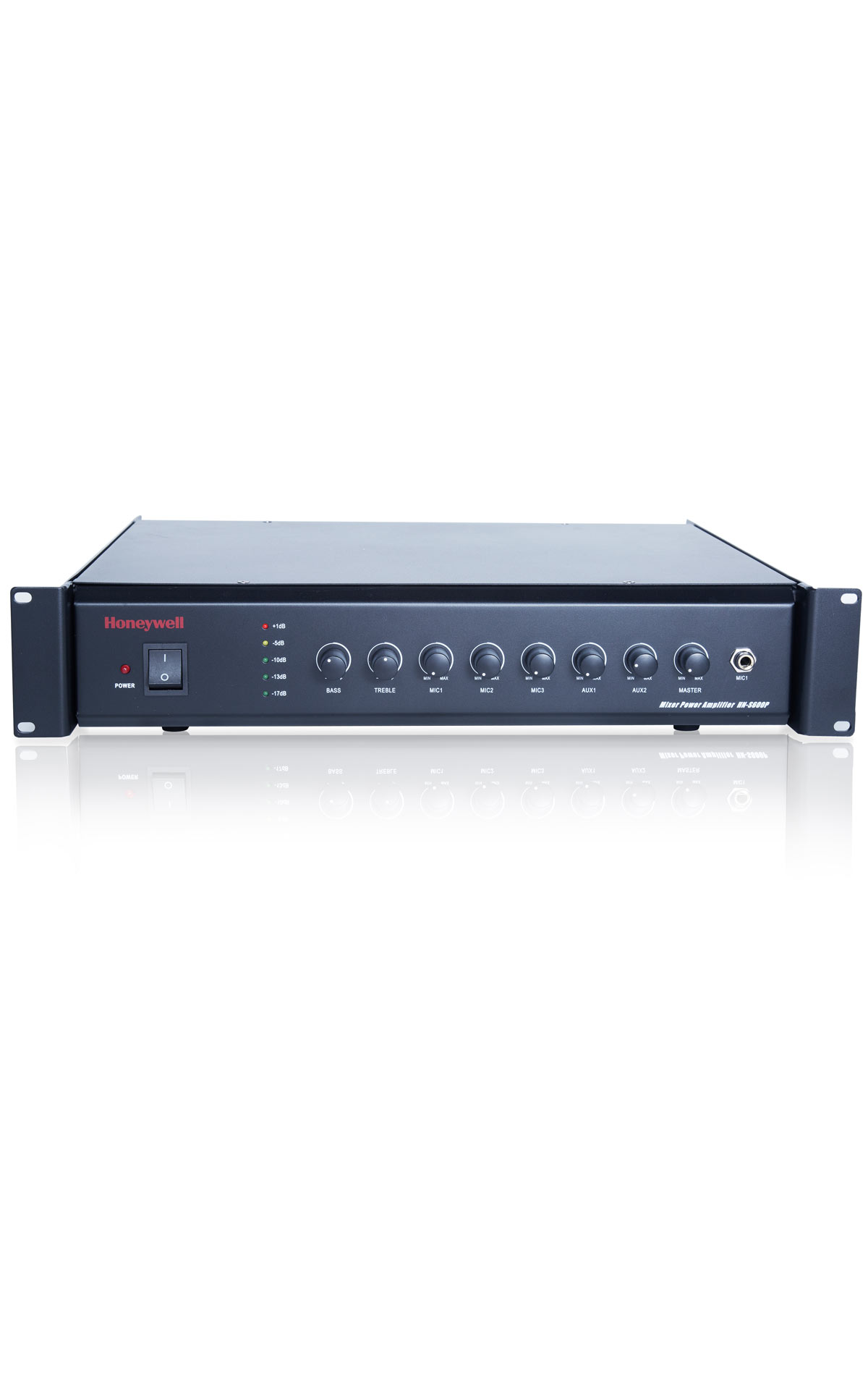

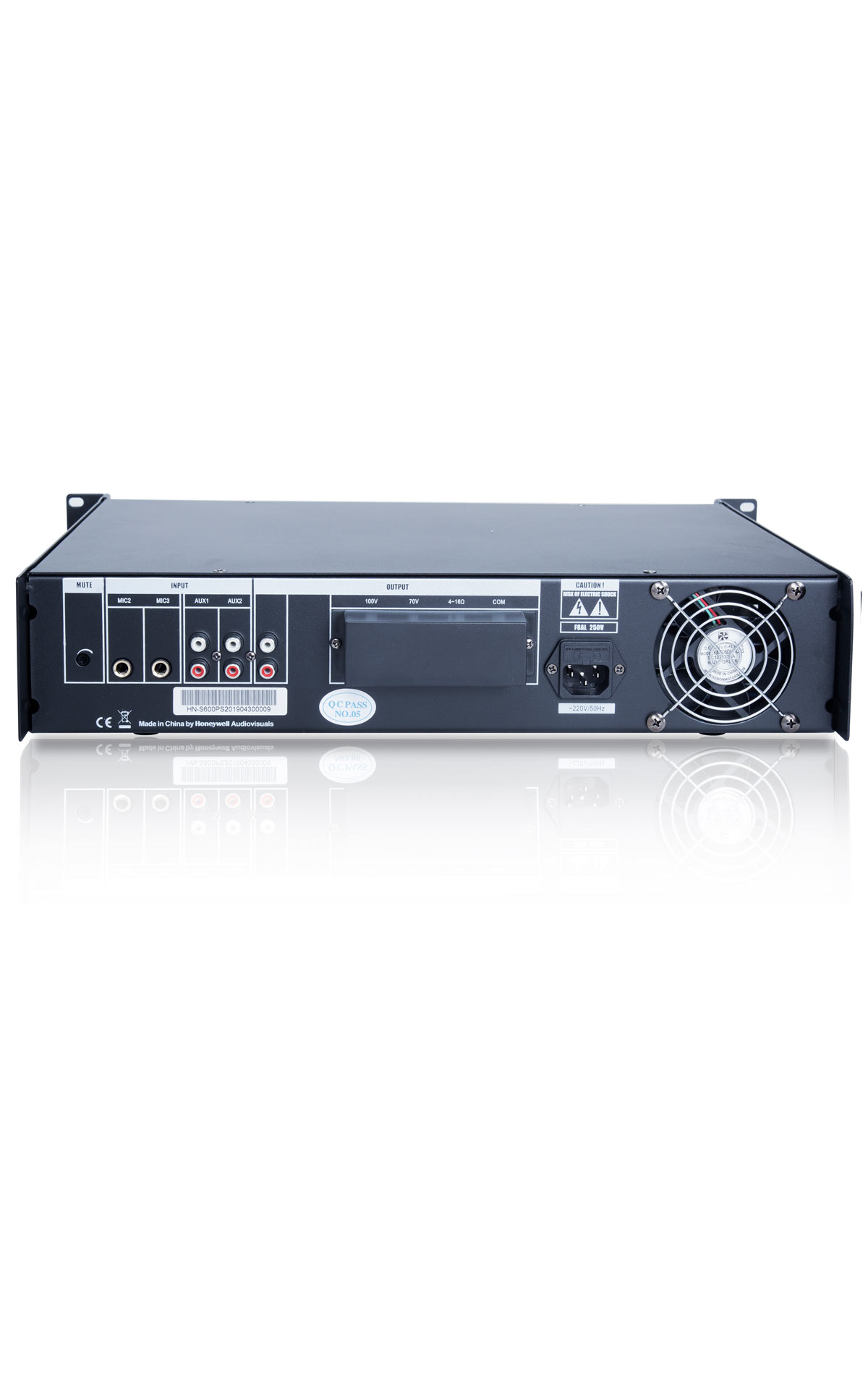

HN-S600P

1 Line out Mixer Amplifier

The HN-S600P features 3 microphones, 2 auxiliary inputs and 1 line out. It comes with an automated mute function for paging and announcements, as well as individual input gain controls (with master volume control). Other world-class features include LED level meter, short-circuit protection, and bass/treble tone controls.

FEATURES
  • 260 W
    Rated power output
  • <3dB ( no load to full load )
    Output Regulation
  • 19Ω ( 70V )
    39Ω ( 100V )
    Low impedance: 4 - 16Ω
    Speaker Output
  • >72dB
    S/N ratio
  • 600 Ω, 1.2 V
    Output
  • <0.5% at 1 kHz
    ( 1/3 Rated output)
    THD
  • Specifications
  • Ordering Info
  • Resources
Model No. HN-S600P
Rated power output 260 W
Dimensions 89(H)×483(W)×366(D)mm
Frequency response 60-15000KHz,+/-3dB
Color Panel:steel plate,black
Case:steel plate,black
Output Regulation <3dB (no load to full load)
Speaker Output 19 Ω ( 70 V )
39 Ω ( 100 V )
Low impedance: 4 - 16 Ω
Input MIC 1,2,3 600 Ω, 5-8 mV,
unbalanced phone jack;
AUX 1,2:10 kΩ,300 mV,
unbalanced,RCA jack
Output 600Ω,1.2V
THD <0.5% at 1kHz(1/3 Rated output)
S/N ratio >72dB
Tone Controls BASS:100Hz(+/- 10 dB),
TREBLE:12kHz(+/-10dB)
Controls 5 input gain, 1treble,1 bass , 1 mute and power swich
Cooling Internal 12 VDC fan,
extensive heat sinking
Indicators Power indicator LED, LED output level meter 0,2,4,6,8,10dB
Protection AC Fuse: 8A Current limiter, short circuit and thermal protection circuits
Power Consumption 350W
AC Power Supply 220V, 50/60Hz
Built-in Dimensions 2 U rack 19 inch
Carton Dimensions 185(H)×520(W)×435(D)mm
Net weight 13.68kg
Gross weight 15.32kg
AC Power Supply 220V, 50/60Hz
Model No. HN-S600P
Description Mixer Amplifiers
Documentation Size Release Date File Type Download
Datasheet 524.32 KB 27.12.2020 pdf Download


Applications Areas

One product, many applications
Retail
Restaurants and Bars
Service Centres
Warehouses
