Bundled with the latest encoding technology to help reduce bandwidth usage, this stellar product range from the Honeywell MMS security portfolio is what you need for smart security at an economical price.

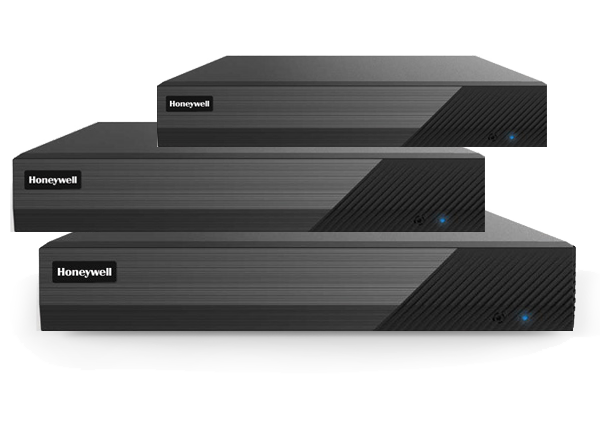

Performance Pro 5MP AHD Series

Add the much-needed depth to your surveillance infrastructure without overshooting your budget. Experience enhanced video and image resolution to get effective analysis of the security video feeds. Get greater flexibility with a wide range of, compatible formats including AHD/CVI/TVI/CVBS video output and more. Furthermore, you get the benchmarked Honeywell quality and reliability, at an affordable price

PRODUCT OFFERINGS

The Performance Pro 5MP AHD portfolio
Get unmatched quality at unbeatable prices along with Honeywell quality assurance.

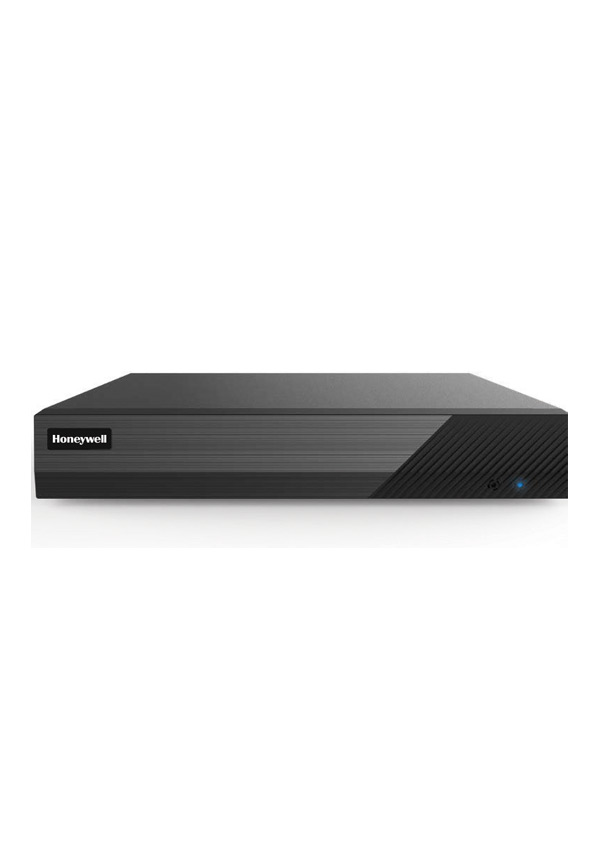

AHD HA-DVR-5104-L

Equipped with the latest encoding technology, this stellar DVR from the Honeywell MMS security portfolio allows for high quality recordings without compromising on storage needs.

FEATURES
  • H.265+ dual-stream video compression
  • Supports HDCVI/TVI/AHD/CVBS video inputs
  • Long transmission distance over coax cable
  • Supports 1 SATA HDD, up to 6TB
  • Specifications
  • Ordering Info
  • Resources
Model No. AHD HA-DVR-5104-L
SYSTEM
Main Processor Embedded Processor
Operating System Embedded LINUX
VIDEO AND AUDIO
Analog Camera Input 4 Channel, BNC
AHD Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
CVBS Camera PAL/NTSC
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
RECORDING
Video Compression H.265+/H.265/H.264+/H.264
Resolution Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate Main stream:5M-N(1~10fps), 4M-N/1080P(1~15fps), 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps)
Video Bit Rate 32Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
DISPLAY
Interface 1 HDMI ,1 VGA
Resolution Resolution 1920×1080, 1280×1024, 1280×720
Multi-screen Display When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
NETWORK
Ethernet 1 RJ-45 Port (100 Mbps)
Network Function Network Function HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP filter; PPPoE; DDNS; FTP; IP Search
Max. User Access 128 users
Smart Phone Smart Phone iPhone, iPad, Android (phone and tablet)
Interoperability ONVIF Conformant
VIDEO DETECTION AND ALARM
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
PLAYBACK AND BACKUP
Playback 1/4
Search Mode Time/Date; Alarm; Motion Detection; Exact Search (accurate to a second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
STORAGE
Internal HDD 1 SATA Port, up to 6TB capacity
AUXILIARY INTERFACE
USB 2 USB 2.0
RS485 1 Port, for PTZ Control
ELECTRICAL
Power Supply DC12V/1.5A
Power Consumption (without HDD) <10W
PHYSICAL
Net Weight(without HDD) 0.9kg (2.0 lb)
Dimensions Compact 1U, 260×236×48mm(10.2×9.3×1.9)
ENVIRONMENTAL
Operating Conditions -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90 RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90 RH
CERTIFICATIONS
Certifications BIS certified, CE, FCC
Model No. AHD HA-DVR-5104-L
HA-DVR-5104-L 4ch, 5MP DVR, 1 SATA, H.265+
Documentation Size Release Date File Type Download
Datasheet 397.11 KB 15.04.2021 pdf Download
