The smart in
smart access
Contactless smart and multismart readers for secure access and consistent access control

SMART & MULTISMART READERS

For access control applications where superb reliability, consistent read range and ease of installation are must-haves, Honeywell’s range of contactless smart and multismart readers are the perfect choice. Each reader in the OmniAssure and OmniClass 2.0 series incorporates advanced technologies and offers powerful built-in functionalities for applications requiring secure, reliable, uncompromising access and security.

PRODUCT OFFERINGS

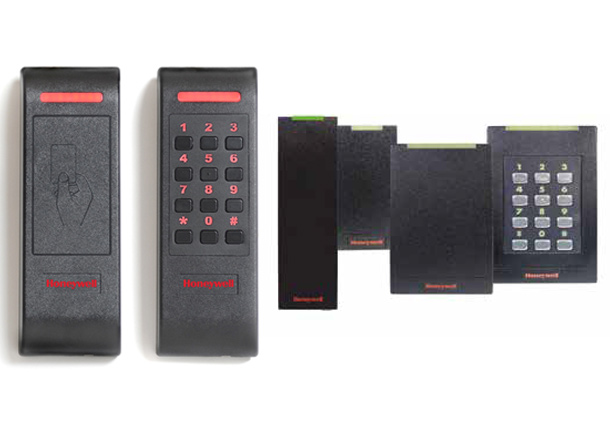

MultiSmart readers and Contactless smart readers
This lineup includes the OmniAssure 2.0 XS range of multismart readers as well as the OmniClass 2.0 range of multi-technology Bluetooth Low Energy (BLE) readers. With multiple security features backed by operational ease of use, each product in these families is a reigning superstar in the global access control devices industry

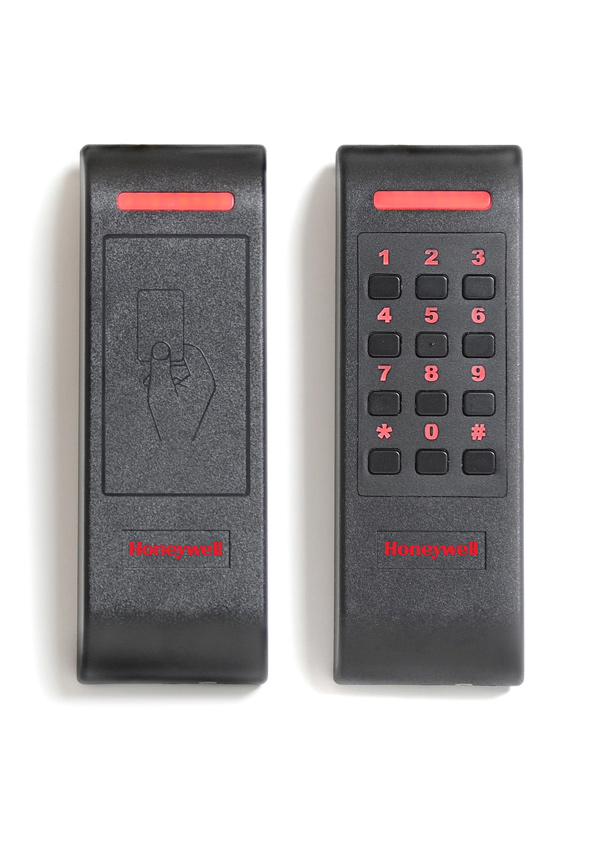

OmniAssureTM

Multi-credential capabilities, in-field programmable

Honeywell’s OmniAssure 2.0 XS MultiSmart readers are perfect for reading high frequency 13.56 MHz and low frequency 125 kHz Prox credentials. With support for multiple technologies and security features, these readers are configurable for OSDP including Secure Channel or traditional access control. Field programming allows changes to the function of the reader, adoption to changing security requirements and loading of new firmware with new technologies and features.

FEATURES
  • Peer-to-peer support for passive credentials and devices
  • Can be configured to support up to five different credential sets with up to two low frequency credentials
  • Credential handling performed in transparent or reader mode
  • In-field programmable
  • Standard security features: tamper-proof, AES-encrypted key storage, key diversification
  • Specifications
  • Ordering Info
  • Resources
Model No. Omniassure
INSTALLATION
CONNECTIONS Non-detachable 8-pin screw connector
MOUNTING Two piece housing, front with electronics and wall mounting plate
PIN MODEL SPECIFIC
ACTUATORS Mechanical switch
ACTIONS 1.000.000 times minimum
INDICATORS Back lighted symbols, sound and LED bar action
WARRANTY
WARRANTY Limited Lifetime
ENVIRONMENT
USAGE Indoor and Outdoor
HUMIDITY 0 – 95% non-condensing
TEMPERATURE –15°F to 150°F (–25°C to 65°C)
PROTECTION CLASS IP55
IP54 for PIN models
MECHANICAL
DIMENSIONS 5.63 × 1.8 × 1.0 (H × W × D)
143.0 mm × 46.0 mm × 25.0 mm
MATERIALS UL94 V0 LEXAN
TECHNOLOGIES
ISO14443-3A MIFARE Classic, MIFARE Ultralight
ISO14443-4A MIFARE DESFire EV1 and EV2 (and version 0.6), SmartMX
ISO14443-4B Infineon, Atmel, STMicroelectronics
NFC Active mode on all models
LOW FREQUENCY-PROX HID Prox, AWID, QuadraKey, EM4102 and GE/CASI® ProxLite
PROTOCOL INTERFACES AND MODELS
WIEGAND, CLOCK & DATA, TTL SERIAL 0 – 5 VDC or open drain
RS485 OSDP 0 – 5 Volt levels
USER FEEDBACK
BI-COLOR LED BAR Single bar for user feedback with two controllable sections used for reader internal progress feedback
SOUNDER Multi-tone
SECURITY FEATURES
TAMPER DETECTION Detect and signal open housing
KEY STORE Per reader uniquely encrypted key storage
COMPLIANCE
LISTINGS AND CERTIFICATIONS CE, FCC, IC, UL 294*, ULC-S319*
Model No. OMNIASSURE
OT31BHONCSQT OmniAssure 2.0 XS MultiSmart
OT36BHONCSQT OmniAssure 2.0 MultiSmart XS PIN
Documentation Size Release Date File Type Download
Datasheet 3385.82 KB 11.12.2020 pdf Download
