Contactless proximity
cards
Easy identification and superlative access control; best suited for OmniProx readers

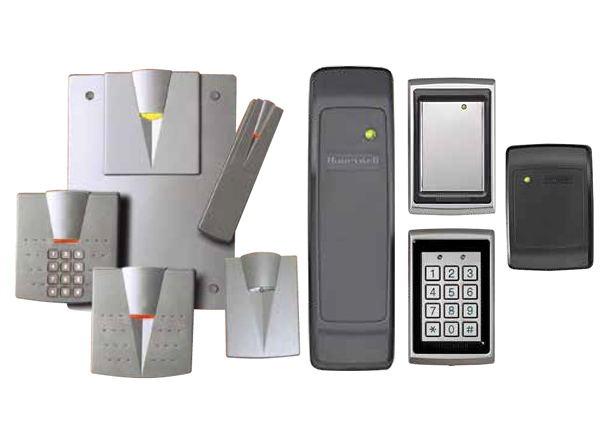

PROXIMITY READERS

For outstanding access performance and uncompromising security in an attractively-styled package, install Honeywell’s range of proximity card readers on your premises. Both DigiReader and OmniProx product families include an impressive array of devices to meet the access control needs of any site consistently and at low cost. And as always, these products come with Honeywell’s guarantee of high-quality design and innovative features for all kinds of applications.

PRODUCT OFFERINGS

Small package, big features, outstanding performance
This lineup features the OmniProx range of 125 kHz HID compatible proximity readers and DigiReader series of digital proximity readers. Easy to install and use, each product combines unique functionalities and world-class engineering for a variety of access control applications.

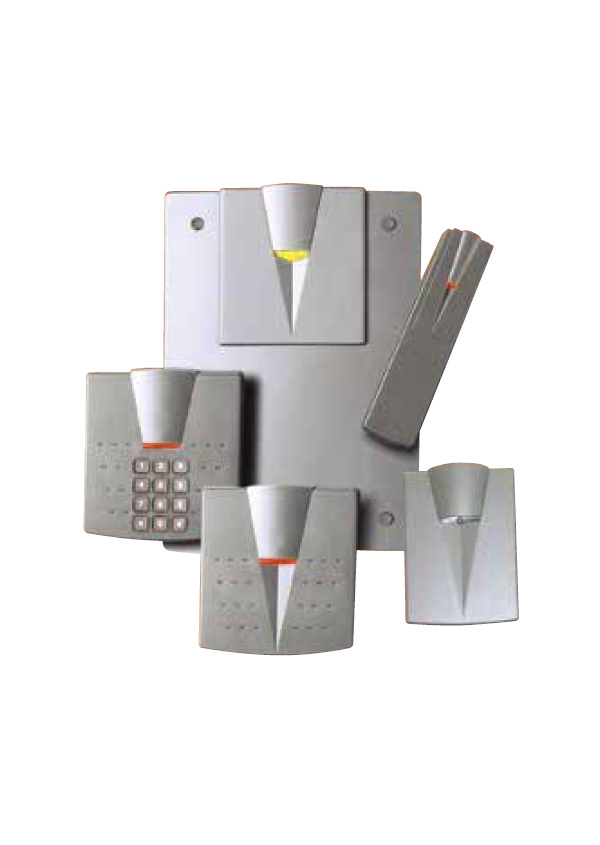

DIGIREADER DR4200 SERIES DIGITAL PROXIMITY READERS

Winner of ‘Excellence in Design’ award from Applied Manufacturing and Business Week magazines

Award-winning design is just one reason why this powerful family of proximity credential readers is miles ahead of its competition. Each product in the DigiReader range uses advanced Digital Signal Processing technology to generate long-range passive proximity and to ensure fast and dependable reads that keep even the heaviest traffic moving quickly. In addition to providing true, hands-free access, DigiReaders feature programmable audible tones and tricolour lights, making secure areas more access-friendly for disabled card holders. Rugged construction makes DigiReader nearly impervious to inclement weather and vandalism.

FEATURES
  • Fast read times for convenient access and fast-moving traffic
  • Difficult to compromise, reliable security
  • Easy installation with industry-standard, low-cost RS-485 wiring
  • Will read HID digital cards to 43-bit
  • Meets or exceeds even demanding low-power US, European and Asian Electro Magnetic Interference (EMI) regulations
  • Specifications
  • Ordering Info
  • Resources
Model No. DR4201W DR4203 DR4205, DR4205K DR4208, DR4208K, DR4208SGM DR4220
INDICATORS Single tri-color LED (green-yellow-red) with buzzer audio indicator Single tri-color LED (green-yellow-red) with buzzer audio indicator Single tri-color LED (green-yellow-red) with buzzer audio indicator Single tri-color LED (green-yellow-red) with buzzer audio indicator Single tri-color LED (green-yellow-red) with buzzer audio indicator
WARRANTY 1 year2 1 year2 1 year2 1 year2 1 year2
DIMENSIONS 4.75\ H x 3.25\ W x 0.65\ D (12.07cm H x 8.26cm W x 1.65cm D) 7.5 H x 1.9 W x 1.2 D (19cm H x 4.7cm W x 3.1cm D) DR4205 5.3 H x 5.74 W x 1.27 D (13.5cm H x 14.6cm W x 3.2cm D) DR4205K 5.3 H x 5.74 W x 1.5 D (13.5cm H x 14.6cm W x 3.8cm D) DR4208/DR4208SGM 5.3 H x 5.74 W x 1.27 D (13.5cm H x 14.6cm W x 3.2cm D) DR4208K 5.3 H x 5.74 W x 1.5 D (13.5cm H x 14.6cm W x 3.8cm D) 14.3 H x 12.4 W x 1 D (36.3cm H x 31.5cm W x 2.5cm D)
OPERATING TEMPERATURE DR4203, DR4205K, DR4208K, DR4220: -31 to 150° F ( -35 to 66 °C), Indoor/Outdoor DR4201, DR4205, DR4208, DR4208SGM: 32 to 120° F (0 to 49 °C), Indoor Only DR4203, DR4205K, DR4208K, DR4220: -31 to 150° F ( -35 to 66 °C), Indoor/Outdoor DR4201, DR4205, DR4208, DR4208SGM: 32 to 120° F (0 to 49 °C), Indoor Only DR4203, DR4205K, DR4208K, DR4220: -31 to 150° F ( -35 to 66 °C), Indoor/Outdoor DR4201, DR4205, DR4208, DR4208SGM: 32 to 120° F (0 to 49 °C), Indoor Only DR4203, DR4205K, DR4208K, DR4220: -31 to 150° F ( -35 to 66 °C), Indoor/Outdoor DR4201, DR4205, DR4208, DR4208SGM: 32 to 120° F (0 to 49 °C), Indoor Only DR4203, DR4205K, DR4208K, DR4220: -31 to 150° F ( -35 to 66 °C), Indoor/Outdoor DR4201, DR4205, DR4208, DR4208SGM: 32 to 120° F (0 to 49 °C), Indoor Only
OPERATING HUMIDITY 10-85% relative humidity 10-85% relative humidity 10-85% relative humidity 10-85% relative humidity 10-85% relative humidity
REGULATORY APPROVALS UL/CUL, FCC, CE, Industry Canada* UL/CUL, FCC, CE, Industry Canada* UL/CUL, FCC, CE, Industry Canada* UL/CUL, FCC, CE, Industry Canada* UL/CUL, FCC, CE, Industry Canada*
OPERATING VOLTAGE RANGE 12.5 – 28 VDC 12.5 – 28 VDC 12.5 – 28 VDC 12.5 – 28 VDC 12.5 – 28 VDC
TAMPER OUTPUT Switch tamper built in Switch tamper built in Switch tamper built in Switch tamper built in Switch tamper built in
DESCRIPTION Smallest reader for US Gangbox Mullion Different designs/ mounting in family Different designs/ mounting in family with increased read range Maximum read range
COMPATIBLE CARDS QuadraKey, NexKey, KeyMate, HID Proximity QuadraKey, NexKey, KeyMate QuadraKey, NexKey, KeyMate QuadraKey, NexKey, KeyMate, HID Proximity QuadraKey, NexKey, KeyMate
MAX. READ RANGE1 FOR QUADRAKEY, NEXKEY 1.5\ (3.75cm) 3 (7.6cm) 4 (10cm) DR4208/DR4208SGM: 8 (20cm) DR4208K: 4 (10cm) 18 (46cm)
MAX. READ RANGE1 FOR KEYMATE 1.0\ (2.5cm) 1.0 (2.5cm) 2 (5cm) DR4208/DR4208SGM: 4 (10cm) DR4208K: 2 (5cm) 10 (25cm)
MAX. READ RANGE1 FOR HID CARDS TO 43 BIT 1.0\ (2.5cm) 6 (15.2cm)
CURRENT 80mA peak 80mA peak 250mA peak 250mA peak 500mA peak
OUTPUT INTERFACES (ALL BUILT-IN) Shielded 22 AWG, dual twisted pair, RS-485 S-NET, or Wiegand Shielded 22 AWG, dual twisted pair, RS-485 S-NET, or Wiegand Shielded 22 AWG, dual twisted pair, RS-485 S-NET, or Wiegand Shielded 22 AWG, dual twisted pair, RS-485 S-NET, or Wiegand Shielded 22 AWG, dual twisted pair, RS-485 S-NET, or Wiegand
Model No. DIGIREADER DR4200 SERIES DIGITAL PROXIMITY READERS
92042011000 DR4201W, Smallest Gray Reader for US Gangbox
92042030000 DR4203, Gray Mullion Reader
92042050100 DR4205, Gray Reader
92042052100 DR4205K, Gray Reader with Keypad
92042081000 DR4208, Gray Reader with longer read range
92042083000 DR4208SGM, Glass-mount Gray Reader
92042085000 DR4208K, Gray Reader with Keypad
92042200000 DR4220, Long Distance Reader
Documentation Size Release Date File Type Download
Datasheet 2293.48 KB 19.04.2021 pdf Download

One product, many applications
Office Premises
Banks
Hospitals
Laboratories
Factories
