Harsh conditions,
no worry!
Ideal for conditions where protection from dust-intrusion and water-penetration are crucial.

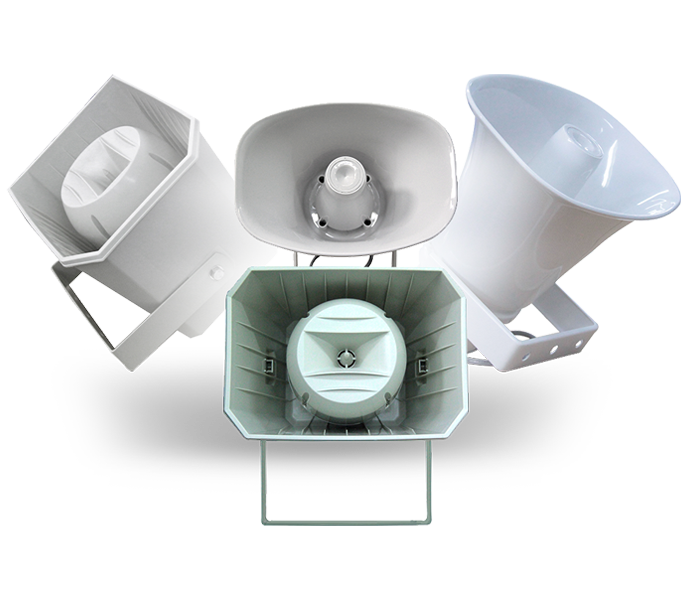

Horn Loudspeaker

Conforming to world-class IP65/IP66 standards, Honeywell’s horn loudspeakers deliver superior sound reproduction, regardless of application or environment.

Product Offerings

Low-profile appearance | High-profile performance
Water-proof, dust-proof, antirust and chemical-resistant – multiple advantages for harsh or challenging audio environments!

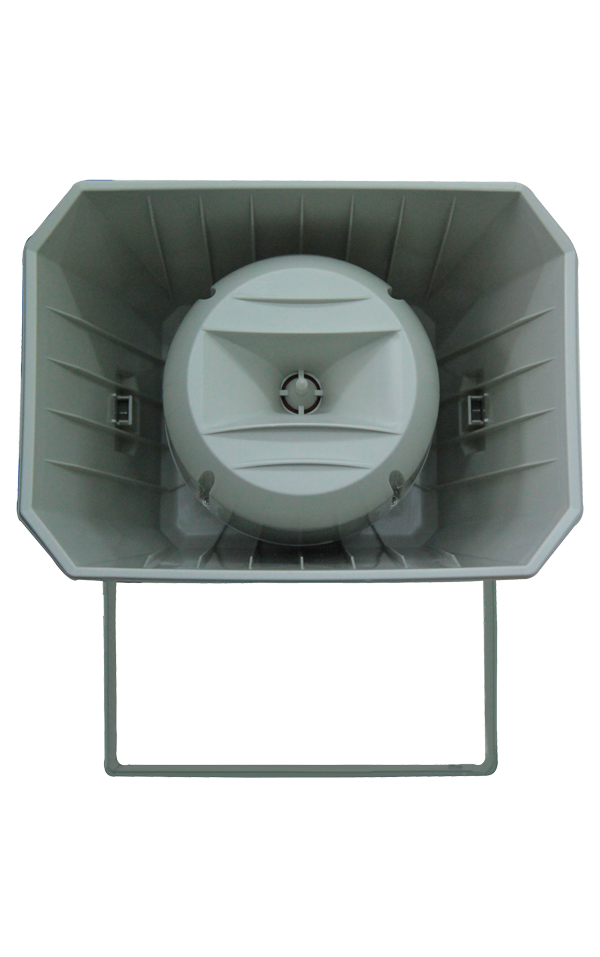

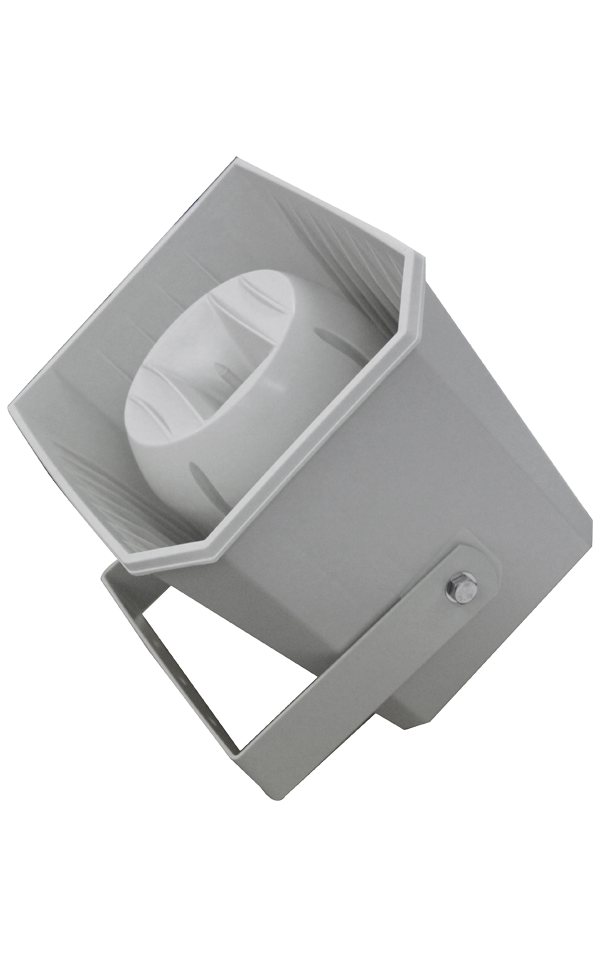

L-PHP50A

ABS Music Horn

With its divided frequency system, the L-PHP50A is the perfect accessory for superior music reproduction. Featuring a wide opening angle and sturdy ABS enclosure, this loudspeaker is compliant with multiple international standards, including IP65, CE and RoHS.

FEATURES
  • 75 W
    Max power
  • 50 W
    Rated power
  • 50 W / 25 W / 12.5 W / 9 W / 4.5 W / 2.6 W/ 8Ω
    Power taps
  • 111 dB / 96 dB
    SPL at 50 W / 1 W ( 200 Hz - 15 kHz?1 m)
  • 150 Hz - 17 KHz
    Frequency range ( - 10 dB )
  • 70°
    Dispersion angle ( 1 KHz / -6 dB )
  • Specifications
  • Ordering Info
  • Resources
Model No. L-PHP50A
Rated Power 50 W
Max Power 75 W
Power taps 50 W / 25 W / 12.5 W / 9 W / 4.5 W/ 2.6 W/ 8Ω
Rated Impedance 200 Ω
Dimensions (W x H x D) 252 × 362 × 310 mm
Color Light grey (RAL7035)
Connector Plastic terminal blocks
Frequency range(- 10db ) 150 Hz - 17 KHz
Dispersion angle(1k HZ / -6db) 70°
Rated input voltage 100 V / 70V
Weight 4Kg
Material ABS
SPL at 50 W / 1 W(200Hz-15kHz,1m) 111 dB / 96 dB
Model No. L-PHP50A
Description Horn Loudspeaker
Documentation Size Release Date File Type Download
Datasheet 2813.39 KB 06.11.2020 pdf Download


Applications Areas

One product, many applications
Parking Areas
Open Corridors
Outdoor Areas
Stadiums
Theatres
