Contactless proximity
cards
Easy identification and superlative access control; best suited for OmniProx readers

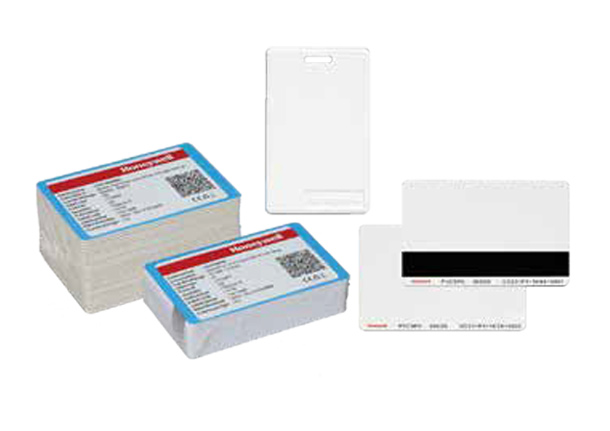

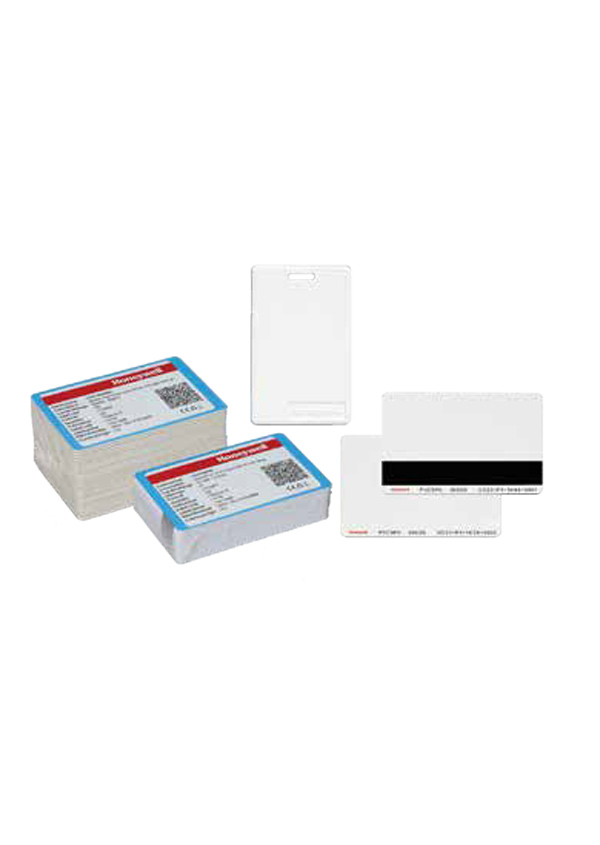

OmniProx Credentials

Suitable for a range of access control installations, Honeywell’s OmniProx Credentials cards utilise RFID technology and provide excellent contactless sensing range. With a form factor similar to the size of a credit card, these credentials are easy to carry or attach to clothing and may be used as photo identification.

PRODUCT OFFERINGS

OmniProx 125 kHz compatible proximity credentials
OmniProx credentials include external numbering for easy identification and control. They are available in popular stocked configurations or special order where the user specifies site code and card range.

PVC4: OmniProx ISO Card

PVC construction, gloss white finish

Laminated PVC cards that can be printed on both sides using most standard card printers. Compatible with OmniProx readers.

FEATURES
  • Max read range: 2.5"" to 4""
  • ISO7810 compatible
  • Compatible with Direct Print/Thermal Transfer
  • Easy to carry
  • Robust PVC construction resists cracking and breaking
  • Specifications
  • Ordering Info
  • Resources
Model No. PVC4: OMNIPROX ISO CARD
DIMENSIONS 2.125 width x 3.370 height x 0.03 thickness (5.4 cm W x 8.56 cm H x 0.078 cm T)
FINISH Gloss White
DIRECT PRINT/THERMAL TRANSFER COMPATIBLE Yes
CREDENTIAL CONSTRUCTION PVC
MAX READ RANGE2 2.5 to 4 (6.35 cm to 10.2 cm)
ISO 7810 Yes
OPERATING TEMPERATURE -95° – 140°F (-35° – 60°C)
OPERATING HUMIDITY 5-95%, non-condensing
WARRANTY Limited lifetime warranty1
Model No. PVC4: OmniProx ISO Card
PX425 OmniProx Clamshell Credential 25 card pack – 34 bit format
Standard
PX42625 OmniProx Clamshell Credential 25 card pack – 26 bit format
PVC425 OmniProx ISO Credential 25 card pack – 34 bit format
PVC42625 OmniProx ISO Credential 25 card pack – 26 bit format
PVC525 OmniProx ISO Credential with magnetic stripe 25 card pack – 34 bit format
PVC52625 OmniProx ISO Credential with magnetic stripe 25 card pack – 26 bit format
Special Order
PX425S OmniProx Custom Clamshell Credential 25 card pack – 34 bit format
PX42625S OmniProx Custom Clamshell Credential 25 card pack – 26 bit format
PVC425S OmniProx Custom ISO Credential 25 card pack – 34 bit format
PVC42625S OmniProx Custom ISO Credential 25 card pack – 26 bit format
PVC525S OmniProx Custom ISO Credential with magnetic stripe 25 card pack – 34 bit format
PVC52625S OmniProx Custom ISO Credential with magnetic stripe 25 card pack – 26 bit format
READER COMPATIBILITY
OmniProx Readers
OP10HONS OmniProx 12V Mini proximity reader
OP30HONS OmniProx 12V Mullion proximity reader
OP40HONS OmniProx 12V US gang box proximity reader
OP45HONS OmniProx 12V European gang box proximity reader
OP90HONS OmniProx 12V Vandal resistant metal proximity reader
OP95HONS OmniProx 12V Vandal resistant metal proximity reader with keypad
OmniClass Multi-Technology Readers
OM16BHOND/DT Mullion smart/proximity reader
OM31BHOND/DT Small Mullion smart and proximity reader
OM41BHOND/DT US gang box smart and proximity reader
OM46BHOND/DT European gang box smart and proximity reader
OM56BHOND/DT US gang box smart and proximity reader with keypad
Documentation Size Release Date File Type Download
Datasheet 2560.7 KB 22.12.2020 pdf Download
