Easy To Install And
Manage Fire Detection
And Alarm System
Honeywell Conventional Fire Alarm Control Panels provides value to smaller and less complex buildings, offering a more affordable solution for basic fire protection needs

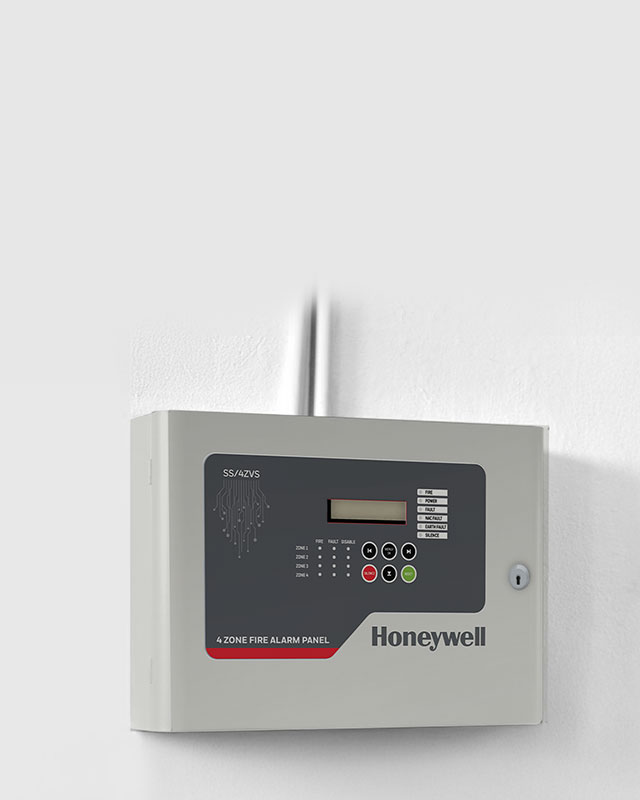

Simple, Effective And
Reliable Conventional
Fire Alarm Control Panels
Address contemporary fire detection needs, with smart, streamlined design
Quick To Install
Fire Detection With
Enhanced Features

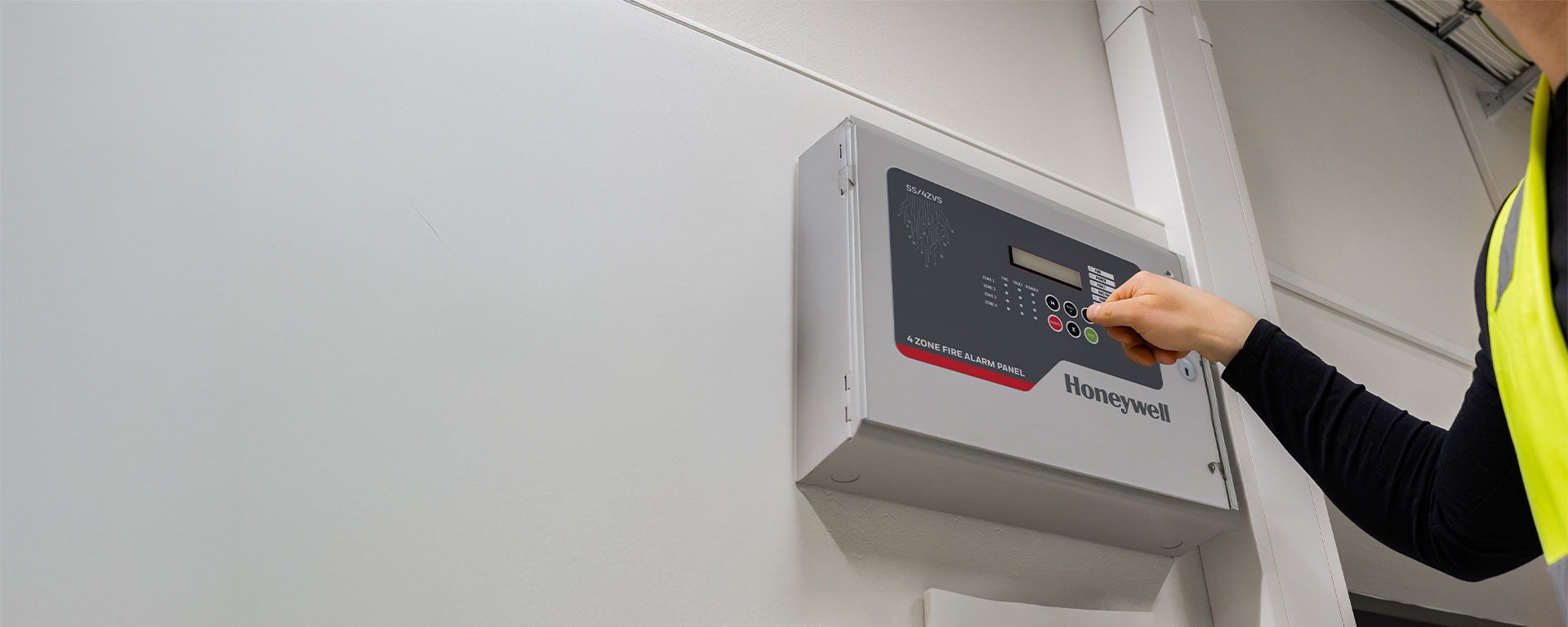

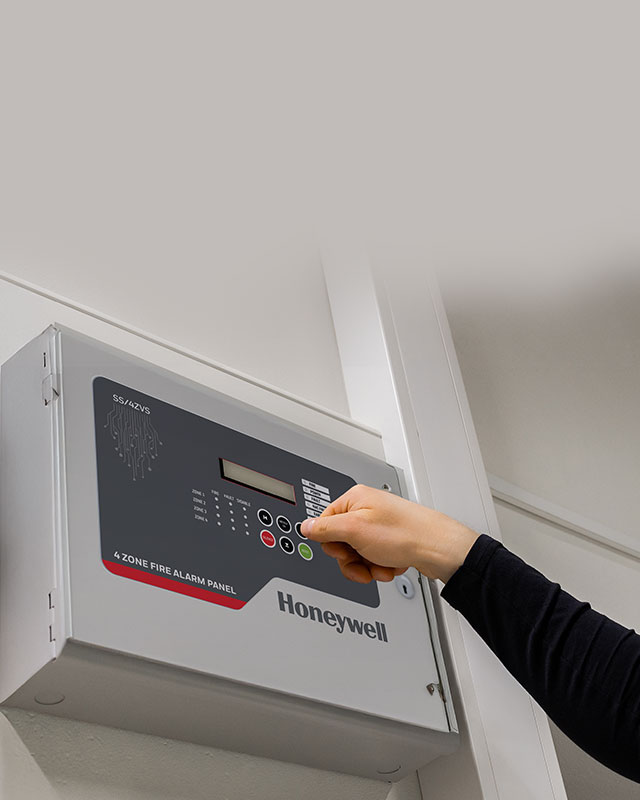

An out of the box and on the wall fire safety solution
  • Home
  • Fire
  • Conventional Fire Alarm Control Panels

CONVENTIONAL FIRE ALARM CONTROL PANELS

Honeywell Conventional Fire Alarm Control Panels have been developed to provide a simple and reliable solution to meet basic fire detection requirements. These panels are designed to address the needs of both installers and end users. The Conventional Fire Alarm Control Panel is suited for small to medium sized buildings like small offices, banks, retail units/stores, shops, restaurant, small healthcare facilities, pre-schools, etc.

Engineered and built to the same high standard as all Honeywell FACPs, this panel delivers a combination of quick installation, an enhanced feature set and simple programming, to quickly meet the needs of end users. Equipped with a delay setting for alarm verification, programmable relay, NAC output and password protection, this solution provides a wide variety of choices for system installers to customize deployments to site-specific requirements.

Key features

  • DISPLAY 16 X 2 Character LCDl
  • Sounder Output 24VDC, operating 0.5A/circuit
  • Aux Output 24VDC
  • Feature Detection Circuits 2/4 Zones (Per zone 20 Detectors + 5 MCPs)
  • Panel keys Silence Buzzer/Alarm; Reset; Navigation keys (Left, Right, Down, Menu/Ok)
  • Zone wise Fire, Fault, Disable indication
  • Supports standby power 24V DC (2 no's of 12V, 7Ah Lead Acid Battery)
  • Certification-CE
ELECTRICAL SPECIFICATIONS
  • Operating Voltage

    230VAC, 50 Hz Alarm Load (Sounder), 0.5Amp (Max) NAC Output, 0.5Amp (Max) Device Standby Current: 50 mA Maximum
  • Relative Humidity

    5% to 95% Non-Condensing
  • Recommended Wiring

    1.5 Sq. mm Multicore, Flame Retardant Cable For Zone Wiring (Standard ISI Marked) 1.5 Sq.mm Multicore, Flame Retardant Cable For NAC Wiring (Standard ISI Marked)
  • Operating Temperature

    0°C-49°C/32°F-120°F
  • Detection Circuits

    2 & 4, Zone, Max 2mA
    Per Zone Class B Circuit
  • Battery Capacity

    Standby Batteries: Minimum capacity 2 x 12 V 2.8Ah
    Maximum capacity 2 x 12 V 7 Ah
  • External Outputs

    Sounder Outputs: 18.5 to +28.0 Vdc, 0.5 Amp. (Max)
    Auxiliary Output: 18.5 to +28.0 Vdc, 0.5 Amp. (Max)
Simple And Reliable Fire Alarm Control Panels,
Suited For Small To Medium Sized Buildings

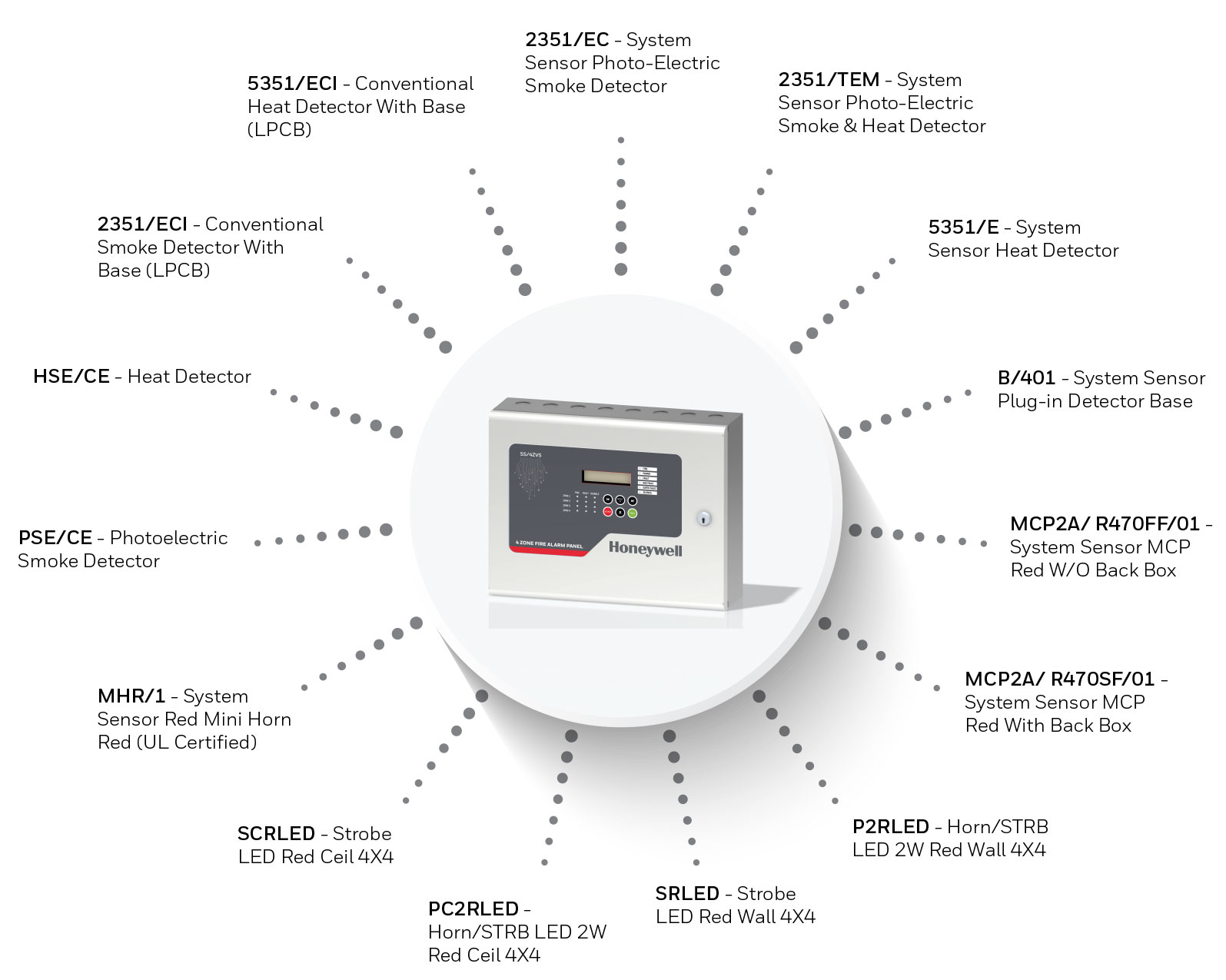

Honeywell Compatible Detectors & Modules

PRODUCT OFFERING

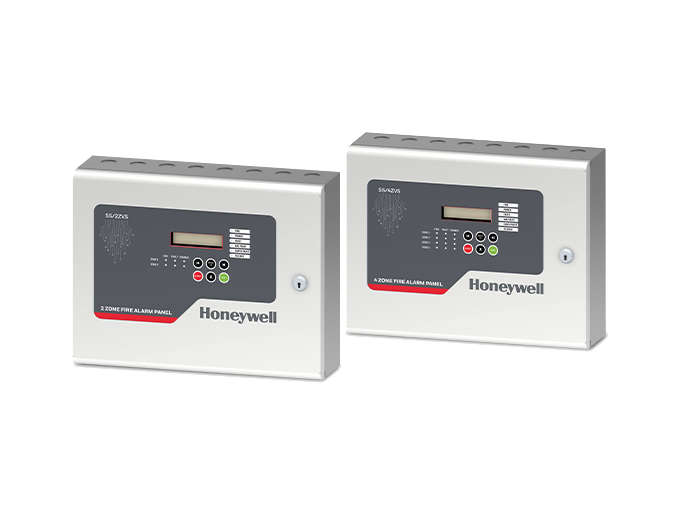

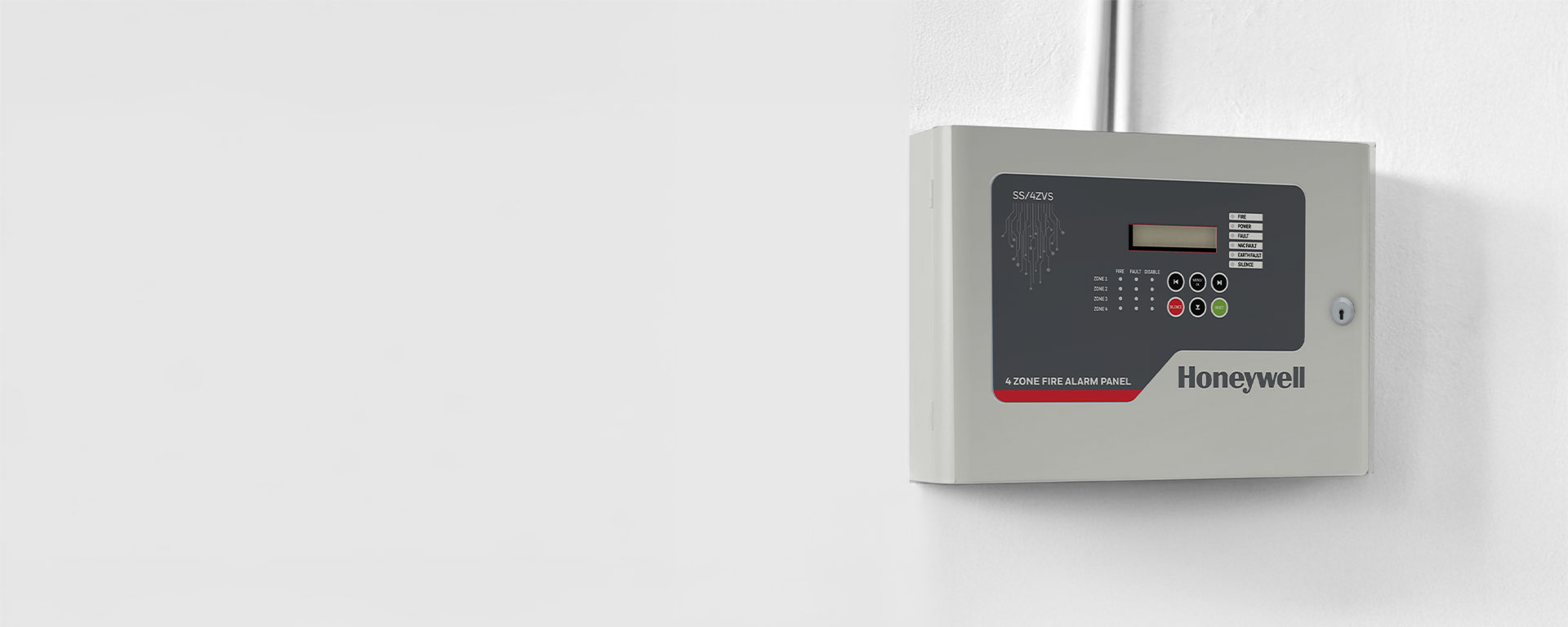

2 & 4 Zone Fire Alarm Control Panel

SS/2ZVS, SS/4ZVS

The 2 & 4 zone Fire Alarm Control Panel is designed for ease of installation and use in small to medium-sized buildings such as commercial buildings, banks, residential complexes, retail units/stores, shops, restaurants, healthcare facilities, public offices, and schools etc.

FEATURES
  • Three Form-C relays (1 Fire, 1 Fault and 1 Programmable 2amps@30 VDC)
  • Display: 16 X 2 Character LCD
  • 1 On-board NACs operating 0.5A/circuit
  • Aux Output: 24VDC
  • Sounder Output: 24VDC
  • Feature Detection Circuits: 2 & 4 Zones (upto 20 Detectors + 5 MCPs)
  • Zone wise Fire, Fault, Disable indication
  • Panel keys: Silence Buzzer/Alarm; Reset; Navigation keys (Left, Right, Down, Menu/Ok)
  • Lamp Test & Walk Test
  • Evacuation
  • Supports Standby Power 24V DC (2 X 12V, 7Ah Lead Acid Batteries)
  • Certification (CE)
  • Event Log-1200 Events
  • Earth Fault Monitoring
One product, many applications
Retail Outlets
Office Spaces
Commercial Buildings
Educational Institutions
Residential Complexes

Easy To Install & Manage, Reliable Fire Detection

Honeywell Conventional Fire Alarm Control Panels offer a highly-capable and reliable solution to deliver advanced fire detection and alarm capabilities for small & medium sites.
