Specialised Smoke Detection
for Spacious Areas
Designed to provide reliable smoke detection for spacious rooms, open areas and high ceilings

REFLECTED-BEAM SMOKE DETECTORS

The right choice for large spaces

Honeywell’s range of reflected beam smoke detectors provide superior fire detection performance over traditional detection systems, particularly in spacious areas. With only one device to install and align, these single-ended optical beam solutions help save both time and money for open-area and high-ceiling applications.

PRODUCT OFFERINGS

Innovative features and powerful technology
These world-class smoke detectors are ideal for areas where other methods of smoke detection are difficult to install and/or maintain.
BEAM1224
BEAM1224S
OSI-R-SS
BEAMSMK
BEAMMMK
BEAMLRK
RTS151
RTS151KEY

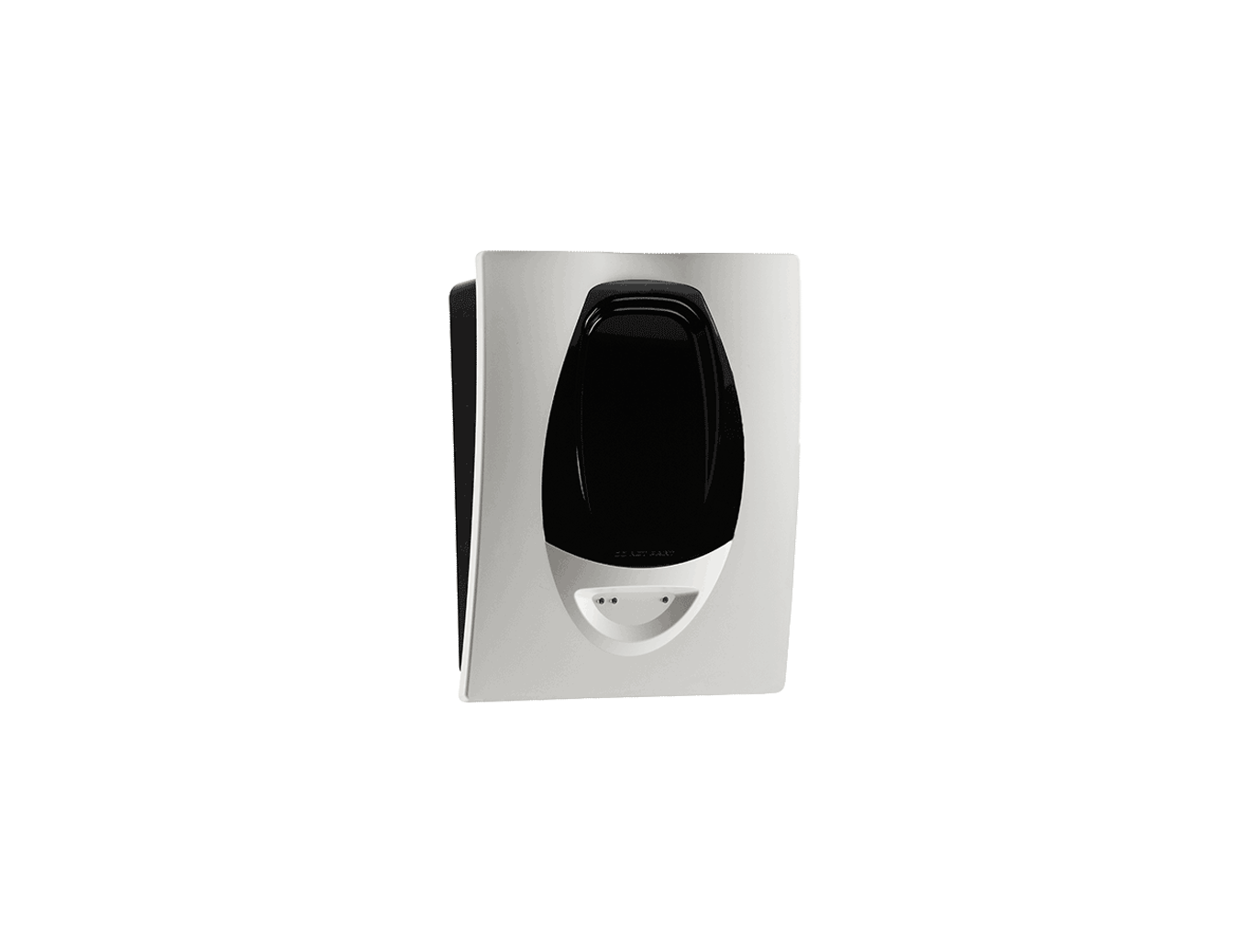

4-WIRE CONVENTIONAL BEAM SMOKE DETECTOR WITH 8” REFLECTOR

The Honeywell System Sensor BEAM1224 smoke detector features a single-ended reflective design, making it easier to install than dual-ended projected beam detectors. Alignment is quickly accomplished via the incorporated optical sight and a two-digit signal strength meter. Another advantage is that the BEAM1224 can operate in temperatures ranging from –22°F to 131°F. This means it can be used in open areas to provide early warning in environments where temperature extremes may exceed the capability of other types of smoke detectors. When one of the two Acclimate settings on the detector is selected, it will automatically adjust its sensitivity using advanced software algorithms to choose the optimum sensitivity for the specific environment.

  • 16- to 328-ft protection range
  • User-friendly alignment procedure
  • 6 user-selectable sensitivity levels: 4 standard sensitivity selections + 2 Acclimate™ settings (adjustable sensitivity)
  • Removable plug-in terminal blocks
  • Digital display for easy alignment
  • Built-in automatic gain control compensates for signal deterioration from dust build-up
  • Heater kits for transmitter/receiver and reflector option
One product, many applications
Warehouse
Atriums
Arenas
Churches
Spacious Rooms
