The Honeywell Inert Suppression System uses a blend of Nitrogen, Argon, and Carbon Dioxide to protect installations from fire damage. It offers the choice of a Stand-Alone system – which protects a single space – as well as Multi-Zone suppression, using a directional valve system with a shared cylinder bank.
The Honeywell Inert Suppression System offers a self-activating defence suitable for class A, B, and C type fires. It responds to an initial alarm by delaying activation through pre-programmed timer delay from Fire Alarm Panel. Post Initial delay the suppression agent is discharged using solenoid for activation. the suppression agent is discharged using a solenoid with electrical activation. Fire is extinguished by reducing oxygen levels from 20.9% to between 10%-14.2% by reducing oxygen levels from 20.9 % to between 10 to 14.2%.

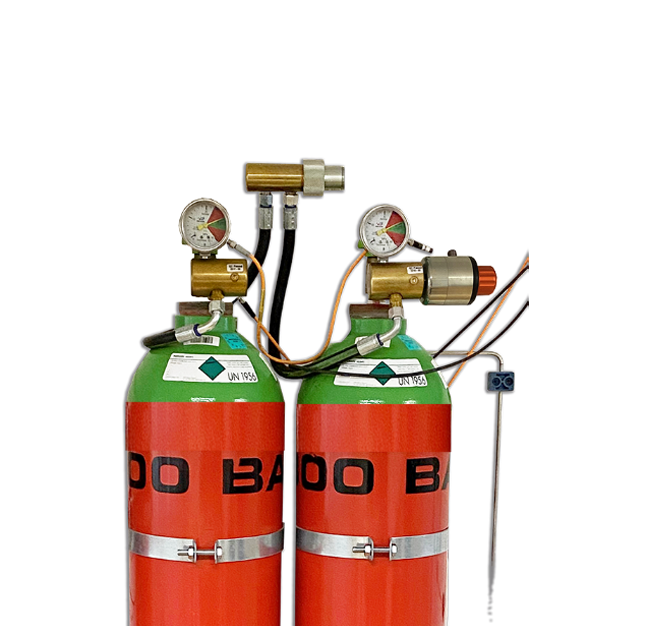

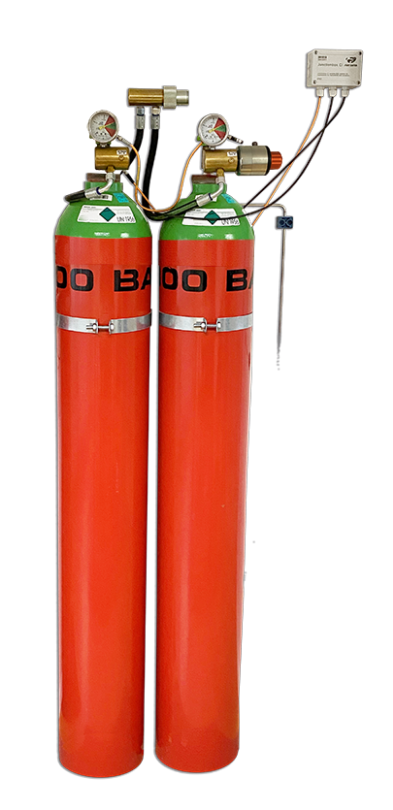

Includes a cylinder with a handwheel valve, a discharge release valve with pressure gauge, a solenoid with electrical activation, as well as hoses, manifold, nozzles and pressure relief dampers.

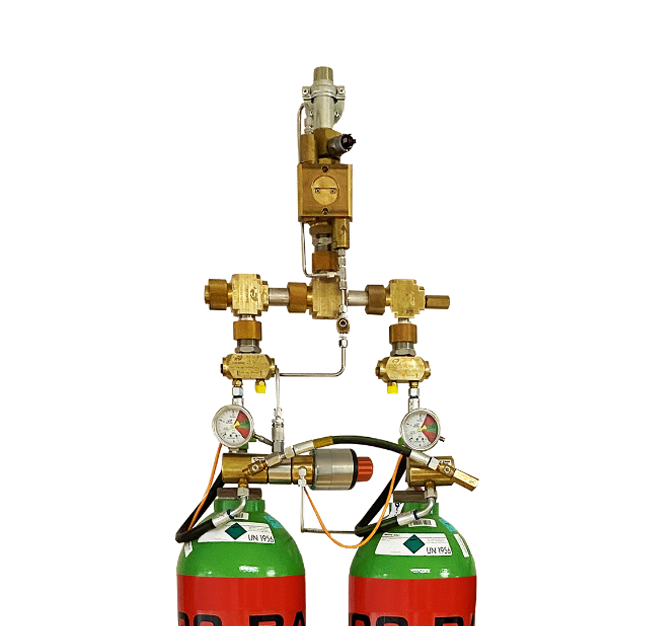

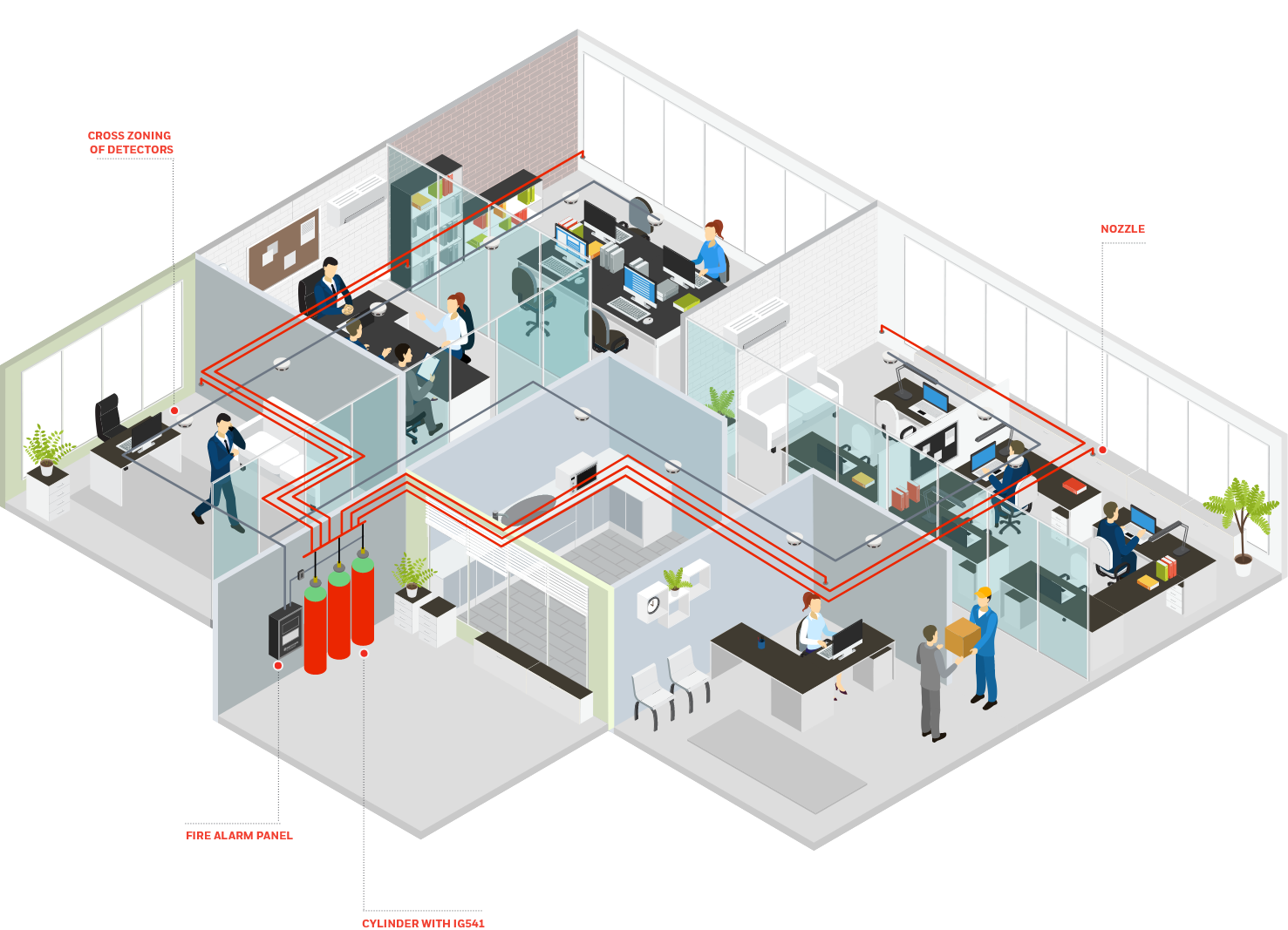

In addition to the components that are part of the Stand-Alone System, the Multi-Zone Suppression System includes of a series of zone valves and a starter kit, which direct the IG 541 suppression agent to the section of the protected area where the fire has been detected.
The IG 541 suppression agent consists of 52% Nitrogen, 40% Argon, and 8% CO2. Once ventilation has ceased in the affected area, this blend reduces the Oxygen Content from air , hence dousing fire completely. Being a mix of gases that are present in the air around us, IG 541 is completely safe for occupants and the environment, as well as being a sustainable solution.
A UL certification ensures that a product has been tested as being safe for humans and conforms strictly to industry standards. The UL certificate confirms that wiring and devices can handle the amount of current they claim to be able to.
An FM Approval is issued to products that pass a five-step approval process. The globally acknowledged FM mark signifies that the product has been tested to ensure property loss prevention and to perform as expected.
The Honeywell Inert Suppression System offers a self-activating and end-to-end defence against fire damage – suitable for class A, B, and C type fires; while ensuring that the suppression agent leaves the protected space in a state that is completely harmless to humans and the environment.
