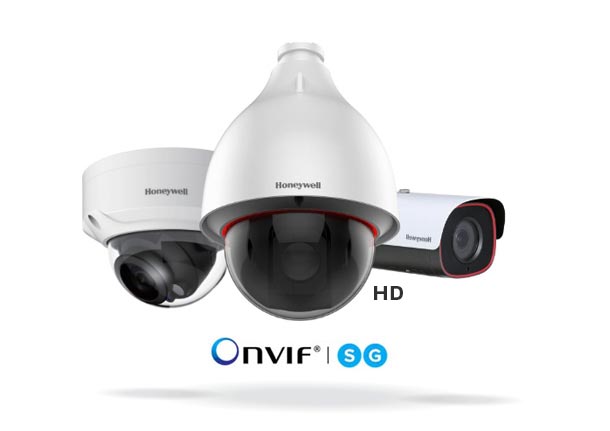

High-res range of multi-sensor, dome, bullet, box, fisheye and PTZ cameras suitable for many types of security installations

equIP® SERIES IP CAMERAS

Honeywell’s equIP® IP cameras offers incomparable picture clarity, hassle-free flexible system  integration and secure data transmission, this range of multi-sensor, dome (indoor/outdoor), micro dome, bullet, box, fisheye and PTZ cameras provide flexible solutions for multiple applications.  The simplified user interface with ONVIF integration to recording devices with new technology makes  checking the status of your system faster and easier.  Designed to meet your customer’s security needs,  Honeywell’s equIP® cameras along with MAXPRO NVRs integrate to Honeywell and third party products for a complete, fully integrated IP solution.

Product Offerings

Powerful feature set for unstinting surveillance performance
Each IP camera in the equIP® range offers a feature-packed and affordable surveillance solution for any type of security installation.

HM4L8GR1

Network TDN 8 MP IR Rugged Multi-Imager Dome Camera

Honeywell’s HM4L8GR1 dome and HMBL8GR1 bullet cameras are part of the equIP® range of high-performance multi-imager/multi-sensor cameras. Equipped with 4 2MP CMOS image sensors and powered by features like Digital Noise Reduction, True Day/Night function and Digital WDR, these cameras provide excellent surveillance output even in low-light or night time conditions.

FEATURES
  • Digital WDR technology for glare-free images
  • True Day/Night provides vivid colour images by day and clear black-and-white images at night using a removable IR cut filter
  • Excellent low-light performance with 3D noise reduction
  • H.265, H.264 and MJPEG codec, triple stream support
  • Specifications
  • Ordering Info
  • Resources
Model No. HM4L8GR1
OPERATIONAL
VIDEO STANDARD NTSC/PAL
SCANNING SYSTEM Progressive scan
IMAGE SENSOR Four 1/1.9 2 MP progressive CMOS
NUMBER OF PIXELS (H × V) 4096 × 1800
MINIMUM ILLUMINATION 0.006 lux color @ F2.2, 0 lux B/W (IR LEDs on) @ F2.2
S/N RATIO ≥ 50 dB
ELECTRONIC SHUTTER SPEED Auto, Manual, 1/3 – 1/100,000 s
IR DISTANCE Up to 98 ft. (30 m), depending on scene reflectance
NUMBER OF IR LEDS 6
DAY/NIGHT Auto (ICR)/Color/BW
BACKLIGHT COMPENSATION BLC/HLC/DWDR
WHITE BALANCE Auto/Natural/Street Lamp/Outdoor/Manual
GAIN CONTROL Auto/Manual
NOISE REDUCTION 3DNR
PRIVACY MASKING Up to 4 configurable areas
LENS Four 5.0 mm, M12, fixed lenses
ANGLE OF VIEW Horizontal: 180°; Vertical: 80°
AUDIO/TWO-WAY Line In/Out
ALARM INPUT/OUTPUT 2/2
ETHERNET RJ-45 (100/1000Base-T)
START-UP TIME* 60 seconds
IP SPECIFICATIONS
VIDEO COMPRESSION H.265/H.264/MJPEG; Bit rate control (CBR and VBR)
RESOLUTION 4096×1800/3840×1680/2880×1264/1024×452/
1920×832/1280×560
FRAME RATE:
MAIN STREAM
SUB STREAM THIRD
STREAM
4096×1800 / 3840×1680 / 2880×1264 at 1–25 fps,
1024×452 up to 25/30 fps,
1920×832 / 1280×560 up to 25/30 fps
AUDIO COMPRESSION G.711a/G.711Mu/AAC/G.726
AUDIO STREAM Full duplex, simplex
SUPPORTED WEB BROWSERS Internet Explorer® (11.0+), Firefox, Chrome
SUPPORTED OS Windows® 7 32-bit/64-bit
COMPATIBILITY ONVIF Profile S, G and Q
LANGUAGES SUPPORTED English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish
SUPPORTED PROTOCOLS** IPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP v2c/v3, Bonjour, DNS, DDNS, IEEE 802.1x,
QoS, NTP, IP Filter, Multicast, ONVIF
SECURITY User account and password protection HTTPS, IP Filter, IEEE 802.1x, Digest authentication, User access log, TLS1.2, AES-256, SSH/Telnet closed, FTP disabled, PCI-DSS compliance, Hardware chipset for private key
MAXIMUM USERS ACCESS 20 users
IP SPECIFICATIONS (CON'T)
EVENT No SD card, SD card error, SD card capacity warning, Network disconnection, IP address conflict, Illegal access, Face detection, Audio detection, Video tampering, Motion detection
EVENT NOTIFICATION Record (SD card and FTP), Relay output, Email, Snapshot
VIDEO ANALYTICS Embedded Analytics: Face detection, Audio detection, Video tampering, Motion detection
MICRO SD Up to 128 GB microSDHC card, Class 10 (not included)
MICRO SD FUNCTION • Event trigger recording
• Continuous and scheduled recording
• Automatic recording when network fails
ELECTRICAL
POWER SUPPLY PoE+ (802.3at) Class 4, 24 VAC
AC FREQUENCY 50/60 Hz
POWER CONSUMPTION 25 W max. (IR LEDs on)
MECHANICAL
DIMENSIONS 8.3 × 7.9 (212.0 mm × 201.6 mm)
PRODUCT WEIGHT 7.9 lb. (3.6 kg)
PACKAGE WEIGHT 10.1 lb. (4.6 kg)
OPTIMUM INSTALLATION DISTANCE > 16.4 ft. (5.0 m), depending on the installation angle and the object size
CONSTRUCTION Die-cast aluminum housing with powder coat
CONSTRUCTION COLOR RAL 9003 (White)
ENVIRONMENTAL
OPERATING TEMPERATURE –40°F to 140°F (–40°C to 60°C)
RELATIVE HUMIDITY Less than 95%, non-condensing
INGRESS PROTECTION IP67
IMPACT RESISTANCE IK10
REGULATORY
EMISSIONS EN55032, ANSI C63.4-2014, ICE 003 Rev6, AS/NZ CISPR 32:2013
IMMUNITY EN50130-4
SAFETY EU: EN60950-1, EN60950-22 North America UL listed to UL/CSA 60950-1, 60950-22
ROHS EN50581
HONEYWELL DEVICE INTEGRATION
MAXPRO® NVR FAMILY Entry to Enterprise Level Network Video Recorders (version 4.50 and greater)
MAXPRO® VMS FAMILY Entry to Enterprise Level Network Video VMS (version R450 and greater)
DVM DVM R600.1 SP1
HUS HUS 5.1
Model No. HM4L8GR1
HM4L8GR1 Network TDN Superior HD IR Rugged Multi-Imager Dome Camera, Four 1/1.9 CMOS, 8 MP, Four 5.0 mm/M12 Fixed, PoE+, H.265
Documentation Size Release Date File Type Download
Datasheet 987.26 KB 27.11.2020 pdf Download
