Reliable Surveillance
with Crisp Output -
Even Outdoors!
The latest addition to Honeywell’s range of IP CCTV surveillance cameras that provides great performance for outdoor applications

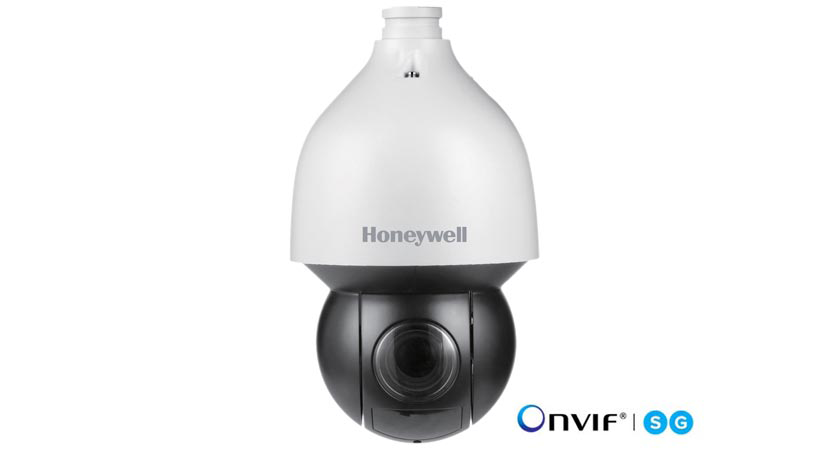

HDZI SERIES PTZ

For large enterprises looking for an outdoor CCTV surveillance solution, the HDZI SERIES PTZ from Honeywell is a perfect choice. This high-definition, Dual-ICR Day/Night WDR device provides crisp output with up to 4 million effective pixels and 45X optical zoom, delivering excellent results for outdoor surveillance applications.

PRODUCT OFFERING

4MP 45X Zoom WDR Network Outdoor IR PTZ Camera
Honeywell’s HDZI SERIES PTZ offers superior image quality, flexibility as well as ease of installation and use – simplifying life for enterprises who worry about securing their outdoor premises.

HDZI454DIK

This high performance outdoor PTZ camera delivers reliable surveillance performance when placed in a strategic spot. It fits well into its surroundings and comes with a wall mount.

FEATURES
  • Full HD 1080p resolution, 25/30 fps image with a 4 MP sensor
  • WDR 120 dB for glare-free images
  • Excellent low-light performance with 3D noise reduction
  • 45X optical zoom lens with 360° continuous rotation to clearly view the target area
  • Specifications
  • Ordering Info
  • Resources
Model No. HDZI454DIK
CAMERA
VIDEO STANDARD PAL/NTSC
SCANNING SYSTEM Progressive scan
IMAGE SENSOR 1/2.8 CMOS
NUMBER OF PIXELS (H × V) 2560(H) x 1440(V), 4MP
PIXEL COUNTER On/Off
TYPE PTZ
ASPECT RATIO 16:9
MINIMUM ILLUMINATION Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6;
0Lux@F1.6 (IR on)
S/N RATIO >55 dB
LENS 4mm-180mm
OPTICAL ZOOM 45x
DIGITAL ZOOM 16x
MIN. WORKING DISTANCE 1-3m(Wide-Tele)
MAX APERTURE F1.5 ~ F4.0
FOCUS Auto/ Semi-automatic/ Manual
FIELD OF VIEW H: 70.3° - 1.8°
V: 37° - 1°
D: 69.3° - 2°
IRIS DC IRIS/ Auto
IRIS Holzer aperture
SHUTTER SPEED 1/1s~1/100000s
IR DISTANCE Upto 200m (658ft), depending on reflectance
DAY& NIGHT Dual-ICR
HLC On/Off
SCENE ADAPTIVE CONTROL
(SAC)
AUTO WDR
On/Off
Yes
WHITE BALANCE Auto Tracking White Balance (ATW), Auto White Control (Auto), Sodium Lamp, Street Lamp, Natural, Indoor, Outdoor, Manual
WHITE BALANCE RANGE 1500K - 10000K
EXPOSURE MODE Auto/Aperture Priority/Shutter Priority/Gain Priority/Manual
WIDE DYNAMIC RANGE 120dB
GAIN CONTROL Auto/Manual
NOISE REDUCTION 3D DNR
MOTION DETECTION Off/ On / By Schedule / 8 Zones
PRIVACY ZONE 24 Dynamic Privacy Mask Programmable; Optional Multiple Colors
REGION OF INTEREST 8 Dynamic Areas for Main Stream
CROPPING On/Off
ELECTRONIC IMAGE STABILIZATION On/Off
SMART DEFOG On/Off
PICTURE OVERLAY 128x128,, BMP 16k, Zone Configurable
ON-SCREEN DISPLAY (OSD) Preset/ Temperature/ Coordinates / Zoom/ Pattern/ Text Overlay (support max 5*45 characters).
Font Size: Small/ Medium/ Large
Font Color : Customizable
OPERATIONAL
PAN RANGE 360° Endless
PAN SPEED : MANUAL Pan Manual Speed: 0.1°/s~300°/s
PAN SPEED : PRESET Pan Preset Speed: 400°/s
PRESET ACCURACY ±0.1°
TILT RANGE -16°-90° (Auto Flip )
TILT SPEED : MANUAL Tilt Manual Speed: 0.1°/s~200°/s
TILT SPEED : PRESET Tilt Preset Speed: 300°/s
AUTO TRACKING Supported
3D POSITION Yes
PRESETS 500
AUTO PAN Yes
SCAN 8
TOURS 8
PATTERN 8
POWER LOSS RECOVERY Auto Resume
GUARD ACTION Preset/ Tour/ Pattern/ Scan
PTZ POSITION DISPLAY Yes
FREEZE FRAME Yes
ADAPTIVE / SMART IR Yes
IR ANGLE Adjustable by Zoom
IMAGE ROTATION Auto - Flip
IP SPECIFICATIONS
VIDEO COMPRESSION H.265+/H.265/H.264+/H.264H/ H.264M/H.264B/MJPEG
VIDEO ENCODING TYPE High Profile/Main Profile/Base Line Profile
VIDEO BIT RATE 32Kbps~16Mbps
BIT RATE CONTROL CBR and VBR
AUDIO COMPRESSION G.711a/G.711Mu/AAC/MPEG2-Layer2/G.726/ G.722.1/G.729/G.723
AUDIO STREAM Full duplex, simplex
AUDIO BIT RATE 8K~48Kbps
FRAME RATE Frame rate is configurable from 1- 25/30fps in each resolution
RESOLUTION 4M (2560x1440)
3M (2048x1536)
1080P(1920x1080)
1.3M(1280× 960)
720P(1280× 720)
D1(704× 576/704× 480) VGA(640x480)
CIF(352× 288/352× 240)
VIDEO STREAMS Primary Stream : 4MP (1~25/30fps) Secondary Stream : D1/CIF(1 ~ 25/30fps) Third Stream : 1080P 25/30fps
IMAGE SETTINGS 3D Digital Noise Reduction (On/off) Color, Brightness, Sharpness, Contrast, White Balance, Exposure Control, Exposure Zones, Backlight Compensation, Defog, Fine Tuning Of Behavior At Low Light, Rotation
LOG FUNCTION Login/Logout, Operator Actions, SD Card Error, SC Card Memory Full, IP Change, Tamper Alarm, Masking, Motion Detection, Online/Offline
BROWSER Internet Explorer 11/Google Chrome/Firefox
SNAPSHOT Full resolution
SITUATIONAL AWARENESS AND PTZ STREAM CONFIGURATION Viewing: analytic sees motion, Digital PTZ Recording: whole area, set zones of interest (ROI)
NETWORK STORAGE Yes
NTP Yes
MICRO SD FUNCTION •    Event trigger recording
•   Continuous and scheduled recording
•   Automatic recording when network fails
LOCAL RECORDING Snapshot, video clip on alarm, video loop
ALARM TRIGGER Motion Detection/IP Conflict/MAC Conflict /Mask Alarm/Memory full/ Memory Exception
EVENT NOTIFICATION Record (SD card and FTP), Relay output, Email, Snapshot
PROTOCOLS HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;NFS; FTP; NTP; DHCP; DNS; DDNS; PPPOE;
IPv4/v6; QoS;UPnP;NTP; Bonjour; 802.1x;
Unicast ; Multicast; ICMP;SNMP
USER PERMISSION 2 Level (admin and user, permission configurable)
REMOTE CONNECTION / MAX USERS 20 Users Access simultaneously
MULTICAST Unlimited users on H.264/H.265
SYSTEM COMPATIBILITY ONVIF Profile S, G and Q
AUDIO INPUT 1-ch Line in Interface Line Input 2-2.4V [p-p]; impedance 1KΩ, ±10%
AUDIO OUTPUT 1-ch, Line level, Impendance: 600Ω
ALARM INPUT 2-ch
ALARM OUTPUT 1-ch
ON-BOARD STORAGE MicroSD Card Slot support up 256GB
EXTERNAL STORAGE SUPPORT NAS, FTP
EXTENSION Reset Button
LANGUAGE English, Spanish, Korean, Italian, German, Portuguese, Czech, Dutch, Arabic, Russian, Polish, French, Simplified Chinese
ELECTRICAL
NETWORK/ETHERNET RJ-45 (10/100 Base-T)
POWER SUPPLY AC 24V ± 20% ; 3A, PoE+ (802.3at)
POWER CONSUMPTION 12W, 21W (IR on,Heater on)
AUXILLARY POWER SUPPLY OUTPUT 12W
CIRCUIT PROTECTION TVS 6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V)
ENVIRONMENTAL
INGRESS PROTECTION IP67
OPERATING TEMPERATURE -40°C-70°C
OPERATING HUMIDITY RH 0% to 95% (non-condensing), Upto
100% (Condensing)
HEATER Yes
FAN Yes
MECHANICAL
DIMENSIONS Φ190.4(mm) x 332( mm)
WEIGHT Net Weight 4.7kg(10.36lb) Gross Weight 7.9kg(17.42lb)
SECURITY
SECURITY ACCESS Multiple user access levels with password protection IP filtering, HTTPS, IEEE 802.1x
CYBERSECURITY CHIPSET Available
Model No. HDZI454DIK
HDZI454DIK Network TDN IR PTZ Dome, 4MP Resolution, 45x Zoom, WDR, H.265 , NTSC/PAL, IK10, micro SD Card Compatible (Supports up to 128 GB cards, card not included) (Wall Mount Included)
Documentation Size Release Date File Type Download
Datasheet 2408.21 KB 22.12.2020 pdf Download
