User responsive
lighting for enhanced
sustainability
A new era of energy efficient buildings, with sensor automated illumination

MOTION SENSORS

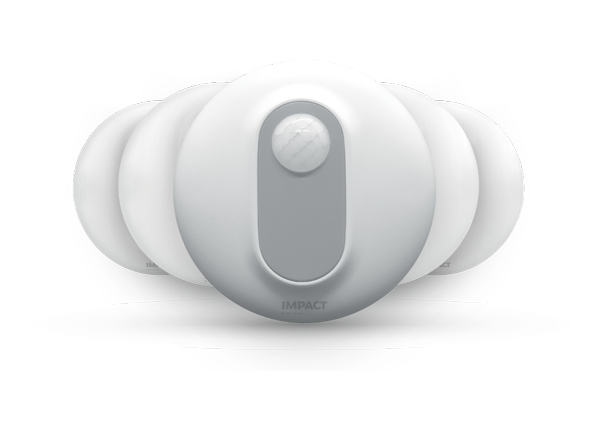

IMPACT series motion sensors leverage passive infrared technology, to ensure spaces are only lit when they’re occupied - reducing energy consumption by as much as 60%. Requiring minimum wiring and available in both battery and externally powered variants, the series includes devices with diverse feature sets, to enable the perfect site-specific solution.









Key features

A fully-featured solution that reconciles sustainability and maximum user comfort

Robust quality – backed by
Honeywell
standards
Retro-fit – no
need for a major
cabling change
Energy savings – up to
60%
Plug and play – light
and motion detection
with Pa-Pir sensor

PRODUCT OFFERINGS

Features to fit every application
The IMPACT series comes in several feature-rich configurations, which have been optimized for real-world application scenarios.

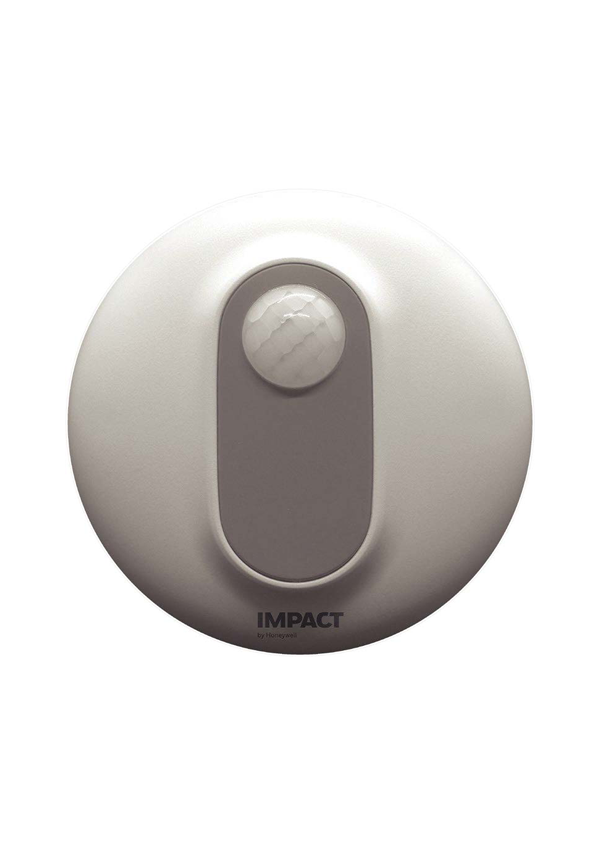

ESS 100

w/no built-in LED

The ESS 100 motion sensor integrates with external lights, to turn them on when it detects an occupant. Using Pa-PIR passive infrared sensor technology, it can detect both motion and body temperature, making it the ideal solution for transforming ordinary residential, commercial, and office spaces, into user-interactive environments. This variant is the solution of choice for built environments that already have an array of lighting solutions embedded in them.

FEATURES
  • Retro-fit – no need for a major cabling change
  • Plug and play – light and motion detection with Pa-Pir sensor
  • Energy savings up to 60%
  • Robust quality – backed by Honeywell standards
  • Specifications
  • Ordering Info
  • Resources
Model No. ESS 100
Power Rating ~230 V AC/50-60Hz
Detection Range 92°(Vertical)/102°(Horizontal)
Detection Distance Max.12m
Detection Speed 0.6 ~ 1.5m/s
Average Load Max.1150W (~220V AC )
Environment Temperature -20°C ~ +40°C
Environment Humidity Max. 93%
Ambient Light <3-2000 Lux (Adjustable)
Time-Delay Min. 15 Seconds ~ Max. 9 Minutes  (Adjustable)
Installation Height 2m ~ 6m
Dimensions 50 * 100 * 100  (in MM)
Weight 127g ms
Lumens NA (Depend Upon external Light used)
No Order Info Available
Documentation Size Release Date File Type Download
Datasheet 3557.61 KB 15.03.2022 pdf Download
