Performance Series
IP Camera
The Performance Series of IP cameras provides affordable video surveillance solutions to meet a wide range of everyday security applications.

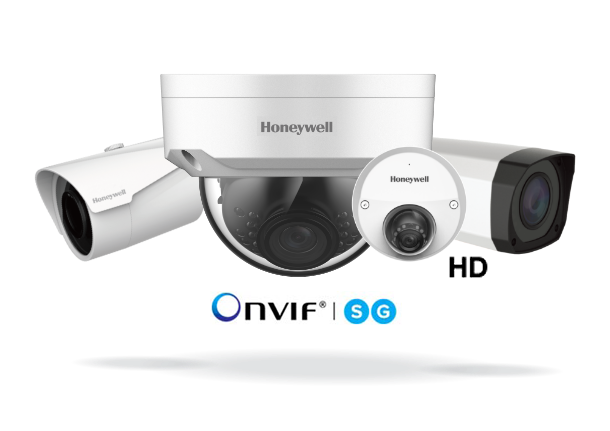

Performance Series IP Camera

With the Performance Series range of IP cameras, Honeywell continues to take quality and trustworthiness in surveillance devices to the next level. Offering incomparable glare-free image quality, vivid color reproduction, superlative low-light performance and secure data transmission, these cameras are unmatched in flexibility and scalability.

PRODUCT OFFERINGS

Feature loaded cameras for various security situations
Easy to install and use, each Performance Series camera offers multiple mounting, lens and zoom options for flexible, scalable performance, regardless of the use case. Choose from a broad product range that includes global favourites like dome, eyeball and bullet cameras – perfect for applications that require highly-detailed image output for powerful surveillance outcomes.

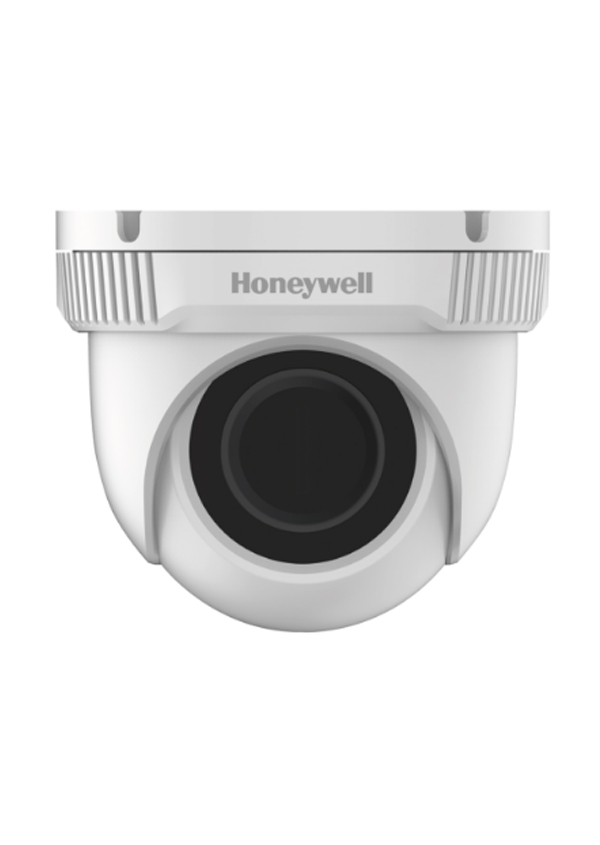

HED2PER3

TDN 1080p IR ball camera with 16X digital zoom

With features like Smart IR technology, the HED2PER3 ball camera provides excellent picture clarity with high resolution at minimal bandwidth even in low-light scenarios. It also offers 3D DNR noise reduction as well as privacy masking and motion detection for up to 4 configurable zones.

FEATURES
  • High picture quality for surveillance applications that require high details
  • True Day/Night for vivid colour images by day and clear black-and-white images at night
  • ONVIF Profile S and G compliant
  • Plug-and-play installation with Honeywell Performance Series NVRs
  • Angle of view: 110°/83° (H), 56°/44° (V)
  • Specifications
  • Ordering Info
  • Resources
Model No. HED2PER3
OPERATIONAL
VIDEO STANDARD NTSC/PAL
SCANNING SYSTEM Progressive scan
IMAGE SENSOR 1/3” 2MP CMOS
NUMBER OF PIXELS (H × V) 1920 × 1080
MINIMUM ILLUMINATION 0.08 lux color @ F2.0 (Color, 1/3s, 30 IRE), 0 lux B/W with IR LEDs on @ F2.0
S/N RATIO > 45 dB
ELECTRONIC SHUTTER SPEED 1/3(4) – 1/100,000 s
IR DISTANCE Upto 30m, , depending on scene reflectance
SMART IR Auto/Manual
DAY/NIGHT Auto (ICR)/Color/BW
BACKLIGHT COMPENSATION BLC/HLC/DWDR
WHITE BALANCE Auto/Natural/Street Lamp/Outdoor/Manual
GAIN CONTROL Auto/Manual
NOISE REDUCTION 3D DNR
PRIVACY MASKING Up to 4 configurable zones
MOTION DETECTION Up to 4 configurable zones
REGION OF INTEREST Up to 4 configurable zones
DIGITAL ZOOM 16x
LENS 2.8 mm, fixed, F2.0
ANGLE OF VIEW 110°/83° (H), 56°/44° (V)
VIDEO
VIDEO COMPRESSION H.265+/H.265/H.264+/H.264
RESOLUTION 1080p (1920×1080), SXGA (1280×1024),
1.3 MP (1280×960), 720p (1280×720), D1 (704×576/704×480), VGA (640×480), CIF
(352×288/352×240)
FRAME RATE 2 MP at 1 – 25/30fps D1/CIF at 1 – 25/30fps
BIT RATE CONTROL CBR/VBR
BIT RATE H.265: 12K – 6400 Kbps H.264: 32K – 10240 Kbps
NETWORK
ETHERNET RJ-45 (10/100BASE-T)
SUPPORTED WEB BROWSERS Internet Explorer (11.0+)
SUPPORTED OS Windows 7 32-bit
PROTOCOLS IPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, FTP, SMTP, DHCP, PPPoE, UPnP, SNMP v2/v3, Bonjour, DNS, DDNS, IEEE 802.1X, QoS, NTP
INTEROPERABILITY ONVIF Profile S
MAXIMUM USER ACCESS 20 users
SECURITY User account and password protection, HTTPS, IP filter, IEEE 802.1X, digest authentication, user access log, TLS1.2, AES-256, SSH/Telnet closed, FTP disabled
EVENT Network disconnection, IP address conflict, illegal access, video tampering, motion detection
EVENT NOTIFICATION Record (NAS and FTP), relay output, email, snapshot
ELECTRICAL
POWER SUPPLY PoE (802.3af) Class 0, 12 VDC
POWER CONSUMPTION 4.12 W max. (IR LEDs on)
MECHANICAL
DIMENSIONS 3.68” × 3.14” (93.4 mm × 79.7 mm)
PRODUCT WEIGHT 0.51 lb (0.23 kg)
PACKAGE WEIGHT 0.85 lb (0.38 kg)
CONSTRUCTION Die-cast aluminum housing with powder coat
CONSTRUCTION COLOR RAL 9003 (White)
ENVIRONMENTAL
OPERATING TEMPERATURE –22°F to 131°F (–30°C to 55°C)
STORAGE TEMPERATURE –22°F to 131°F (–30°C to 55°C)
RELATIVE HUMIDITY Less than 95%, non-condensing
INGRESS PROTECTION IP66
REGULATORY
EMISSIONS FCC Part 15B, EN 55032
IMMUNITY EN 50130-4
SAFETY EU: EN 60950-1
North America UL listed to UL/CSA 60950-1
ROHS EN 50581
Model No. HED2PER3
HED2PER3 Network TDN 1080p IR Ball Camera, 1/3” CMOS, 2.8 mm Fixed, 12 IR LEDs, PoE, H.265+
Documentation Size Release Date File Type Download
Datasheet 783.39 KB 13.12.2020 pdf Download
