World-class
performance
Range of highly-flexible NVR solutions offering dynamic, accessible monitoring performance plus convenient, flexible storage options

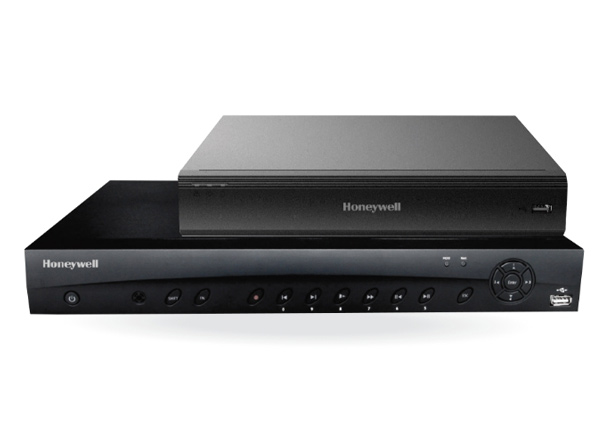

Performance Series NVRs

Introducing Honeywell’s Performance Series Embedded NVRs – a range of affordable, fully-featured NVRs offering Ultra 4k HD video resolution for surveillance viewing and recording. For a scalable, flexible solution that fits almost any surveillance need, choose between 4-, 8-, or 16-channel NVRs, each offering multiple playback options, up to 12 TB of internal storage and hassle-free configuration/installation.

PRODUCT OFFERINGS

Unbeatable featureset for any kind of surveillance need and lighting or condition
Multiple storage options, high recording and networking performance offered by this series of Embedded NVRs make them perfect for a wide range of security applications.

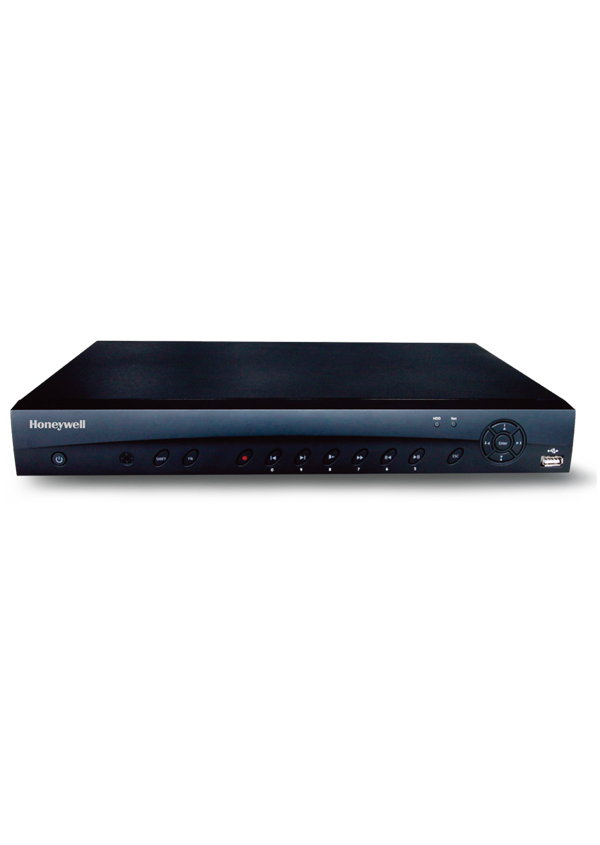

HEN04103

8-channel, 4K Embedded NVR

View 8 channels simultaneously with synchronised real-time playback from any monitor (Smartphone, tablet or laptop) and from anywhere.

FEATURES
  • Up to 12 MP (4K) resolution live view, preview and playback
  • Monitor from anywhere using the mobile app (Apple and Android devices)
  • Quick wizard and PoE support for fast and easy setup
  • Convenient, flexible storage options: internal HDD, external network storage server, USB
  • Specifications
  • Ordering Info
  • Resources
Model No. HEN04103
SYSTEM
MAIN PROCESSOR Quad-core embedded processor
OPERATING SYSTEM Embedded LINUX
VIDEO
INPUTS HEN04103: 4 Channels IP HEN08103: 8 Channels IP
HEN16103: 16 Channels IP
AUDIO
AUDIO INPUT/OUTPUT 1 Channel Input/1 Channel Output, RCA
TWO-WAY COMMUNICATION Supported
DISPLAY
INTERFACE 1 HDMI, 1 VGA
RESOLUTION 3840 × 2160; 1920 × 1080;
1280 × 1024; 1280 × 720;
DISPLAY SPLIT HEN04103: 1/4 HEN08103: 1/4/8/9 HEN16103: 1/4/8/9/16
OSD Camera title; Time; Video loss; Camera lock; Motion detection; Recording
RECORDING
COMPRESSION H.265/H.264
RESOLUTION 8 MP (3840 × 2160); 6 MP (3072 ×2048); 5 MP
(2560 × 1920); 4 MP (2560 × 1440); 3 MP (2048
× 1520); 1080p (1920 × 1080); 720p (1280 × 720);
D1 (704 ×576 / 704 × 480); CIF (352 × 288/ 352 ×
240)
FRAME RATE 1–15 fps (12 MP and 8 MP); 1–25/30 fps (rest of the resolutions)
RECORD BIT RATE 200 Mbps
BIT RATE1 16 kbps ~ 20 Mbps, per channel
RECORDING MODE Schedule (Regular/Continuous, Motion Detection, Alarm); Manual; Stop
RECORDING INTERVAL 1 to 120 minutes (default 60 min)
PRE-EVENT RECORDING INTERVAL 1 to 30 seconds
POST-EVENT RECORDING INTERVAL 10 to 300 seconds
VIDEO DETECTION AND ALARMS
TRIGGER EVENTS Recording; PTZ; Tour; Alarm; Video Push; Email; FTP; Snapshot; Buzzer, Screen Tips
VIDEO DETECTION Motion Detection—MD Zones: 396 (22 × 18); Video Loss; Camera Blank
ALARM INPUT 4 Channels
RELAY OUTPUT 2 Channels
STORAGE
INTERNAL HDD 2 SATA III ports, up to 12 TB
PLAYBACK AND BACKUP
SYNC PLAYBACK 4-channel NVRs:1/4
8-channel NVRs: 1/4/8
16-channel NVRs: 1/4/8/16
DECODING 2-ch in 8 MP@15pfs or 4-ch in 1080P@30fps
SEARCH MODE Time/Date; Alarm; Motion Detection (MD); Exact Search (accurate to a second); Smart Search
PLAYBACK FUNCTION Play; Pause; Stop; Rewind; Fast play; Slow play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup selection; Digital Zoom
BACKUP MODE COMPATIBILITY USB Device; Network
NETWORK
ETHERNET 1 RJ-45 port (10/100/1000 Mbps)
POE HEN04103: 4 ports (802.3af/at)
HEN08103: 8 ports (802.3af/at)
HEN16103: 16 ports (802.3af/at)
SUPPORTED PROTOCOLS² HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP,
DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P
MAXIMUM NUMBER OF USERS 128 users
NETWORK THROUGHPUT 200 Mbps
SMART PHONE COMPATIBILITY iPhone; iPad; Android
AUXILIARY INTERFACE
USB PORTS 2 (1 USB3.0; 1 USB2.0)
RS232 1 port (for PC communications)
ELECTRICAL
POWER SUPPLY HEN041*3: DC48V/2A
HEN081*3/HEN161*3: AC100V ~ 240V, 50 ~ 60 Hz
POWER CONSUMPTION HEN04103: <9W (Without HDD)
HEN08103: <9.6W (Without HDD)
HEN16103: <13.2W (Without HDD)
POE HEN04103: Max 25.5w for single port, 50w in total
HEN08103: Max 25.5w for single port, 80w in total
HEN16103: Max 25.5w for single port, 130w in total
ENVIRONMENTAL
OPERATING TEMPERATURE -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
RELATIVE HUMIDITY 0% to 90% relative humidity
STORAGE TEMPERATURE –4°F to 158°F (–20°C to 70°C),
PHYSICAL
DIMENSIONS HEN04103: 1U, 375mm×281.5mm×56mm (14.8 x 11.1 x2.2) HEN08103/HEN16103: 1U, 375mm×327.5mm×53mm (14.8 x 12.9 x2.1)
WEIGHT (WITHOUT HDD) HEN04103: 1.6kg (3.5 lb) (without HDD)
HEN08103: 2.6kg (5.7lb) (without HDD)
HEN16103: 2.7kg (6.0 lb) (without HDD)
REGULATORY
EMISSIONS HEN04103: FCC Part 15B, EN55032: 2012
+AC: 2013
HEN08103/HEN16103: FCC Part 15B, EN55032: 2012
+AC: 2013, EN61000-3-2: 2014,
EN61000-3-3: 2013
IMMUNITY EN50130-4: 2011
SAFETY EU: EN60950-1
North America UL listed to UL/CSA 60950-1
ROHS EN50581: 2012
Model No. HEN04103
HEN04103 H.265 4CH NVR, 4 POE Ports, 4k, output HDMI/VGA 4k, Ethernet Gigabit, 4 inputs/2 outputs
Documentation Size Release Date File Type Download
Datasheet 1381.76 KB 09.12.2020 pdf Download
