Easy centralised
Provides enhanced flexibility and feature-rich surveillance performance for medium and large-scale applications.

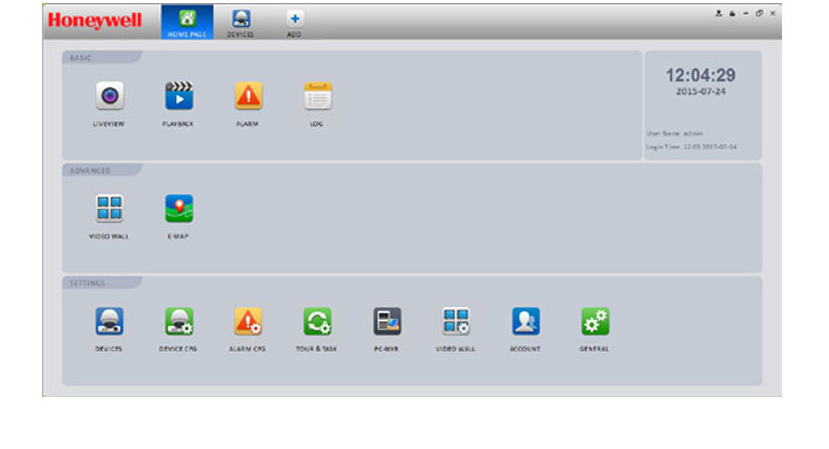

Designed to connect and manage multiple surveillance devices conveniently and efficiently, HDCS is an intelligent, feature-rich central management software from Honeywell. With its user-friendly interface and features like alarm management, inter linkage control, PTZ control and multi- channel/single-screen playback; HDCS enhanced the efficiency of surveillance monitoring and operations.


Efficient, seamless operations, even with multiple levels of administrators

HDCS can be easily deployed for device add-on, configuration, alarm event checking, video live view and recording and E-map central management system. It supports 64 live view windows in one screen as well as 144 live view windows with 4 screens. Powerful yet intuitive, HDCS provides the means to develop a cost-effective, high-performance video system for medium and large scale surveillance needs.

  • Up to 2,000 video channels connection
  • 16-channel local recording
  • Devices management, auto search configuration and status monitoring
  • Video snapshot
  • Supports 64 layouts in E-map
  • Can be viewed with HonView Touch app for Android and iPhone Smartphones
  • Specifications
  • Resources
Model No. Hdcs
Supported DVR HD-DVR-7016, HD-NVR-108/116, HUSS-E2X/E4X/E8X
Max Video Channels Connection 2000 channels
Max Register Device 256 devices
Device Management Auto find, add, delete, device group, reboot, setup
User Management Privileges set based on user and role, according to module & device
Health Report Device status, alarm info, HDD info
Video Display Split 1/4/9/13/16/25/36/49/64
PTZ Control Pan, Tilt, Zoom, Focus, Iris, Preset, Tour, Pattern
Live View Operation Snapshot, record, audio, talk, instant playback, E-PTZ, tour task
Video Playback Local PC (Manual record or alarm record), device itself
Max Channels of Playback 36
Search Type Time, motion detection, alarm, smart search
Local Recording Yes
Sound Management Warning audio by alarm
E-map Support with 64 layouts
E-map format JPEG/BMP
Alarm Type External alarm, video loss, motion detection, camera masking and etc.
Alarm Trigger Trigger recording, PTZ movement, tour, relay output
Minimum PC Requirement
CPU Intel Core2Duo E6750, RAM : 2GB above
Memory 512MB
HDD 80GB above
OS Window XP/Vista/7/8, DirectX 9.0 above
Screen resolution 1024 x 768 or above
Documentation Size Release Date File Type Download
Datasheet 935.84 KB 04.12.2020 pdf Download
One product, many applications
Commercial buildings
Shopping Malls

Protect what’s important to you

We offer you a complete line of security software and solutions. Together, we can find the right type of protection for your building and staff.
